Description

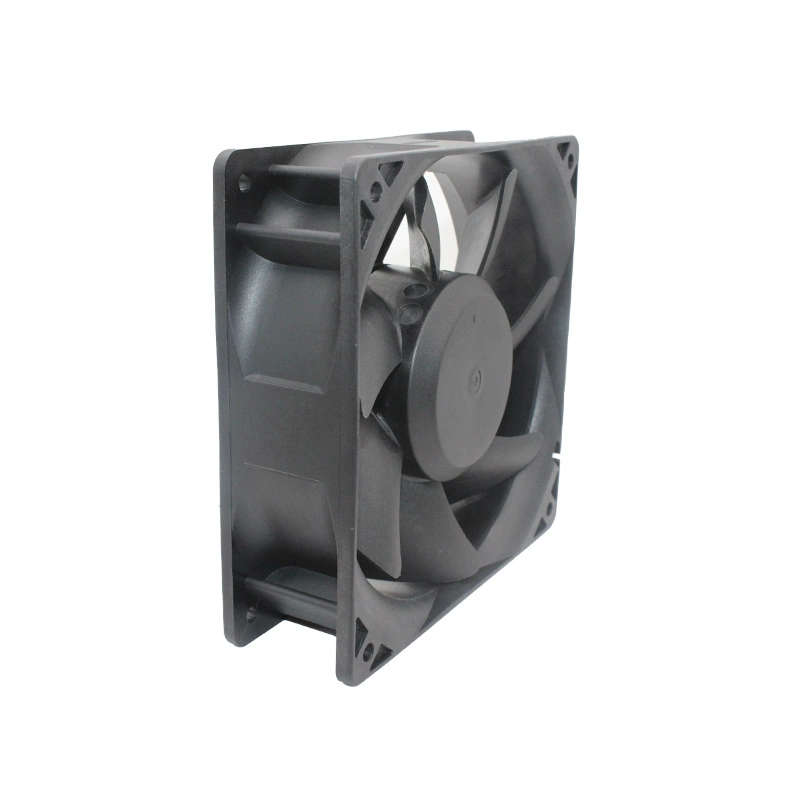

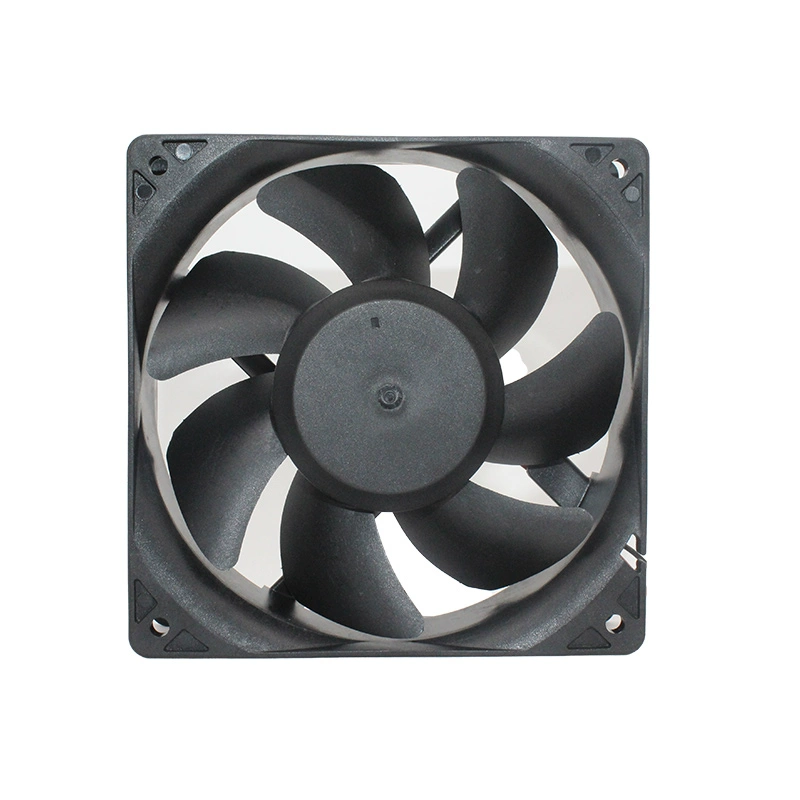

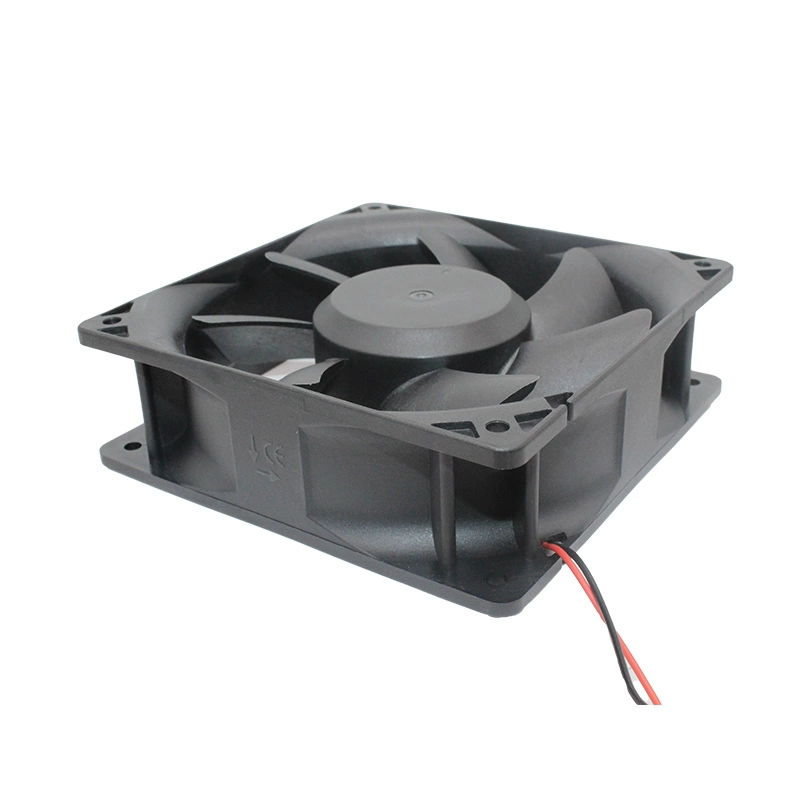

The SUNON PMD2412PMB1-A(2).GN is an exceptionally powerful 24V DC axial cooling fan from SUNON, measuring 120x120x38mm. It operates with a rated power of 18.2W at a current of 0.76A. This fan achieves a very high speed of 4200 RPM, delivering an impressive 190 CFM of airflow and a static pressure of 0.65 inch-H2O. This makes it ideal for critical thermal management in high-demand environments such as servers, power supplies, industrial control cabinets, and inverters, where significant air movement through restrictive pathways is required. Equipped with durable ball bearings, it ensures reliable long-term operation. Its 2-wire configuration simplifies power connection, and it features an auto-restart function for enhanced system reliability, all while operating at a noise level of 54 dBA.
Model Number: PMD2412PMB1-A(2).GN
Manufacturer: SUNON
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 10V to 27.6V DC
Rated Current: 0.76A
Rated Power: 18.2W
Speed: 4200 RPM (±10%)
Airflow: 190 CFM / 322.8 m³/h
Static Pressure: 0.65 inch-H2O / 16.5 mm H2O / 161.9 Pa
Noise Level: 54 dBA
Dimensions: 120mm x 120mm x 38mm
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Operating Temperature: -10°C to 70°C
Frame Material: Polybutylene Terephthalate (PBT) – Thermoplastic
Impeller Material: Polybutylene Terephthalate (PBT) – Thermoplastic
Features: Auto Restart, Brushless DC Motor, Polarity Protection
Approvals: UL, CE, CUR, TUV
