PSD1285PTB1-A (2).B3452.R.GN SUNON 12V DC Axial Fan

Description

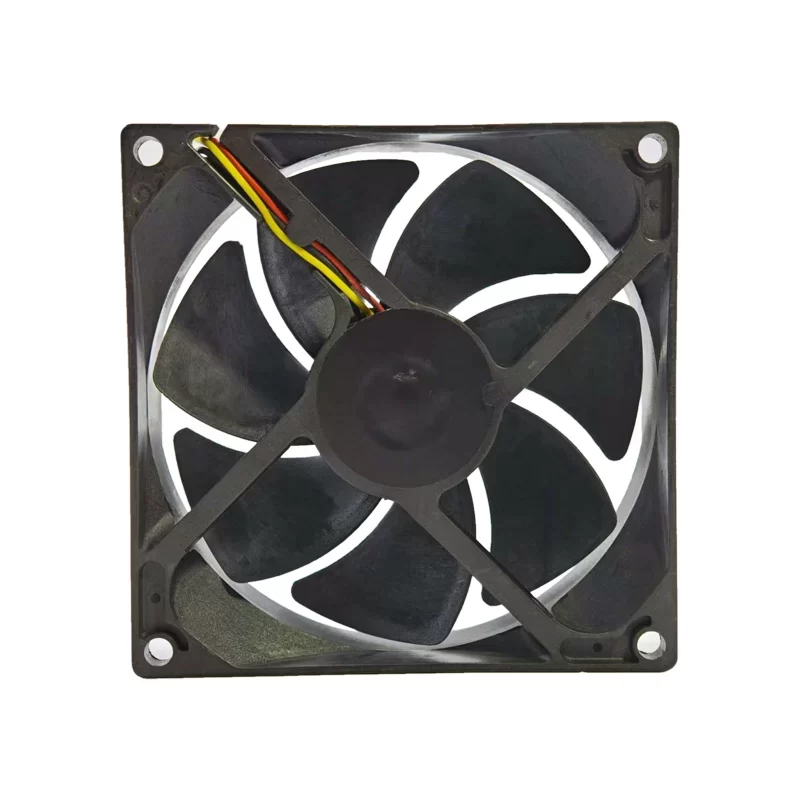

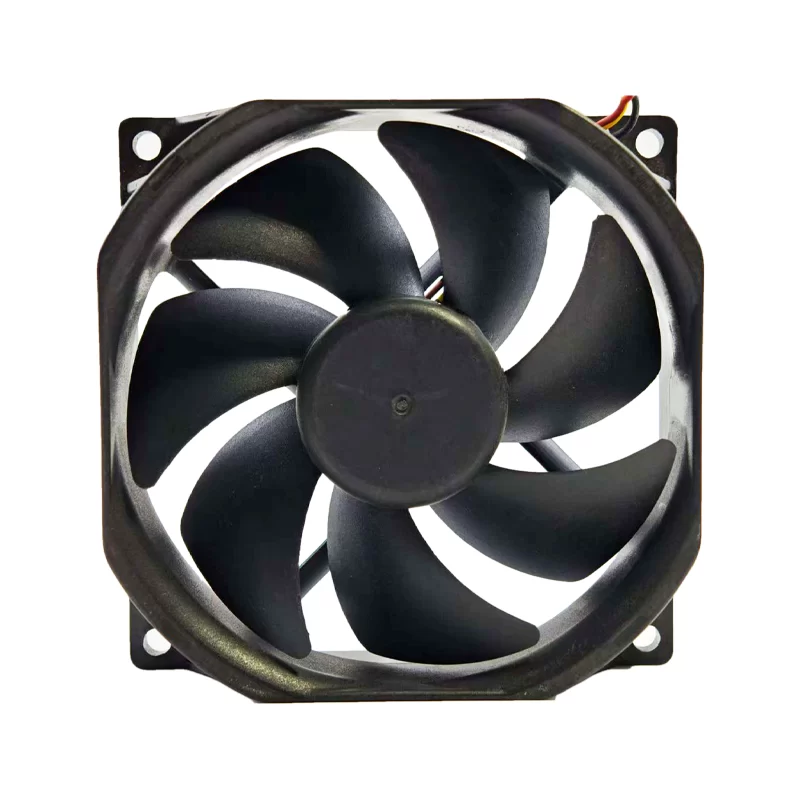

The SUNON PSD1285PTB1-A (2).B3452.R.GN is a DC axial fan with dimensions of 85 x 85 x 25 mm. It operates on 12V DC, with a current draw of 0.31 A and a power consumption of 3.7 W. This fan spins at 3000 RPM, delivering an airflow of 41.5 CFM and a static pressure of 0.16 inch H₂O. The noise level is rated at 32 dB(A). It features a reliable ball bearing and is equipped with three-wire leads for tachometer output. Constructed from plastic, it operates effectively within a temperature range of -10 °C to 70 °C.

PSD1285PTB1-A (2).B3452.R.GN Fan Parameters
Manufacturer: SUNON
Model: PSD1285PTB1-A (2).B3452.R.GN
Fan Type: DC Axial Fan
Dimensions: 85 x 85 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.31 A
Power Consumption: 3.7 W
Airflow: 41.5 CFM
Static Pressure: 0.16 inch H₂O
Speed: 3000 RPM
Noise Level: 32 dB(A)
Bearing Type: Ball Bearing
Termination: 3-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C

Application
The PSD1285PTB1-A (2).B3452.R.GN fan is suitable for applications requiring efficient and reliable cooling, such as in industrial control systems, network equipment, power supplies, and general electronics ventilation.
