Description

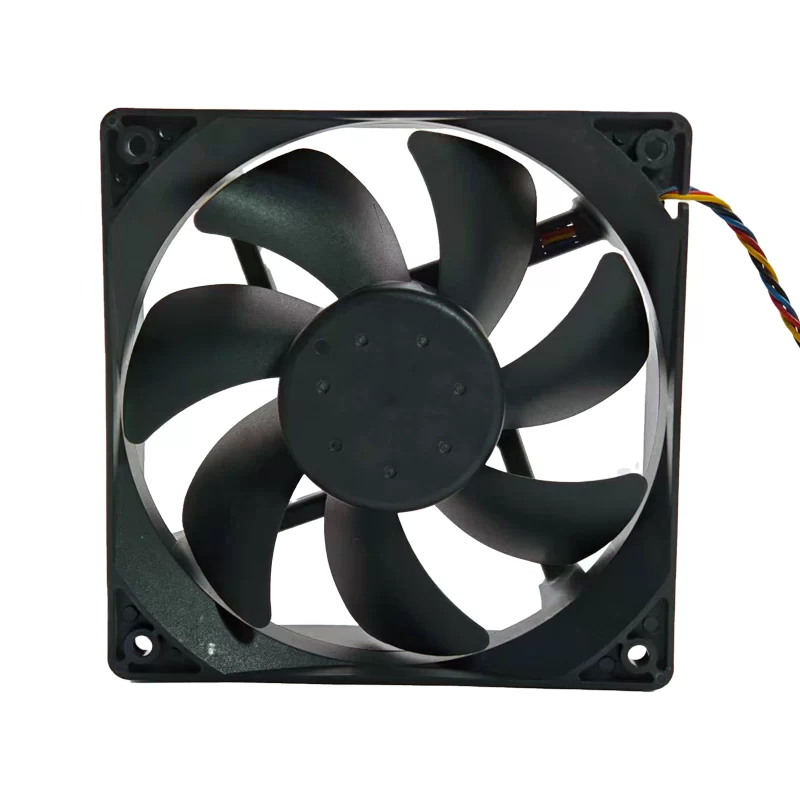

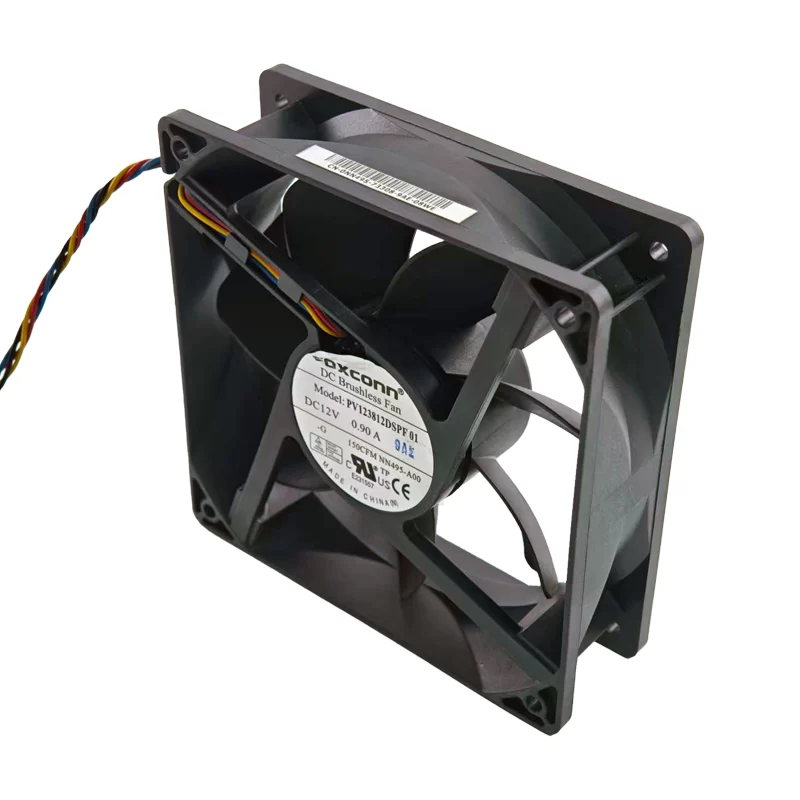

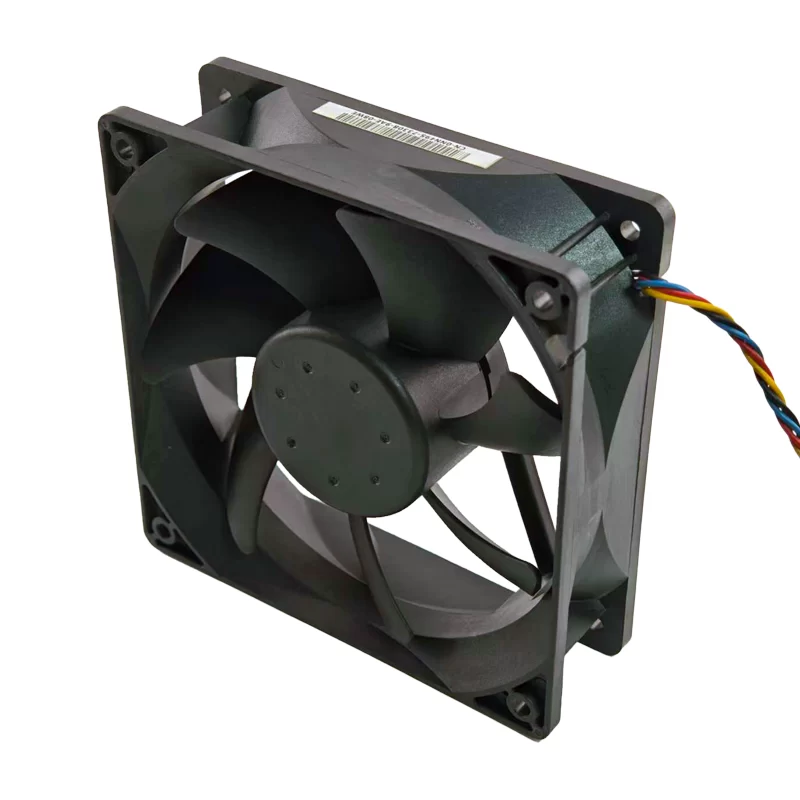

The Foxconn PV123812DSPF01 is a High-Performance DC Axial Fan with dimensions of 120 mm×120 mm×38 mm. It operates on 12 VDC, drawing 0.90 A of current. This fan delivers a high Airflow of 150 CFM (≈255 m3/h) at a maximum Rotational Speed of 4,500 RPM. Featuring a Double Ball Bearing system, it is designed for longevity and stability. It is most frequently used as an original equipment cooling fan in various Dell desktop and workstation models that require robust airflow.
PV123812DSPF01 Fan Parameters
Model: PV123812DSPF01
Manufacturer: Foxconn
Type: DC Axial Fan
Dimensions: 120 mm×120 mm×38 mm
Nominal Voltage: 12 VDC
Rated Current: 0.90 A
Rated Power: 10.8 W
Max Speed: 4,500 RPM
Airflow: 255 m3/h (≈150 CFM)
Static Pressure: 162 Pa (0.65 inAq)
Acoustic Noise: 55 dB(A)
Bearing Type: Double Ball Bearing
Life Expectancy: 50,000 hours (at 40∘C)
FConnector: 4-wire (PWM/Tachometry control signals)
Mounting Holes: 4 corner holes
Weight: 181 g
Motor Design: Brushless DC Motor
Number of blades: 7
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temp: −10∘C to +70∘C
Protection: Polarity Protection
Application
The Foxconn PV123812DSPF01 is a high-static pressure axial fan engineered for critical cooling tasks within desktop computer systems and servers. Its primary use is as an OEM fan in Dell Optiplex and Dimension series to provide focused airflow over CPUs, hard drives, or as case exhaust, ensuring system stability under heavy load.
