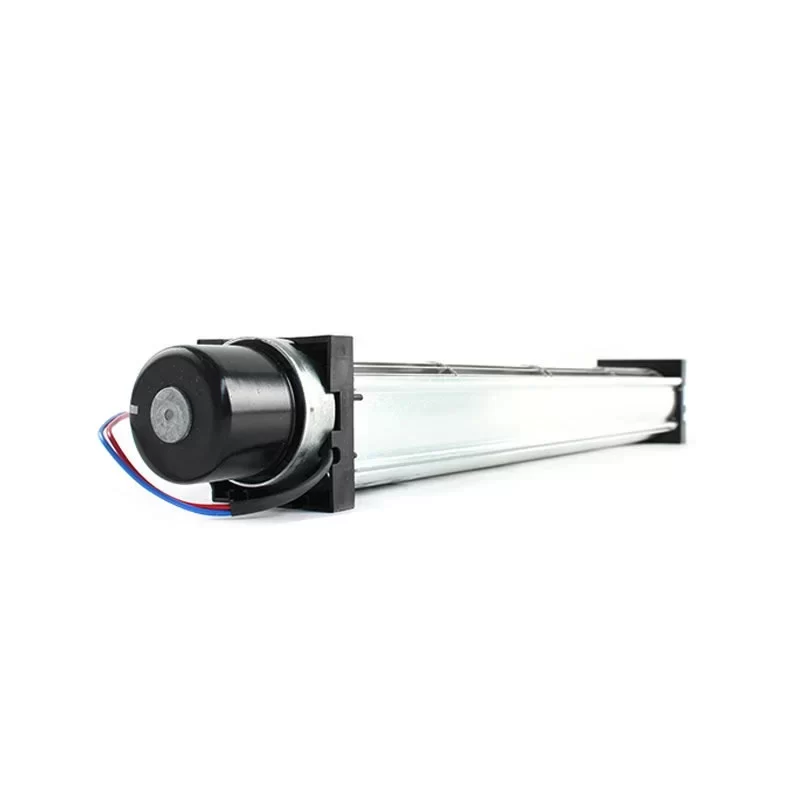

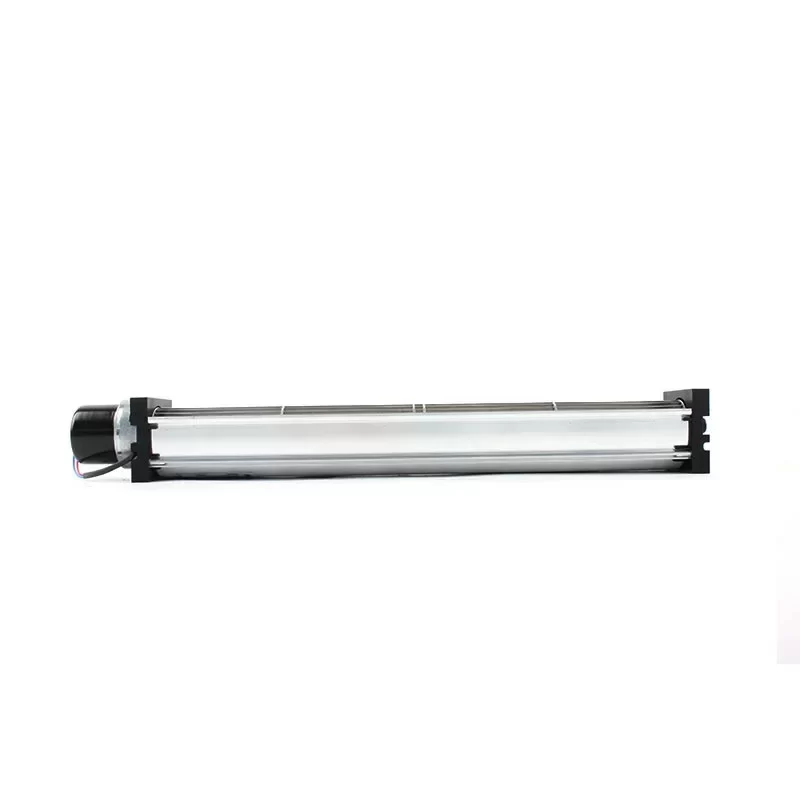

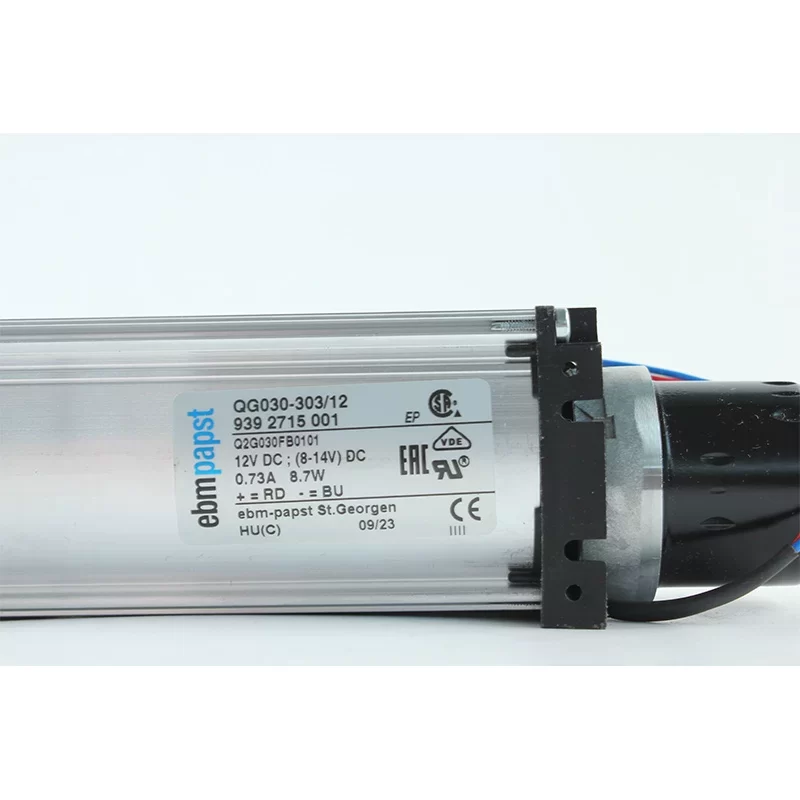

QG030-303/12 ebmpapst 12V 0.73A DC Cross-flow Fan

Description

The ebmpapst QG030-303/12 is a high-efficiency 12 VDC industrial DC cross-flow fan, engineered for continuous thermal regulation in demanding environments. This unit utilizes a precision-engineered multi-blade aluminum impeller driven by a high-torque brushless DC motor, which maintains a powerful 8.76 W power profile for wide-area uniform air displacement. Its structural integrity is anchored by an extruded aluminum housing with plastic side parts and a specialized hybrid bearing system—utilizing ball bearings for the motor and a sleeve bearing for the impeller retaining plate—ensuring exceptional mechanical longevity. The 2-wire configuration provides a streamlined and dependable electrical connection ideal for high-reliability systems such as laboratory equipment, telecommunications racks, and large-format printing heaters requiring uniform temperature distribution and a low-profile footprint.

415 x 50 x 48 mm Fan Parameters
Manufacturer: ebmpapst
Model Number: QG030-303/12
Type: DC Cross-flow Fan
Bearing Type: Ball bearing
Nominal Voltage: 12 VDC
Nominal Voltage Range: 8.0 – 14.0 VDC

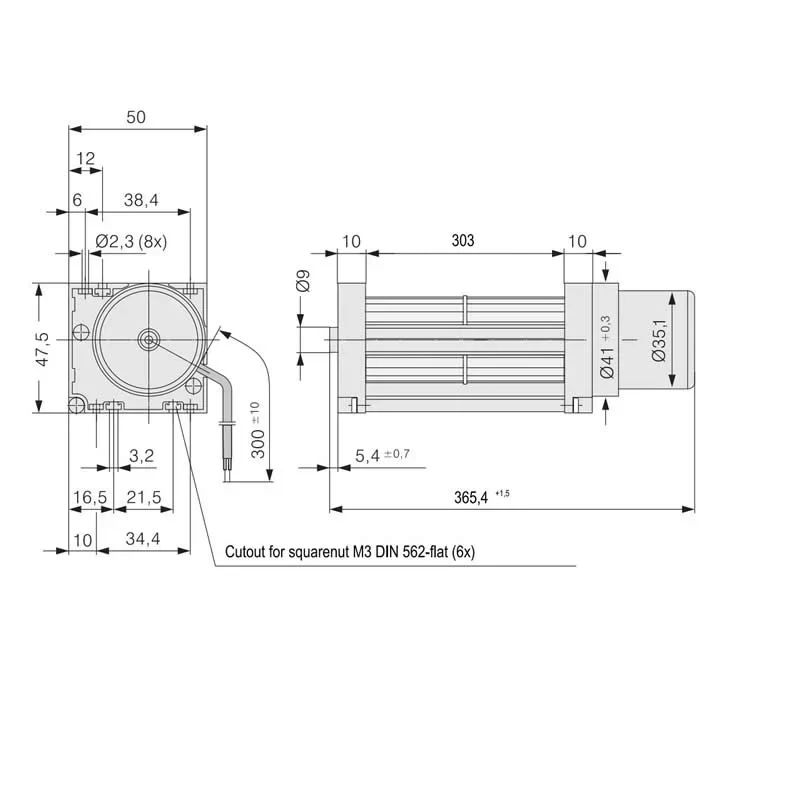

Dimensions: 415 x 50 x 48 mm
Weight: 0.380 kg

[Electrical Data]
Input Power: 8.76 W
Nominal Current: 0.73 A
Nominal Speed: 3700 RPM
Motor Design: Brushless DC Motor
Motor Protection: Reverse polarity and blocked rotor protection; Overload protection
Termination: 2-Lead wires (AWG 24, TR 64)
Connection: Red (+), Black (-)

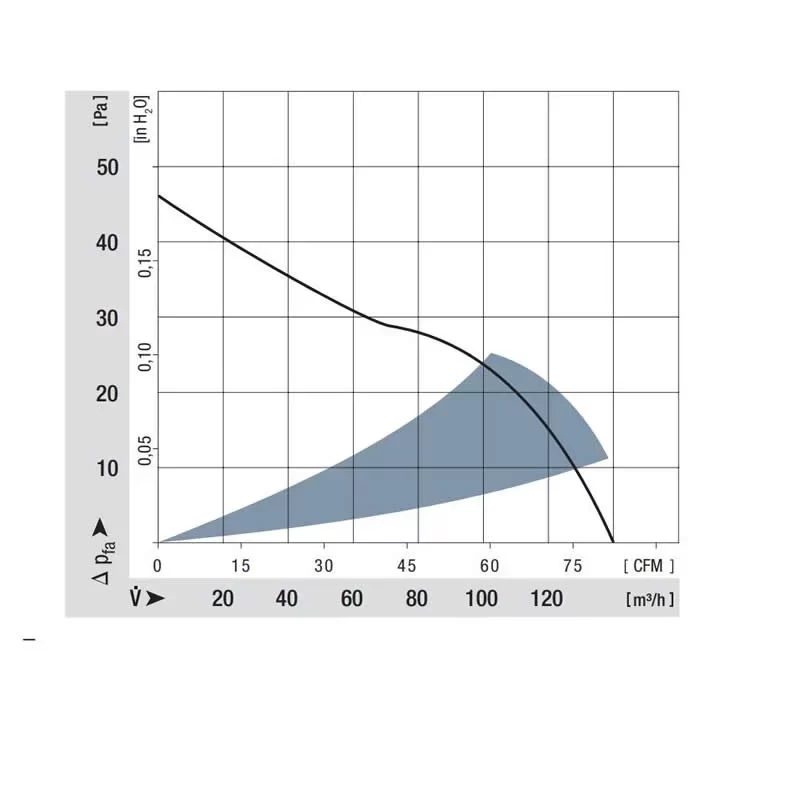

[Performance & Acoustics]
Max. Air Flow: 82.4 CFM (140.0 m³/h / 2.33 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Sound Power Level: 5.8 Bel
Sound Pressure Level: 51 dB(A)
Number of Blades: Multi-blade tangential
Direction of Rotation: Clockwise, viewed toward rotor
Impeller Material: Aluminum
Housing Material: Aluminum (housing), Plastic (side parts)

[Reliability & Safety Standards]
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 60 °C
Service Life (L10) at 40 °C: 30,000 h
Service Life (L10) at Max Temp: 20,000 h
Standard Compliance: VDE, CSA, UL, CE
Approval Agency: VDE, CSA, UL, CE

Application
The ebmpapst QG030-303/12 cross-flow fan is used in telecommunications rack cooling, large-format inkjet printers, laboratory incubators, solariums, and thin-film heating modules.
