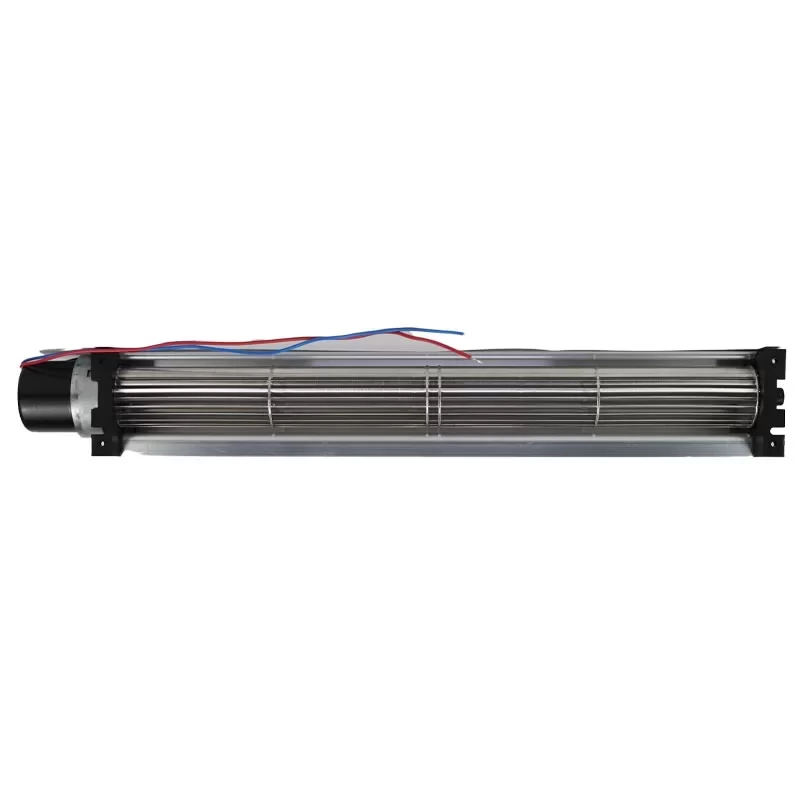

QG030-303/14 ebmpapst 24V 30mm DC Cross-flow Blower

Description

The ebmpapst QG030-303/14 is a high-performance 24VDC IP68-rated DC Cross-flow Blower with dimensions of 365.4 x 50 x 47.5 mm, featuring a 30 mm diameter impeller and a robust aluminum housing designed for mission-critical cooling in Industrial Frequency Converters and specialized power electronics. Driven by a brushless external rotor motor with maintenance-free ball bearings and a fully encapsulated motor system, this 0.42 kg unit operates at 24 VDC delivering a Max. Power Consumption of 8.7 W and a Max. Current Draw of 0.36 A. This High-performance unit achieves a Max. Air Flow of 140.0 m³/h (82.4 CFM / 2.33 m³/min) and a Max. Static Pressure of 5.10 mmH₂O (50.0 Pa / 0.20 inAq). Featuring integrated electronic protection against reverse polarity and blocking, this IP68-protected unit is optimized for environments requiring high reliability, laminar airflow distribution, and long-term durability in industrial VFD systems at the end.

QG030-303/14 Fan Parameters
Model Number: QG030-303/14
Manufacturer: ebmpapst
Part Number: 9392715002
Type: DC Cross-flow Blower
Dimensions: 365.4 x 50 x 47.5 mm
Weight: 0.42 kg
Origin: Germany
Bearing Type: Ball bearing (Long-time lubrication)
Phase: DC
Nominal Voltage: 24 VDC
Voltage Range: 16.0 – 28.0 VDC
Connection Type: 2-wire (Leads AWG 24, TR 64)
Max. Current Draw: 0.36 A
Max. Power Consumption: 8.7 W
Rated Speed: 3700 RPM
Max. Air Flow: 82.4 CFM (140.0 m³/h / 2.33 m³/min)
Max. Static Pressure: 5.10 mmH₂O (50.0 Pa / 0.20 inAq)
Working Air Flow: 140.0 m³/h
Static Pressure Increase: 50.0 Pa
Sound Pressure Level: 51 dB(A)
Sound Power Level: 5.8 Bel(A)
Motor Protection: Electronic blocking / Reverse polarity protection
Insulation Class: Class E
Degree of Protection: IP68 (Fully encapsulated motor)
Housing Material: Extruded aluminum (Housing) / Glass-fiber reinforced PBT (Side parts)
Impeller Material: Aluminium
Ambient Temperature (Max.): 60 °C
Min. Operating Temperature: -20 °C
Service Life (L10): 30,000 h (40 °C)
Standard Compliance: CE; EAC; UL; CSA; VDE

Application
The ebmpapst QG030-303/14 cross-flow blower is the primary cooling component for industrial frequency converters, high-power laser modules, and telecommunication racks requiring IP68-rated waterproof protection and uniform laminar airflow.
