QK08B-2EM.50.CH Ziehl-Abegg 230V AC Cross-flow Fan

Description

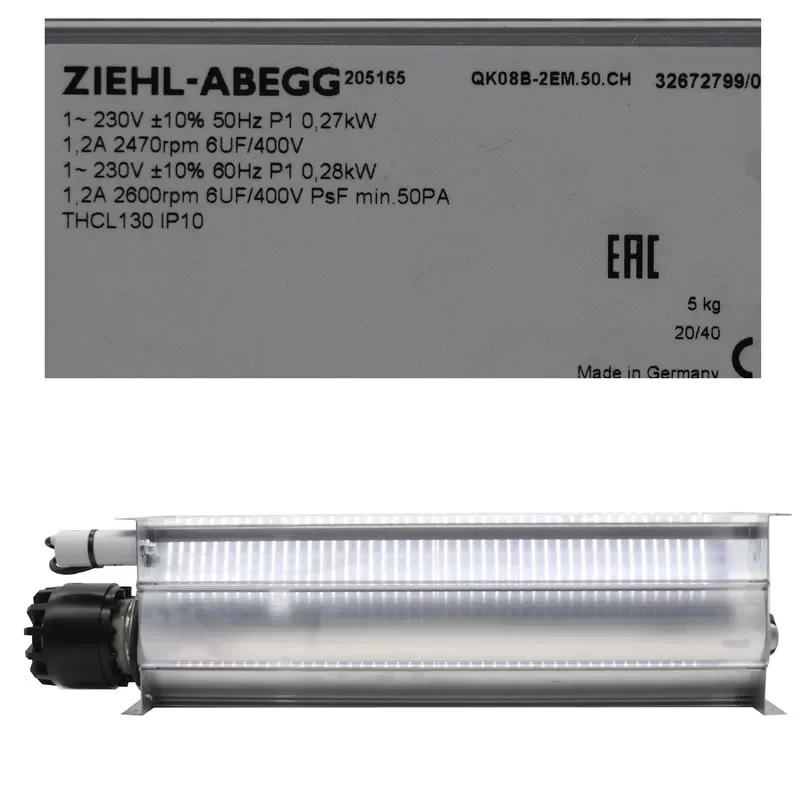

The Ziehl-Abegg QK08B-2EM.50.CH is a high-velocity AC cross-flow fan engineered for demanding applications requiring a powerful, linear, and laminar airflow distribution. This 628 mm extended-length unit is driven by a high-speed 2-pole external rotor motor, delivering an impressive 2470 RPM at 50Hz with a 0.27 kW power input. Designed for single-phase 230V operation, it provides exceptional air throw and uniformity across its entire discharge width. With a lightweight 5 kg construction and a compact 628 x 160 x 130 mm profile, it is optimized for space-constrained environments that still require high cooling capacity. Rated at IP10 and capable of withstanding ambient temperatures up to 70 °C, this fan ensures reliable, high-performance operation in specialized industrial and commercial ventilation systems.

QK08B-2EM.50.CH Fan Parameters
Manufacturer: Ziehl-Abegg
Model Number: QK08B-2EM.50.CH
Type: AC cross-flow fan (Tangential blower)
Phase: 1~
Nominal Voltage: 230 V
Nominal Voltage Range: 220 – 240 VAC
Frequency: 50/60 Hz
Dimensions: 628 x 160 x 130 mm
Weight: 5 kg

[Electrical Data]
Input Power (50 Hz): 0.27 kW (270 W)
Input Power (60 Hz): 0.28 kW (280 W)
Nominal Speed (50 Hz): 2470 RPM
Nominal Speed (60 Hz): 2600 RPM
Current Draw (50 Hz): 1.2 A
Current Draw (60 Hz): 1.2 A
Capacitor: 8.0 µF / 400 VDB (Required for operation)
Motor Protection: Thermal contact (TB)
Insulation Class: F
Termination: Lead wires or terminal box

[Performance & Acoustics]
Max. Air Flow (50 Hz): 765.1 CFM (1,300.0 m³/h / 21.67 m³/min)
Max. Static Pressure (50 Hz): 18.35 mmH₂O (180.0 Pa / 0.72 inH₂O)
Sound Power Level: 64 dB(A)
Impeller Length: 515 mm (Effective discharge)
Total Housing Length: 628 mm
Direction of Rotation: Counterclockwise (viewed toward motor)
Airflow Direction: 90° tangential discharge

[Materials & Construction]
Housing Material: Galvanized sheet steel
Impeller Material: Aluminum
Motor Bearing: High-temperature ball bearings
Installation Position: Any
Degree of Protection: IP10

[Reliability & Safety Standards]
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 70 °C
Standard Compliance: EN 60335-1, CE
Approval Agency: VDE, UL, EAC, RoHS

Application
The Ziehl-Abegg QK08B-2EM.50.CH cross-flow fan is used in air curtains, fan coil units, floor trench heating systems, commercial refrigeration displays, dry-type transformers, and industrial cooling for wide electronic panels.
