Description

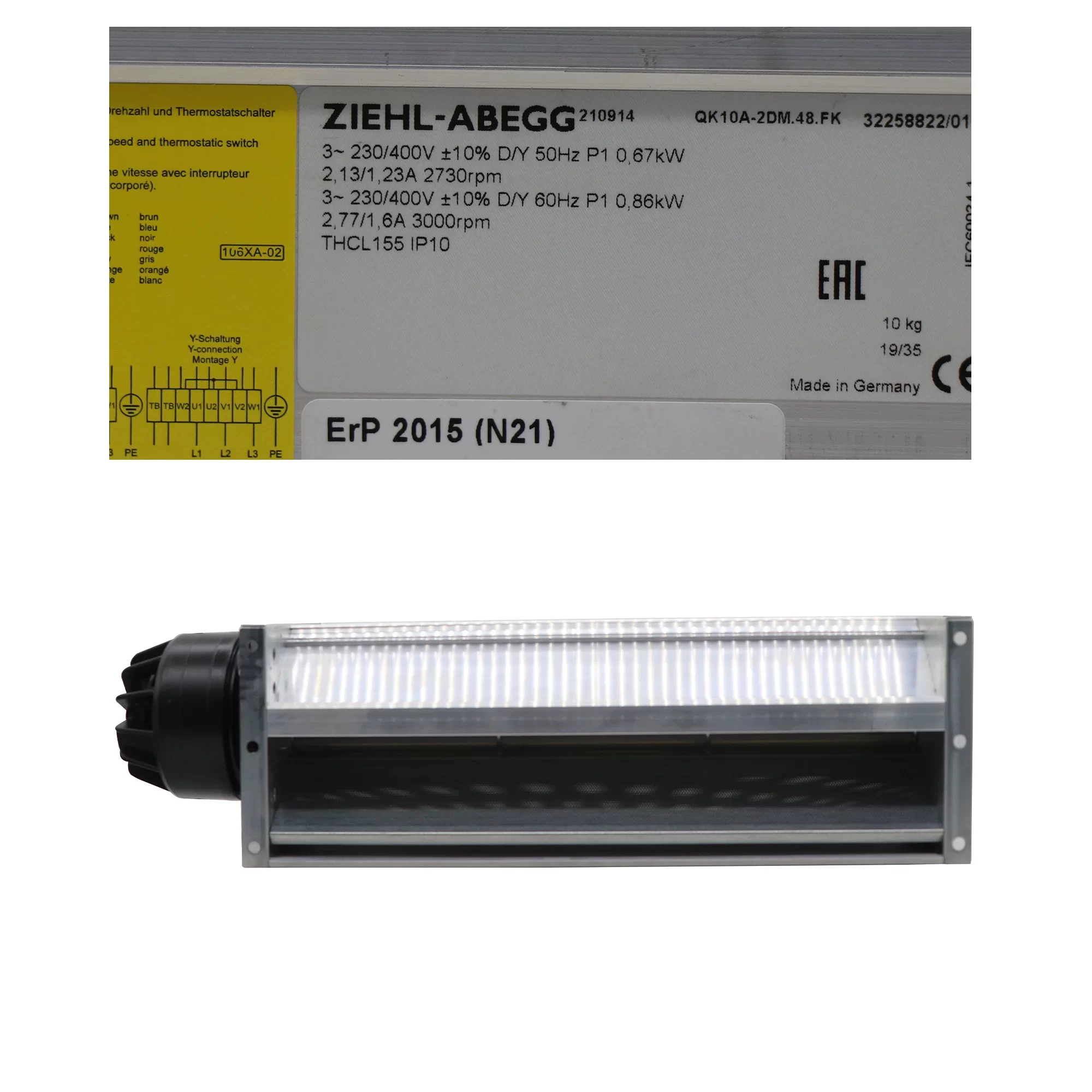

The ZIEHL-ABEGG QK10A-2DM.48.FK is a high-performance 230/400VAC three-phase AC Cross-flow Fan featuring a 100 mm diameter tangential impeller, specifically engineered for uniform linear cooling in Industrial Frequency Converters and high-density electronic enclosures. Driven by a high-torque 2-pole external rotor motor with precision ball bearings, this 8.5 kg unit operates within a 230/400 VAC range across 50/60 Hz frequencies using a Delta/Star (D/Y) connection, delivering a Max. Power Consumption of 0.67 / 0.86 kW and a Max. Current Draw of 2.13/1.23 / 2.77/1.60 A at a rated speed of 2730 / 3000 RPM. This High-performance unit features a specialized aerodynamic 480 mm wide tangential impeller achieving a Max. Air Flow of 1150.0 / 1280.0 m³/h (676.8 / 753.4 CFM / 19.17 / 21.33 m³/min) and a Max. Static Pressure of 18.35 / 22.43 mmH₂O (180.0 / 220.0 Pa / 0.72 / 0.88 inAq). Featuring a “Made in Germany” robust construction with integrated thermal contacts (TB) for motor protection, this IP10-rated fan is optimized for environments requiring uniform airflow distribution and high reliability in industrial VFD systems at the end.
QK10A-2DM.48.FK Fan Parameters
Model Number: QK10A-2DM.48.FK
Manufacturer: ZIEHL-ABEGG
Type: AC Cross-flow Fan (Tangential Fan)
Impeller Diameter: 100 mm
Impeller Width: 480 mm
Weight: 8.5 kg
Origin: Made in Germany
Bearing Type: Ball bearing
Nominal Voltage: 230 / 400 VAC (3~)
Voltage Range: 230 / 400 VAC (±10%)
Connection Type: Delta / Star (D/Y)
Frequency: 50 / 60 Hz
Max. Current Draw: 2.13/1.23 / 2.77/1.60 A
Max. Power Consumption: 0.67 / 0.86 kW
Rated Speed: 2730 / 3000 RPM
Max. Air Flow: 676.8 / 753.4 CFM (1150.0 / 1280.0 m³/h / 19.17 / 21.33 m³/min)
Max. Static Pressure: 18.35 / 22.43 mmH₂O (180.0 / 220.0 Pa / 0.72 / 0.88 inAq)
Working Air Flow: 1150.0 / 1280.0 m³/h
Static Pressure Increase: 180.0 / 220.0 Pa
Motor Protection: Thermal contact (TB) integrated
Insulation Class: Thermal class 155 (Class F / THCL 155)
Degree of Protection: IP10
Impeller Material: Aluminium
Housing Material: Sheet aluminium / Galvanized steel
Ambient Temperature (Max.): 40 °C
Min. Operating Temperature: -20 °C
Balancing Quality: G6.3
Electrical Hookup: Lead wires (Terminal box or axial)
Standard Compliance: CE; UL; EAC
Application
The ZIEHL-ABEGG QK10A-2DM.48.FK cross-flow fan is the primary cooling component for industrial frequency converters, air curtains, and climate control units requiring uniform linear airflow and space-saving installation in 230V-400V three-phase environments.
