R1G225-AF07-52 ebmpapst 24V 225mm EC Centrifugal Fan

Description

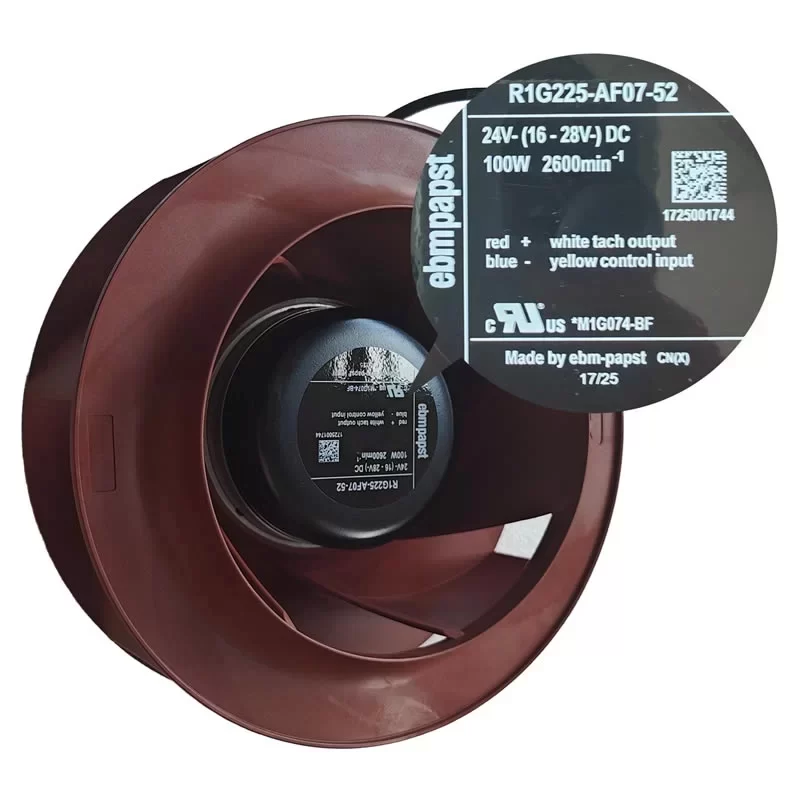

The ebmpapst R1G225-AF07-52 is a high-performance 24 VDC GreenTech EC centrifugal fan featuring a 225 mm backward-curved RadiCal impeller made of glass-fiber reinforced PA66 plastic. Driven by a compact M1G074-BF motor, this unit is engineered for precision air displacement in low-voltage applications, delivering a speed of 2600 RPM with a power consumption of 100 W. Designed for S1 continuous operation, it integrates advanced technical features including a 0-10 VDC/PWM control input, tachometer output for speed monitoring, and comprehensive reverse polarity and soft start protection. This SELV-compliant air-moving solution is ideal for telecommunications, industrial control cabinets, and battery-powered ventilation systems, maintaining high reliability and EMC industrial immunity across an ambient temperature range of -25 °C to 60 °C.

R1G225-AF07-52 Fan Parameters
Model Number: R1G225-AF07-52
Manufacturer: ebmpapst
Motor Model: M1G074-BF
Series: RadiCal EC Centrifugal Series
Type: EC Centrifugal Fan (Backward-Curved)
Impeller Size: 225 mm
Dimensions: 225 x 225 x 99 mm
Bearing Type: Ball Bearing
Nominal Voltage: 24 VDC
Voltage Range: 16.0 – 28.0 VDC
Weight: 1.5 kg
Power Consumption: 100 W
Nominal Current: 4.6 A
Speed: 2600 RPM
Control Interface: 0-10 VDC / PWM
Technical Features: Tach output; Soft start; Motor current limitation; Reverse polarity protection; Control input 0-10 VDC / PWM
Motor Design: DC External Rotor Motor (EC)
Safety Protection: SELV (Safety Extra-Low Voltage)
Insulation Class: Class B
Touch Current: < 0.75 mA
Termination: Variable cable
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Impeller Material: PA66 plastic, glass-fiber reinforced
Rotor Surface: Painted black
Installation Position: Any
Condensate Discharge Holes: None
Degree of Protection: IP42
Environmental Protection Class: H0 (Dry environment)
Operating Temperature: -25 – +60 °C
EMC Compliance: EN 61000-6-2 (Immunity); EN 55022 Class B (Emission)
Standard Compliance: EN 62368-1, CE
Approval Agency: UL 1004-1, CSA C22.2 No. 77, EAC

Application
The ebmpapst R1G225-AF07-52 is used in telecommunications infrastructure, industrial control cabinets, battery-powered cooling systems, and mobile ventilation units.
