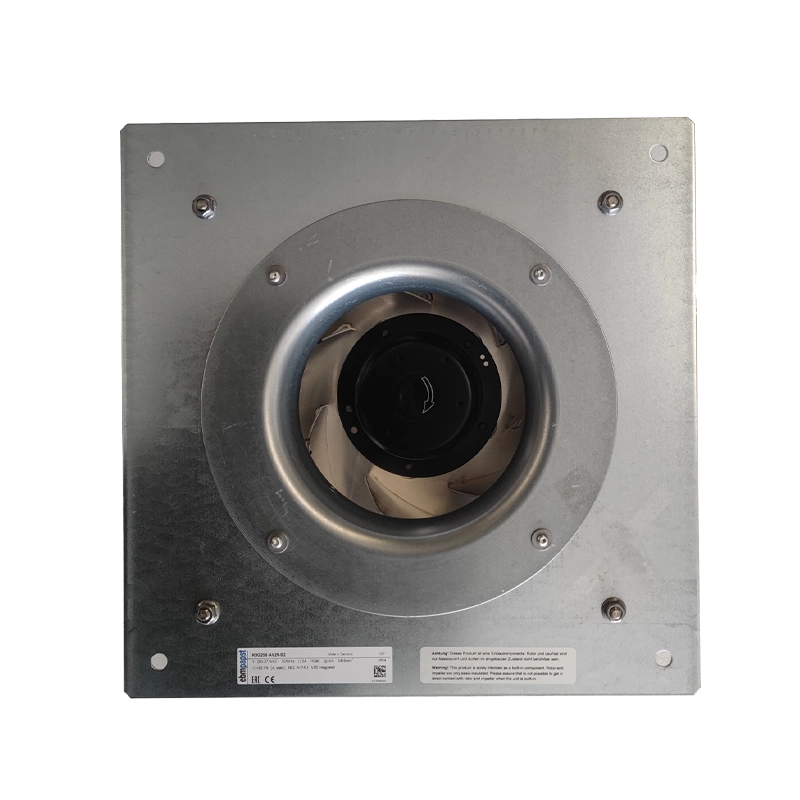

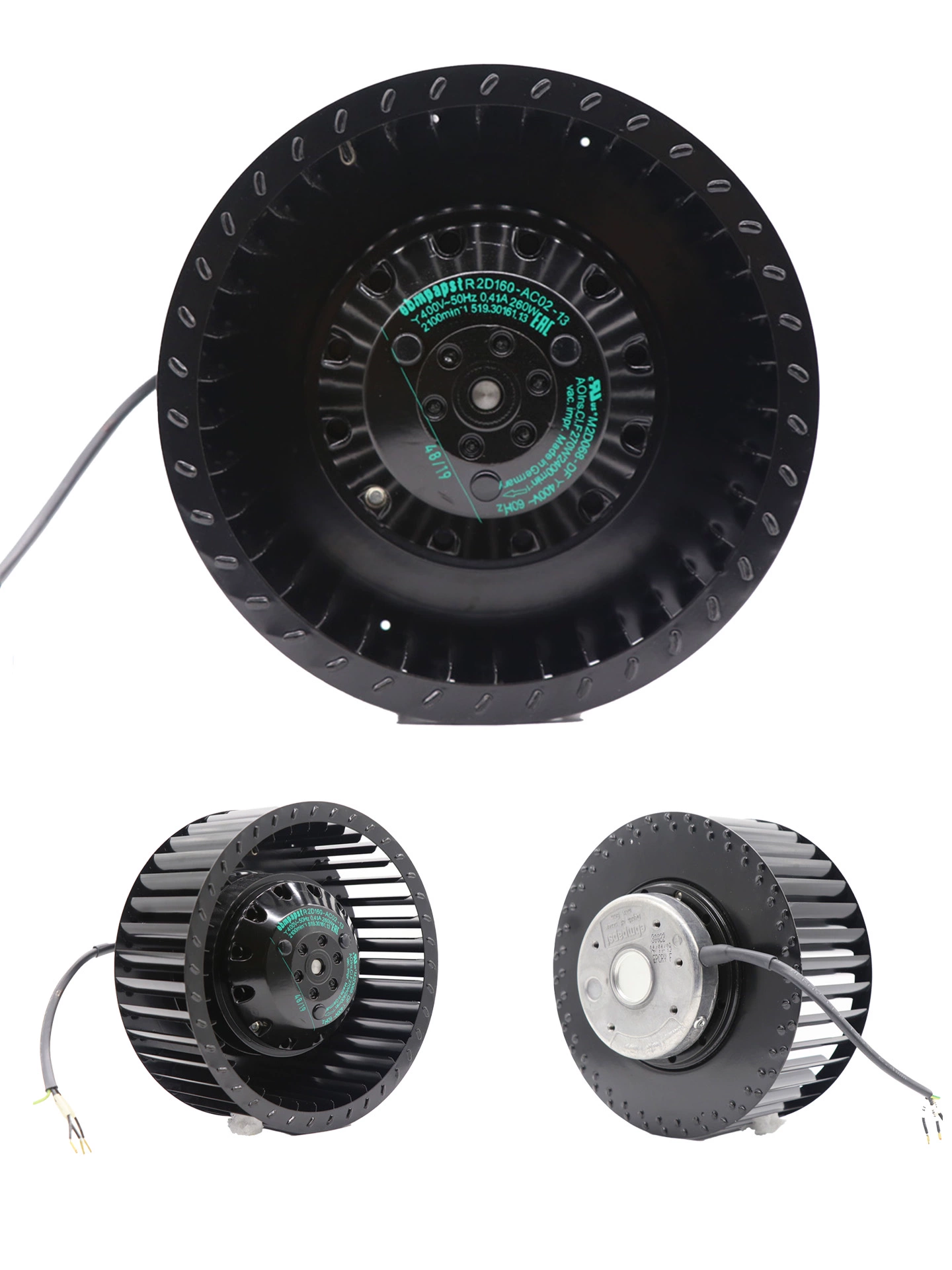

R2D160-AC02-13 ebmpapst 400V AC centrifugal fan

Description

The ebmpapst R2D160-AC02-13 is a 400V AC centrifugal fan, specified with a weight of 2.2 KG and an IP44 rating for protection. Featuring ball bearings and constructed with metal materials, this fan operates at 400V and 50Hz, drawing 0.41 amps of current and consuming 260 watts of power. It achieves a speed of 2100 RPM and connects via wire leads. As a centrifugal fan, it’s designed for applications requiring efficient air movement against static pressure, such as in industrial ventilation systems, air handling units, or specialized cooling cabinets.

R2D160-AC02-13 Fan Parameters
Model Number: R2D160-AC02-13
Manufacturer: ebmpapst
Type: AC Centrifugal Fan
Rated Voltage: 400 VAC
Frequency: 50 Hz
Rated Current: 0.41A
Rated Power: 260W
Speed: 2100 RPM
Weight: 2.2 KG
IP Rating: IP44
Bearing Type: Ball Bearing
Impeller Material: Metal
Frame Material: Metal
Connector: Wire Leads
