Description

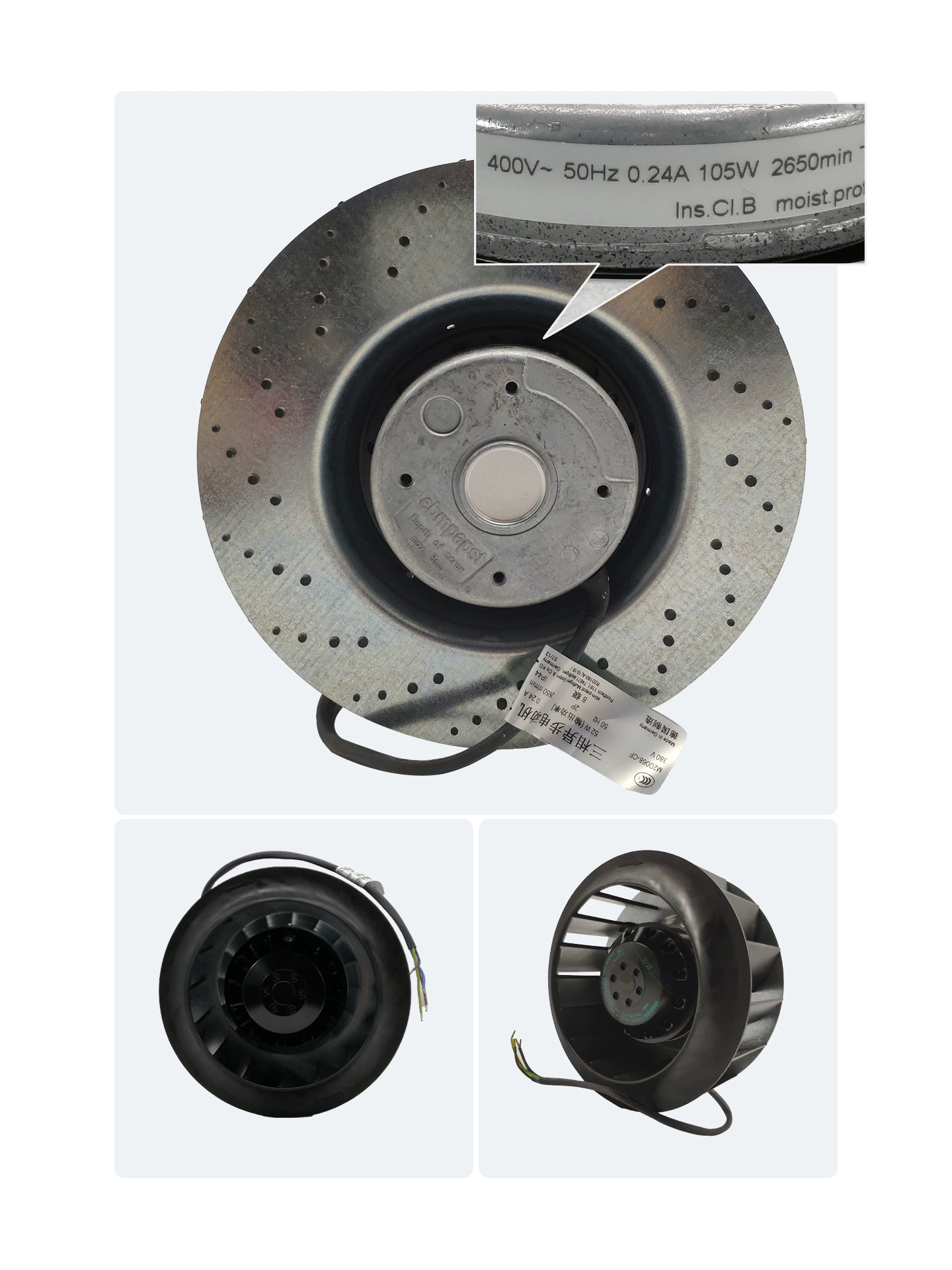

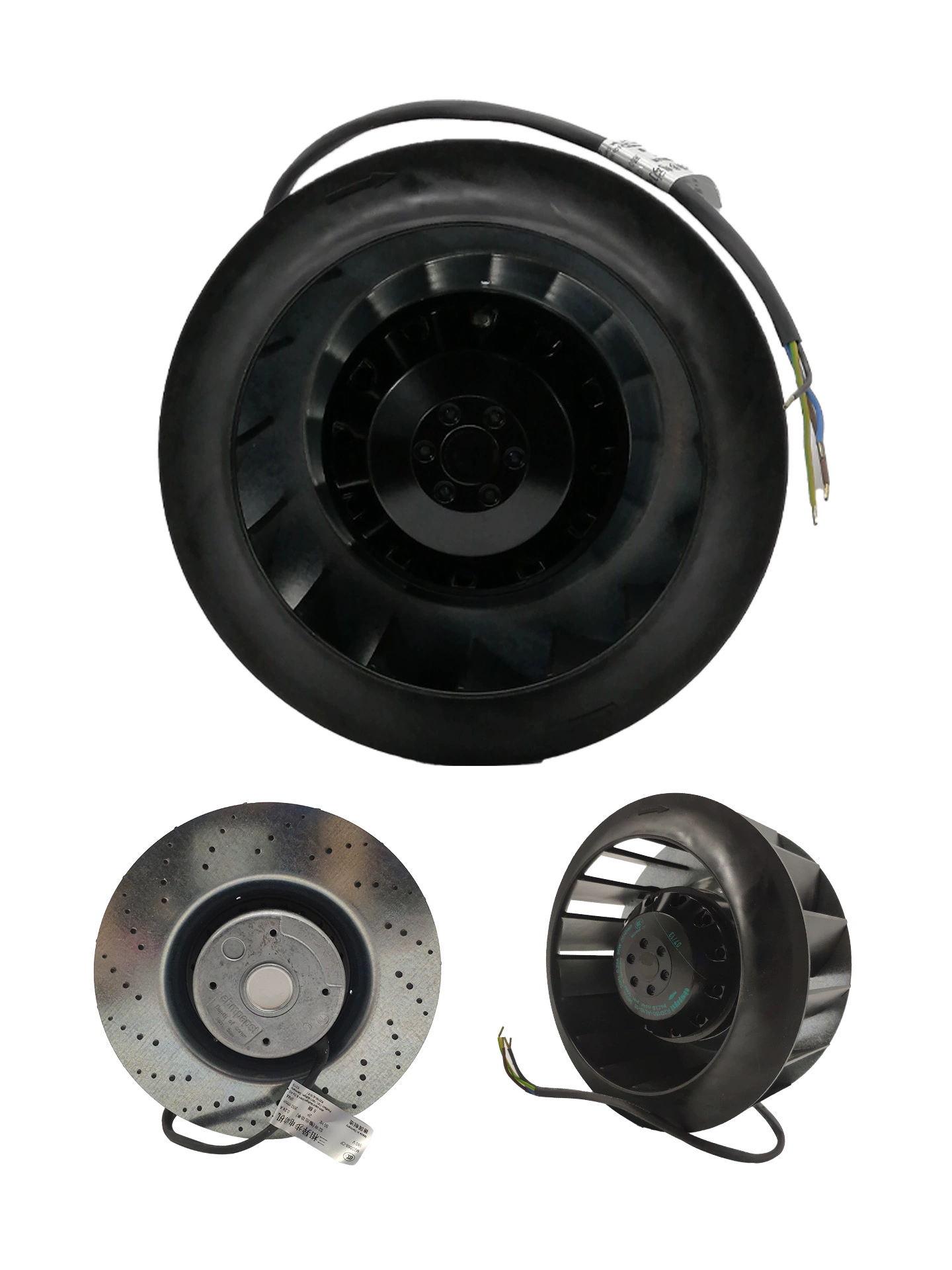

The ebmpapst R2D180-AL10-18 is a powerful 400V AC centrifugal fan with backward-curved blades, designed for efficient air movement in systems requiring higher static pressure. With an impeller diameter of 180mm and a compact depth of 84.5mm, it features an external rotor motor. Operating at 400V AC with a 50Hz frequency, this fan consumes 105 watts of power, drawing 0.24 amps, and spins at 2650 RPM. It delivers a substantial airflow of 645 m³/h. Featuring durable ball bearings and a PA plastic impeller, and rated IP44 for protection, this fan is ideal for reliable cooling in control cabinets, air handling units, and general industrial ventilation systems where air needs to be moved against resistance.
R2D180-AL10-18 Fan Parameters
Model Number: R2D180-AL10-18
Manufacturer: ebmpapst
Type: AC Centrifugal Fan / Motorized Impeller (Backward-Curved, Single-Intake)
Dimensions: 180mm Diameter x 84.5mm Depth
Rated Voltage: 400 VAC
Frequency: 50 Hz
Rated Current: 0.24A
Rated Power: 105W
Speed: 2650 RPM
Airflow: 645 m³/h
IP Rating: IP44
Connector: Cables / Leads
Bearing Type: Ball Bearing
Impeller Material: PA plastic
Rotor Surface: Painted black
Operating Temperature: -25°C to +40°C
Weight: 1.8 kg
Features: External rotor motor, Motor with thermal overload protector
Approvals/Certifications: CE
Key Application: Control cabinets, Air handling units, Industrial ventilation, Cooling systems requiring higher pressure
