Description

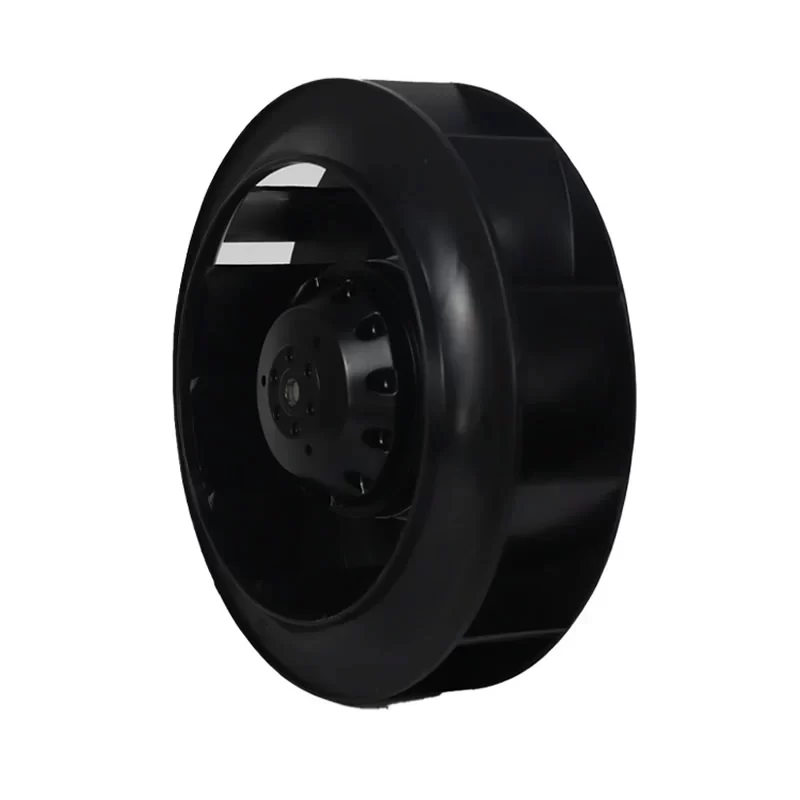

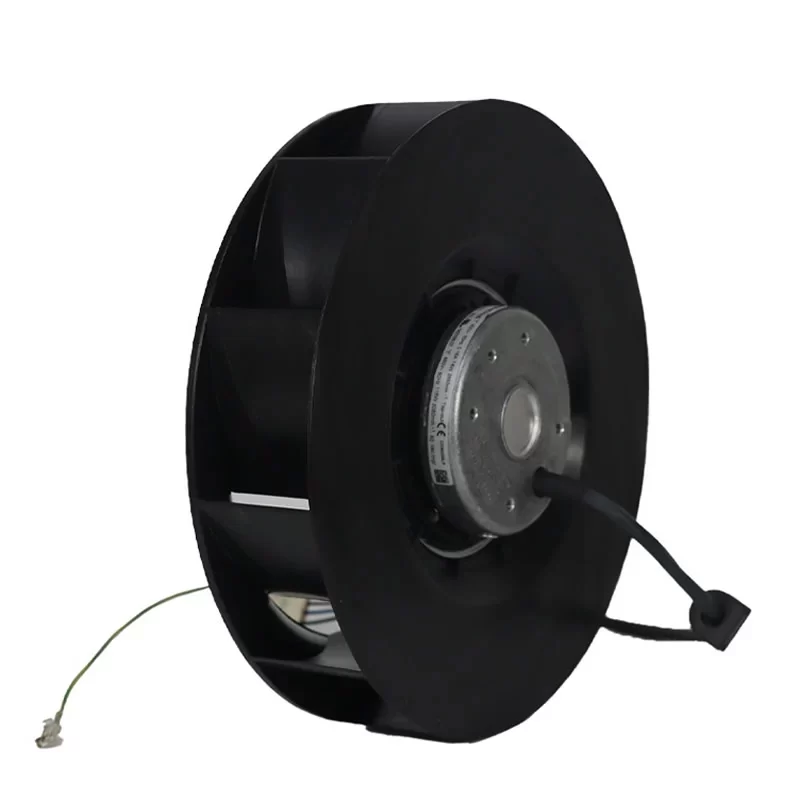

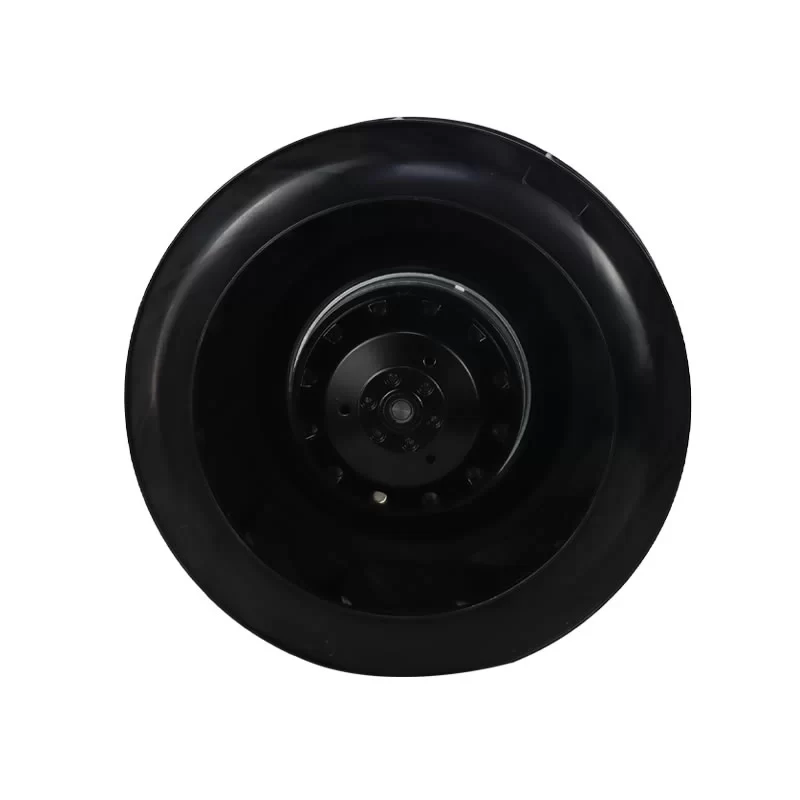

The ebmpapst R2D220-AC14-16 is a three-phase AC Centrifugal Fan (Double Inlet Radial Fan) with a 220 mm impeller, driven by the M2D068-CF motor. It supports dual-voltage, multi-frequency operation (400 V at 50 Hz and 460 V at 60 Hz). At 400 V, 50 Hz, the fan achieves 2650 RPM, consuming 74 W of power and drawing 0.16 A. This model is designed for high-performance air handling and climate control systems.
R2D220-AC14-16 Fan Parameters
Model: R2D220-AC14-16
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Double Inlet, Forward Curved)
Motor Model: M2D068-CF
Dimensions (measuring): Impeller Φ 220 mm
Phase: 3~ (Three-phase)
Frequency: 50/60 Hz
PERFORMANCE AT 400 VAC, 50 Hz
Nominal Voltage: 400 VAC
Speed: 2650 RPM
Power Consumption: 74 W
Current Draw: 0.16 A
Max. Airflow (Free Air): 1350 m³/h (795 CFM)
Max. Static Pressure: 250 Pa (1.00 inAq)
PERFORMANCE AT 460 VAC, 60 Hz
Nominal Voltage: 460 VAC
Speed: 3080 RPM
Power Consumption: 115 W
Current Draw: Not specified
Weight: 6.5 kg
Housing Material: Sheet steel, galvanized
Impeller Material: Sheet steel, galvanized
Bearing Type: Ball Bearing
Motor Protection: Thermal Overload Protector (TOP) internally connected
Termination: Terminal Box
Installation Position: Shaft horizontal or vertical
Insulation Class: B
Service Life L10 at 40 °C: 40000 h
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 60 °C
Approvals: VDE, UL, CSA, CE
IP Rating: IP44
Protection Class: I
Application
The ebmpapst R2D220-AC14-16 double inlet centrifugal fan is engineered for industrial and commercial systems operating on three-phase power. Its dual-voltage compatibility (400V/460V) makes it suitable for international deployments in HVAC central air handling units (AHUs), large air purification systems, and built-in climate control units requiring high volume flow and reliable performance against system pressure.
