R2D225-AT26-15 ebmpapst 400V/460V AC Centrifugal Fan

Description

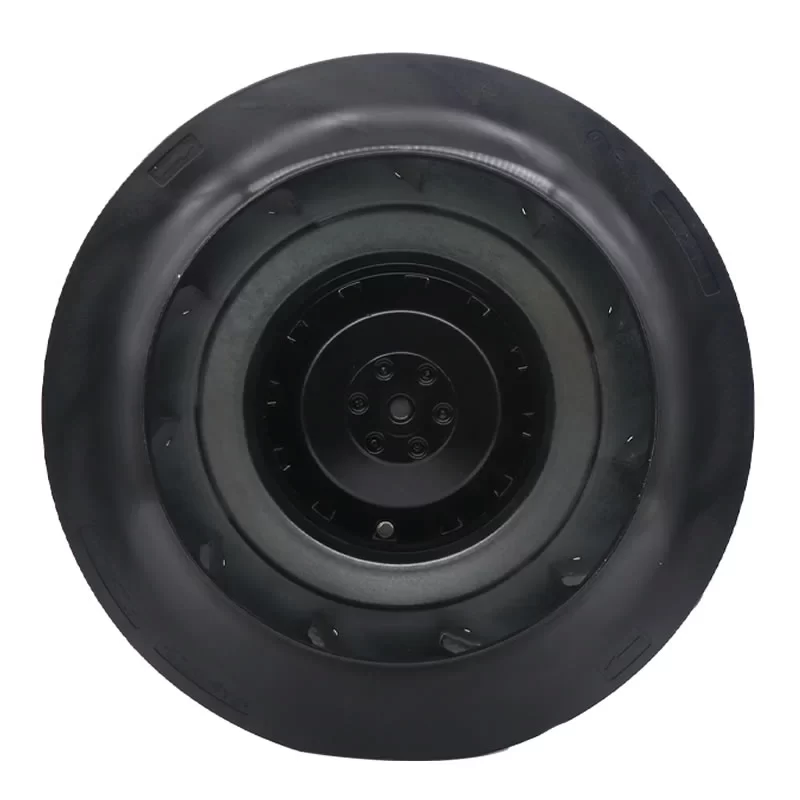

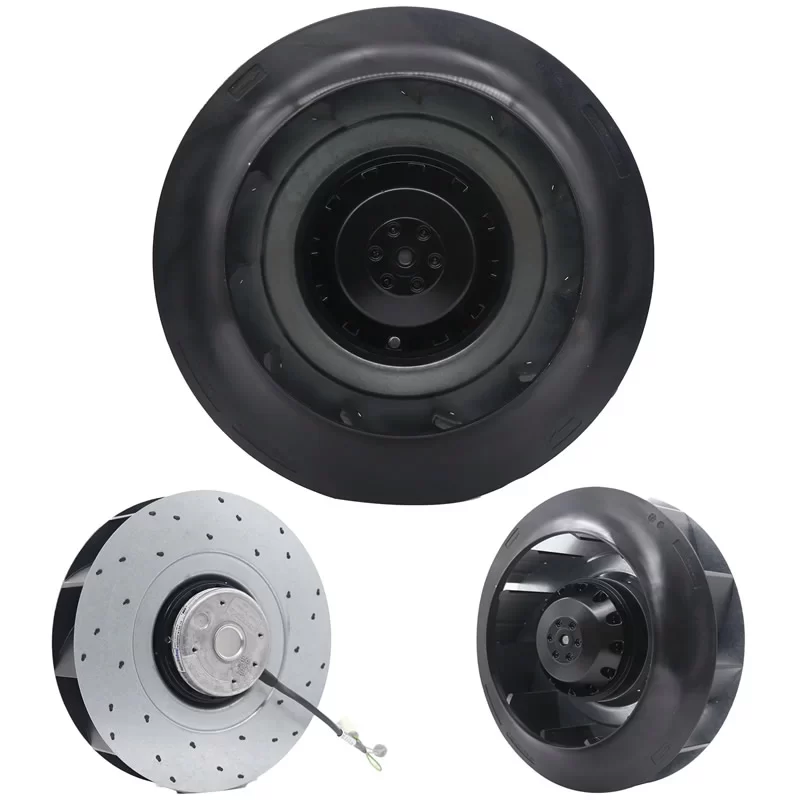

The ebmpapst R2D225-AT26-15 is an AC Centrifugal Fan with measuring 225 mm in diameter, driven by the M2D068-DF motor. It is a three-phase fan designed for dual-voltage operation at 400 VAC/460 VAC and 50 Hz/60 Hz frequencies. The fan has a multi-point maximum power input of 90 W/130 W/135 W and corresponding speeds of 2750 RPM/3100 RPM/3200 RPM (400 VAC/50 Hz, 400 VAC/60 Hz, 460 VAC/60 Hz). Featuring Ball Bearings and a glass-fiber reinforced plastic impeller, this robust unit is ideal for forced ventilation and air intake in heating, air purification, and other industrial systems requiring high-pressure performance.

R2D225-AT26-15 Fan Parameters
Model: R2D225-AT26-15
Manufacturer: ebmpapst
Fan Type: AC Centrifugal Fan (Backward-Curved Motorized Impeller)
Dimensions: 225 mm
Motor: M2D068-DF
Phase: 3
Nominal Voltage: 400 VAC/460 VAC
Frequency: 50 Hz/60 Hz
Rated Speed: 2750 RPM/3100 RPM/3200 RPM (400 VAC/50 Hz, 400 VAC/60 Hz, 460 VAC/60 Hz)
Power Input: 90 W/130 W/135 W (400 VAC/50 Hz, 400 VAC/60 Hz, 460 VAC/60 Hz)
Current Draw: 0.2 A/0.21 A/0.22 A (400 VAC/50 Hz, 400 VAC/60 Hz, 460 VAC/60 Hz)
Min. Ambient Temperature: −25 ∘C
Max. Ambient Temperature: 60 ∘ C
Weight: 2.15 kg
Motor Size: 68
Rotor Surface: Painted black
Impeller Material: PA 6 plastic, glass-fiber reinforced
Degree of Protection: IP44
Insulation Class: B
Motor Bearing: Ball bearing

Application
The R2D225-AT26-15 Centrifugal Fan is designed for effective high-pressure air movement, making it well-suited for applications where airflow must overcome system resistance. Typical uses include heating technology, air purification systems, industrial enclosures, control panel cooling, and HVAC systems requiring a robust, multi-voltage AC solution.
