Description

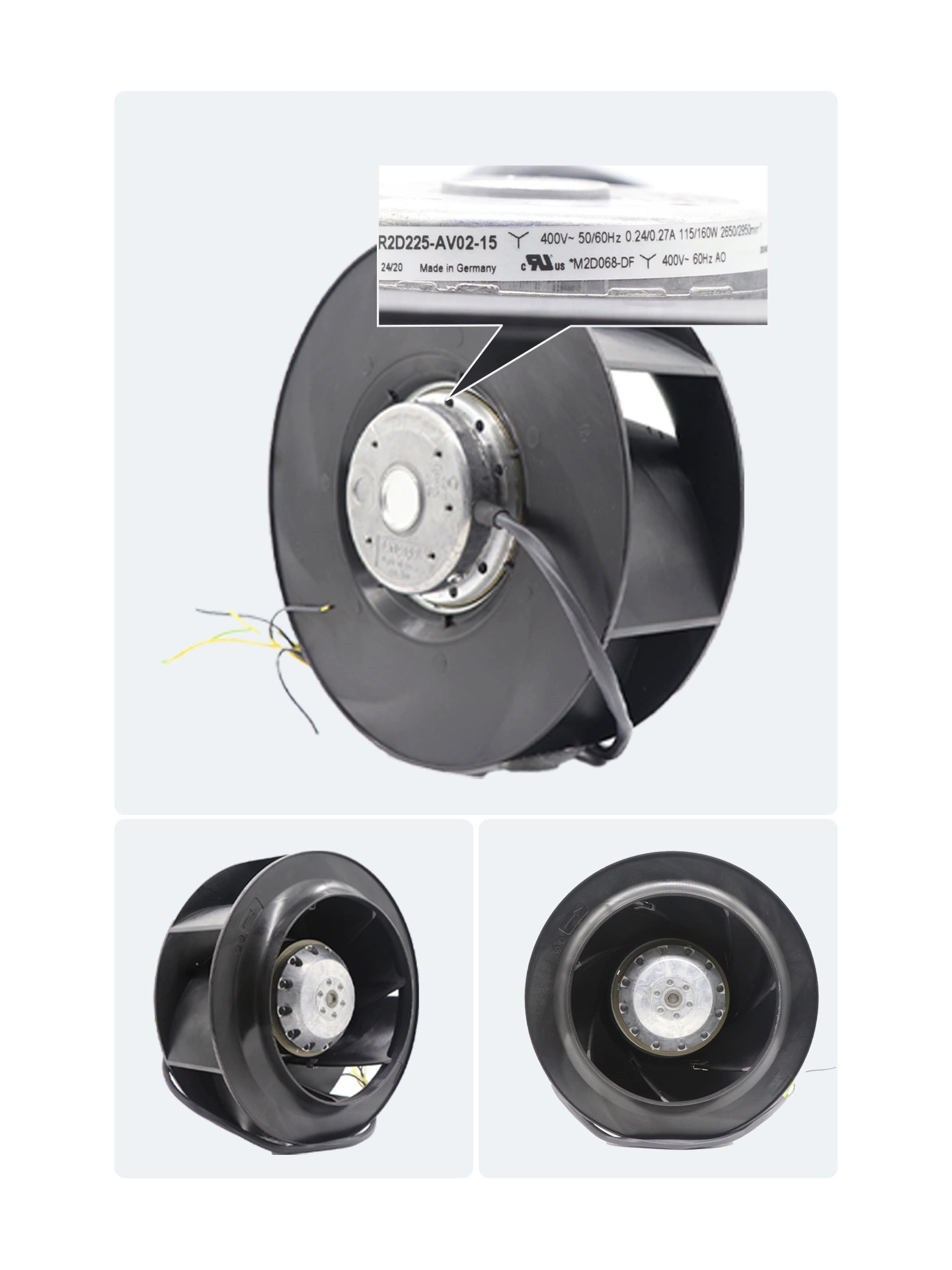

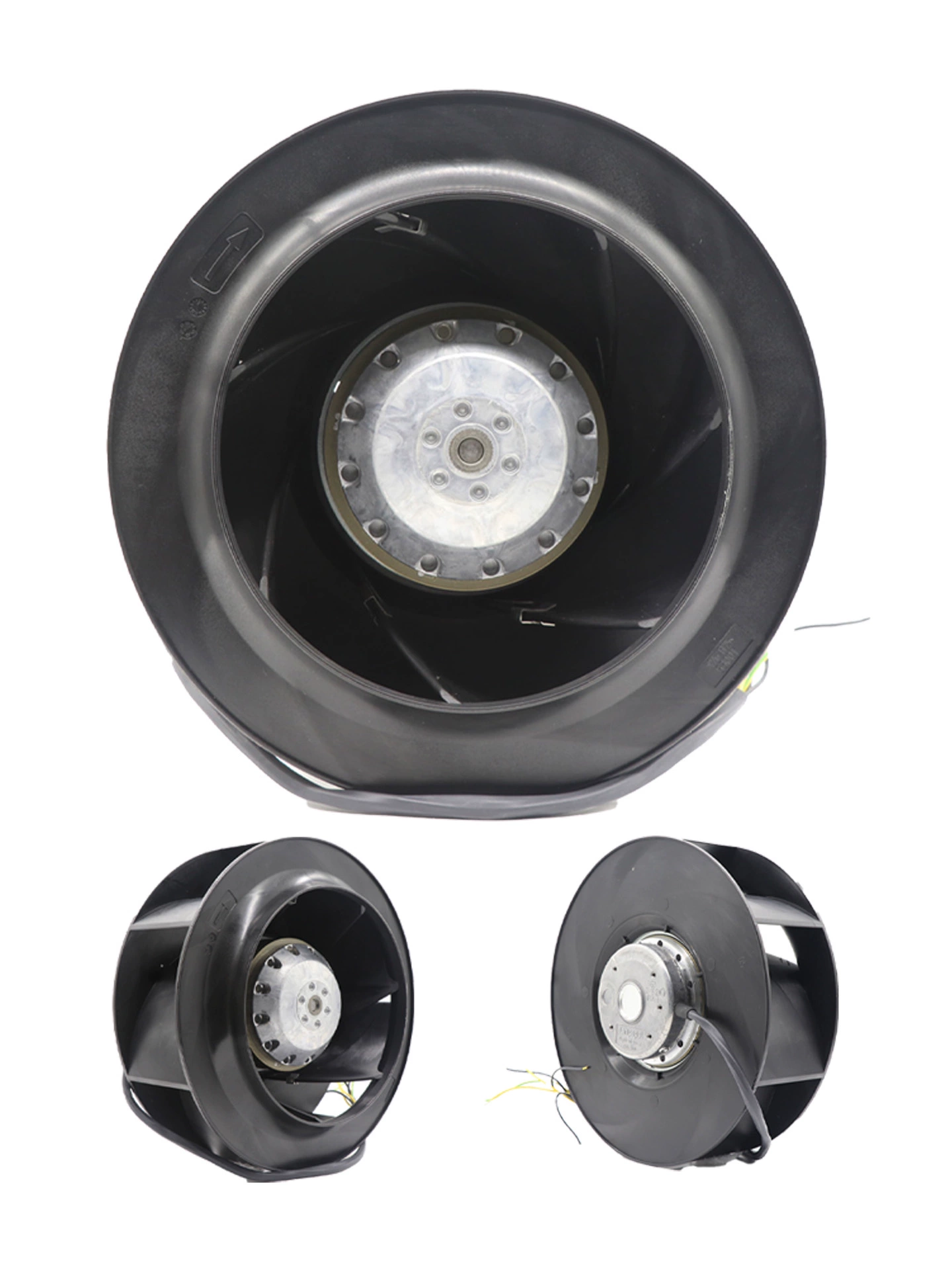

The ebmpapst R2D225-AV02-15 is a 225mm AC centrifugal fan designed for robust air movement in various industrial applications, including Rittal cabinets. This 3-phase fan operates on 400V to 415V AC (50/60Hz). It consumes 120W (50Hz) or 165W (60Hz) of power, drawing 0.26A (50Hz) or 0.27A (60Hz). The fan achieves rotational speeds of 2700 RPM (50Hz) or 3000 RPM (60Hz). Constructed with a PA6 plastic impeller and durable ball bearings, this model features IP44 protection and an M2D068-DF motor, ensuring reliable and continuous operation within demanding thermal management systems.
R2D225-AV02-15 Fan Parameters
Model Number: R2D225-AV02-15
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-Curved Motorized Impeller)
Impeller Diameter: 225mm
Rated Voltage: 400-415 VAC, 3-phase
Frequency: 50 Hz / 60 Hz
Rated Current: 0.26A (50Hz) / 0.27A (60Hz)
Rated Power: 120 W (50Hz) / 165 W (60Hz)
Speed: 2700 RPM (50Hz) / 3000 RPM (60Hz)
Bearing Type: Ball Bearing
IP Rating: IP44
Impeller Material: PA6 Plastic
Motor Type: M2D068-DF
Weight: 2.2 kg
Operating Temperature: -25°C to +60°C
Insulation Class: B
Electrical Connection: Leads
Features: Thermal Overload Protected
Application: Industrial ventilation, cabinet cooling (e.g., Rittal cabinets), machinery cooling, air handling units.
