Description

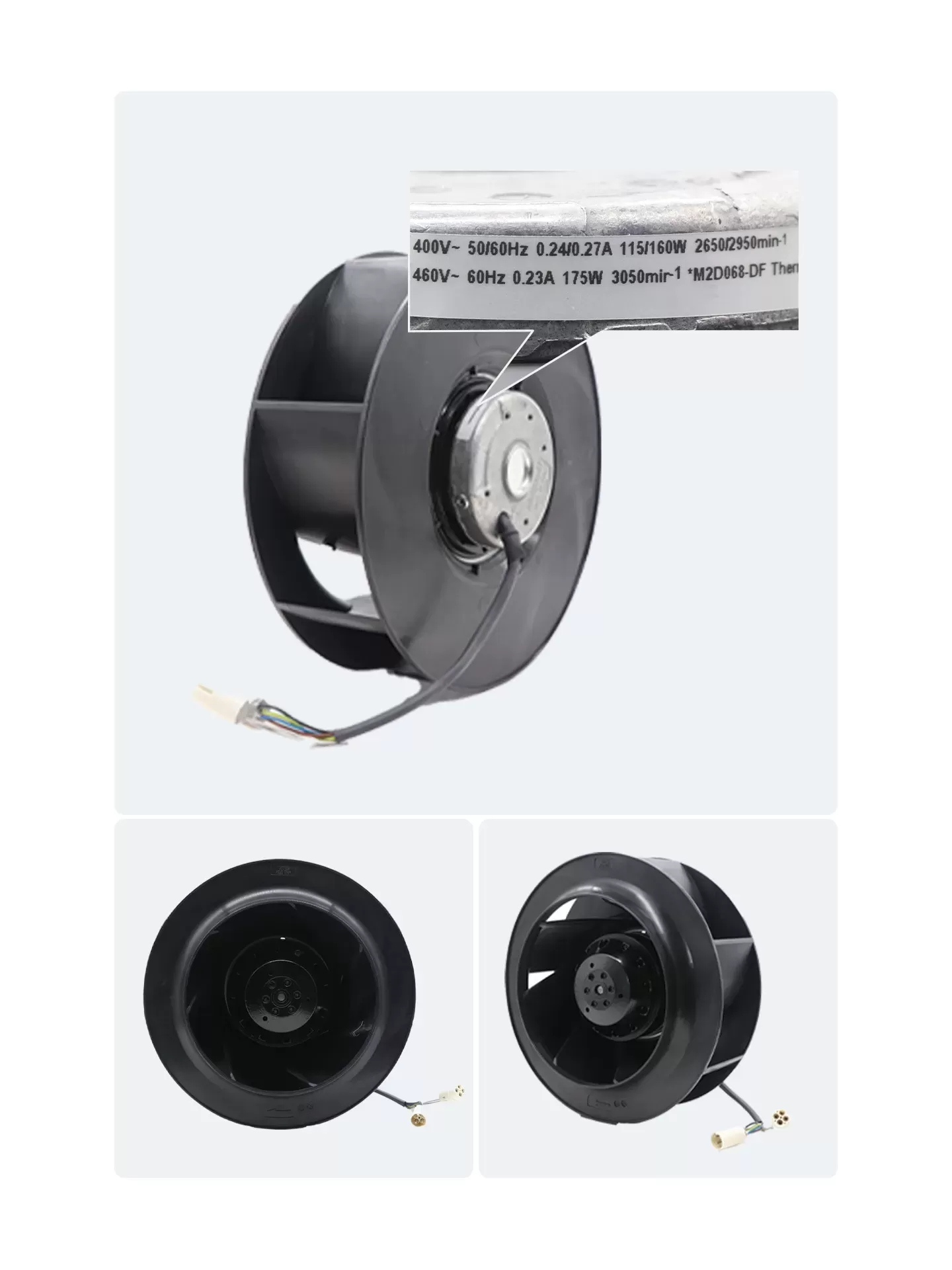

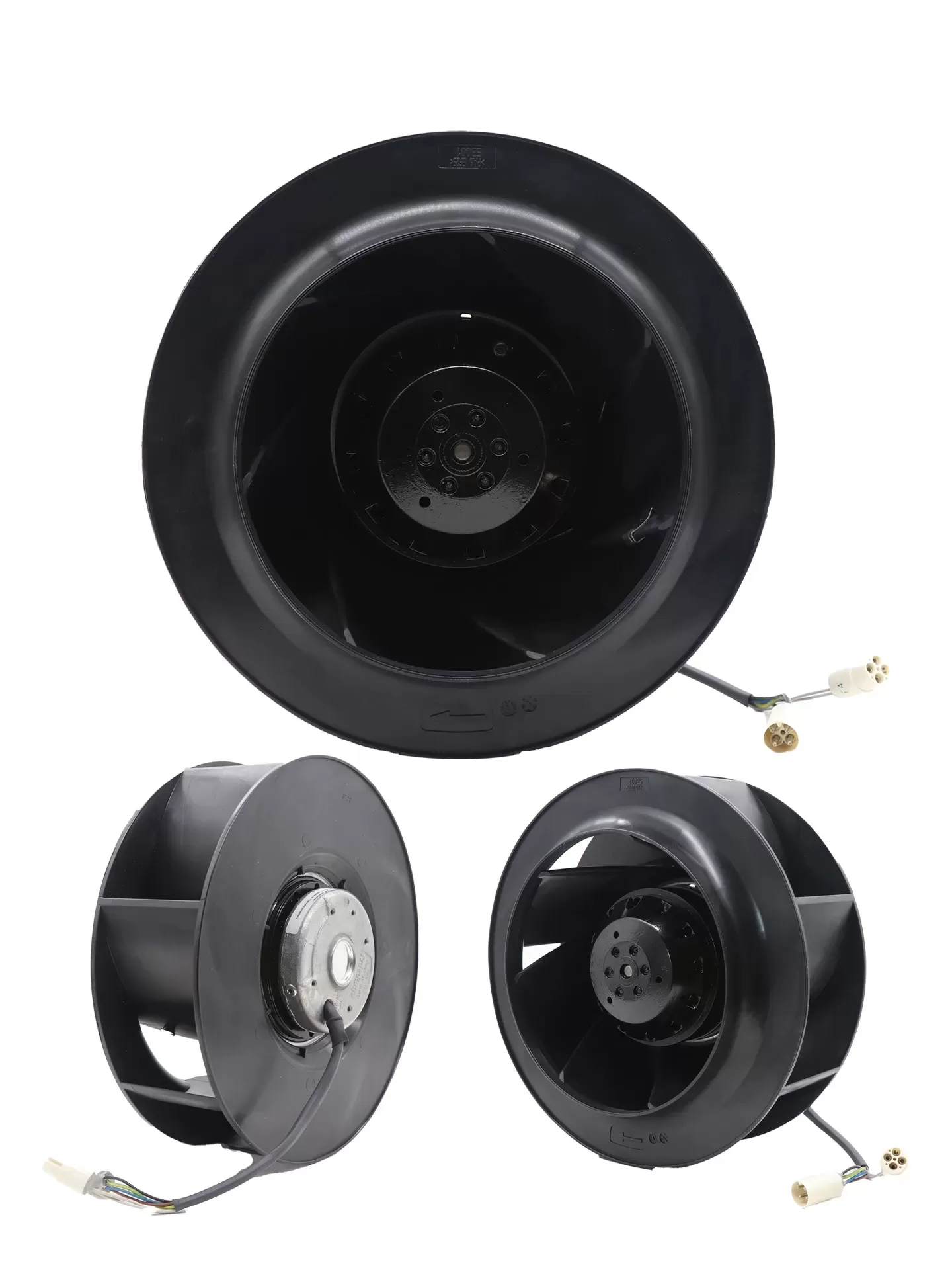

The ebmpapst R2D225-AV02-24 is a 225mm AC centrifugal fan designed for industrial ventilation and cooling applications. Operating on a 3-phase 400V to 460V AC (50/60Hz) supply, this fan draws 0.24A (50Hz) or 0.27A (60Hz) and consumes 115W (50Hz) or 160W (60Hz). It achieves rotational speeds of 2650 RPM (50Hz) or 2950 RPM (60Hz). Constructed with a plastic impeller and ball bearings, this model features IP44 protection and includes a thermal overload protector for enhanced reliability.
R2D225-AV02-24 Fan Parameters
Model Number: R2D225-AV02-24
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-Curved Motorized Impeller)
Impeller Diameter: 225mm
Rated Voltage: 400-460 VAC, 3-phase
Frequency: 50 Hz / 60 Hz
Rated Current: 0.24A (50Hz) / 0.27A (60Hz)
Rated Power: 115 W (50Hz) / 160 W (60Hz)
Speed: 2650 RPM (50Hz) / 2950 RPM (60Hz)
Bearing Type: Ball Bearing
IP Rating: IP44
Impeller Material: Plastic
Motor Type: M2D068-DF
Weight: 2.24 kg
Operating Temperature: -25°C to +65°C
Features: Thermal Overload Protector (TOP) brought out
Application: Industrial machinery cooling, control cabinet cooling, ventilation systems, air handling units.
