Description

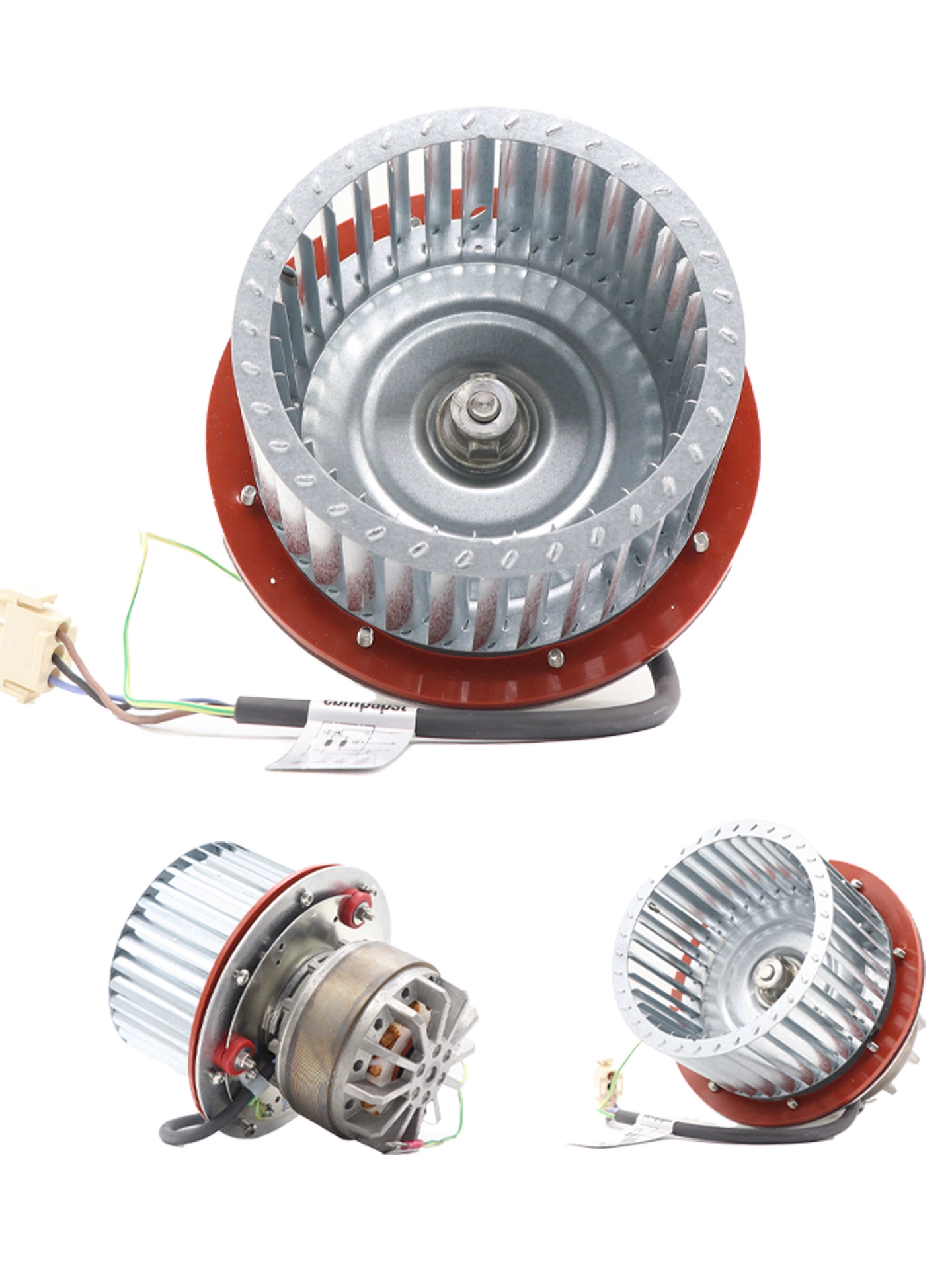

The ebmpapst R2E120-AO16-09 is a robust 120mm AC centrifugal fan specifically engineered for industrial thermal management. Operating on a 230V AC (50/60Hz) power supply, this fan efficiently draws 0.39A (50Hz) or 0.50A (60Hz), consuming 87W (50Hz) or 112W (60Hz). It achieves rotational speeds of 2300 RPM (50Hz) or 2200 RPM (60Hz), providing a maximum airflow of 160 m³/h (50Hz) or 180 m³/h (60Hz) and generating a maximum static pressure of 60 Pa (50Hz) or 70 Pa (60Hz). Built with a durable galvanized steel impeller and long-lasting ball bearings, this IP20-rated fan includes integral thermal overload protection, ensuring reliable and continuous operation in demanding environments such as injection molding machinery and frequency converters.

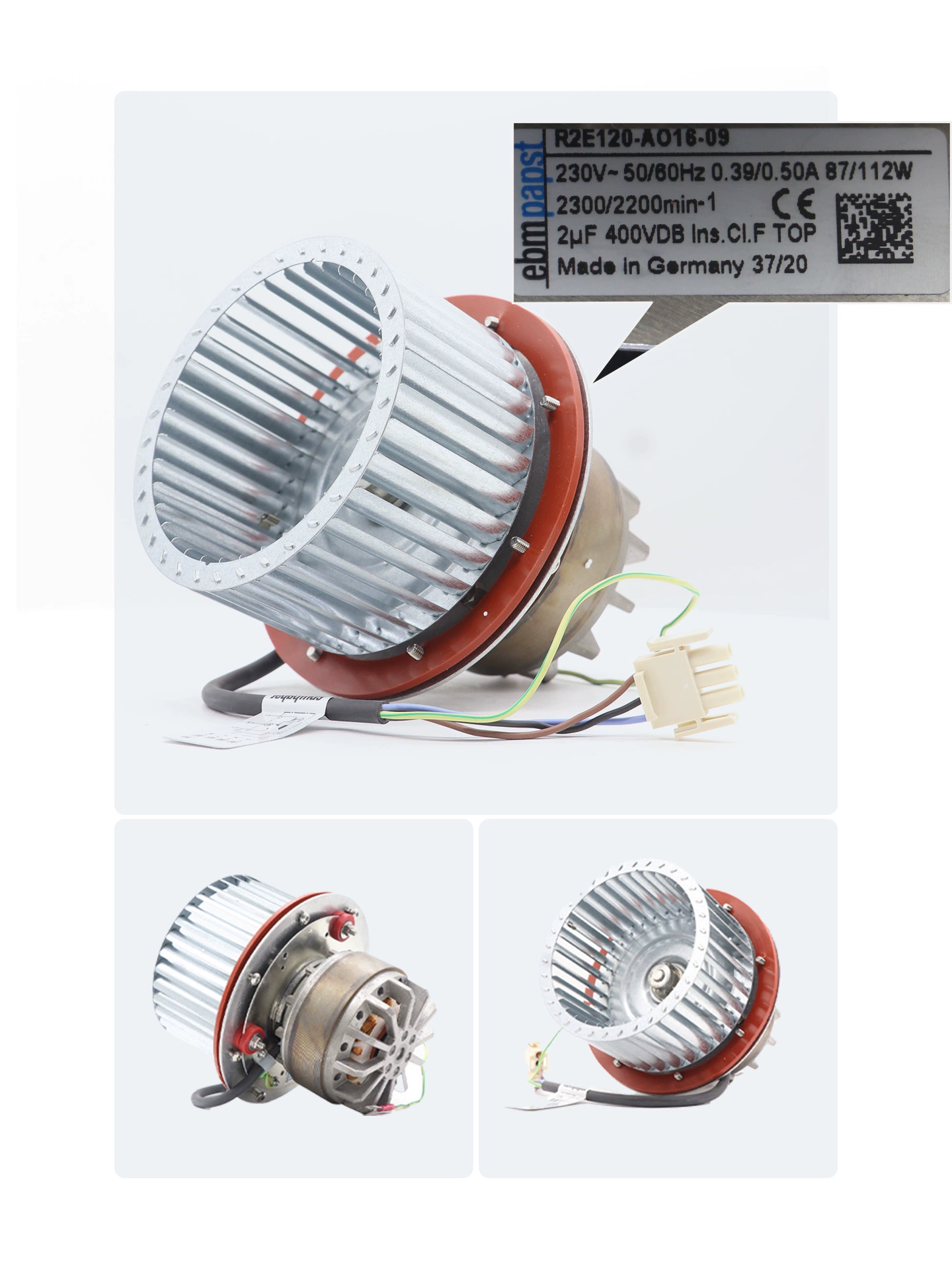

R2E120-AO16-09 Fan Parameters
Model Number: R2E120-AO16-09
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-Curved Motorized Impeller)
Impeller Diameter: 120mm
Rated Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.39A (50Hz) / 0.50A (60Hz)
Rated Power: 87 W (50Hz) / 112 W (60Hz)
Speed: 2300 RPM (50Hz) / 2200 RPM (60Hz)
Max. Airflow (free air): 160 m³/h (50Hz) / 180 m³/h (60Hz)
Max. Static Pressure (at 0 flow): 60 Pa (50Hz) / 70 Pa (60Hz)
Noise Level (LpA at 1m): 52 dB(A) (50Hz) / 55 dB(A) (60Hz)
Bearing Type: Ball Bearing
IP Rating: IP20
Impeller Material: Galvanized steel
Motor Type: M2E068-CF
Weight: 0.9 kg
Operating Temperature: -25°C to +80°C (50Hz) / -25°C to +65°C (60Hz)
Features: Thermal Overload Protected
Application: Electronic cooling, frequency converter industry, general ventilation, small machinery, control panels, injection molding machines.
