Description

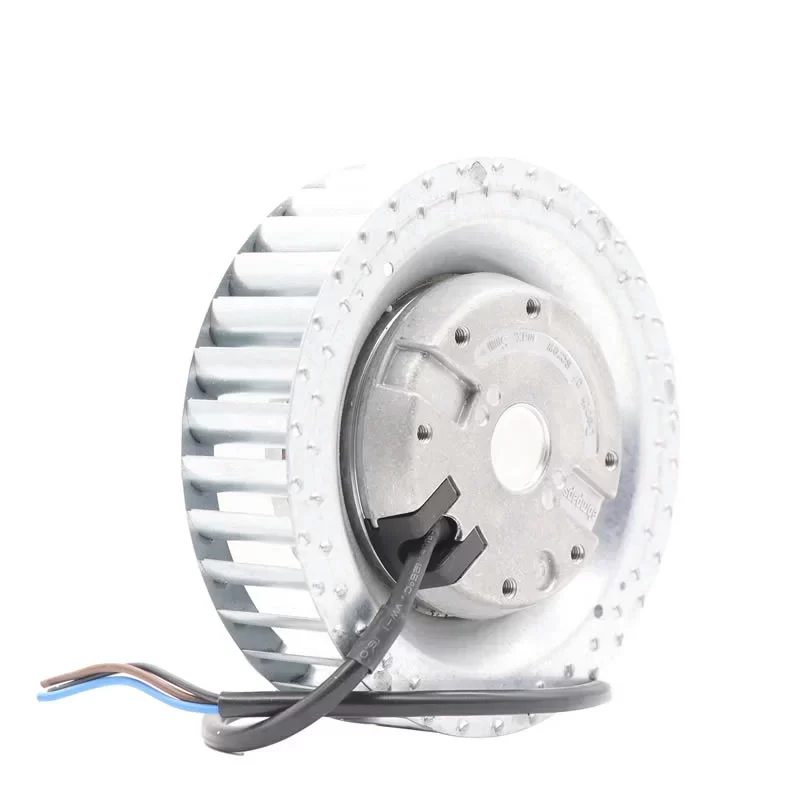

The ebmpapst R2E120-BB76-11/A01 is a high-performance AC backward-curved centrifugal fan with a nominal voltage of 230 VAC and an impeller diameter of 120 mm, specifically engineered for robust thermal management in compact industrial enclosures. Driven by a high-torque M2E052-BF external rotor motor with a power consumption of 20/19 W, this unit features a heavy-duty dual ball bearing system designed for long-term mechanical stability and continuous S1 duty. Its aerodynamic backward-curved impeller, constructed from high-quality PA plastic, delivers a powerful balance of significant airflow and stable static pressure without the need for a scroll housing. Built with a robust galvanized sheet steel base and featuring IP44 protection with Class F insulation, this 0.7 kg fan provides a dependable and durable cooling solution with thermal overload protection for industrial power supplies, server racks, and telecommunications cabinets at the end.
R2E120-BB76-11/A01 Fan Parameters
Model Number: R2E120-BB76-11/A01
Manufacturer: ebmpapst
Motor Model: M2E052-BF
Series: R2E120 Series
Type: AC Centrifugal Fan (Backward-curved)
Impeller Size: 120 mm
Dimensions: 120 x 120 x 54 mm
Weight: 0.7 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Voltage Range: 195 – 250 VAC
Frequency: 50 / 60 Hz
Power Consumption: 20 W (@ 50 Hz) / 19 W (@ 60 Hz)
Nominal Current: 0.09 A (@ 50 Hz) / 0.09 A (@ 60 Hz)
Capacitor: 1 µF / 400 VDB
Speed: 2350 RPM (@ 50 Hz) / 2450 RPM (@ 60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Actual Air Flow: 153 CFM (260 m³/h) @ 50 Hz / 165 CFM (280 m³/h) @ 60 Hz
Actual Static Pressure: 1.00 inAq (250 Pa) @ 50 Hz / 1.20 inAq (300 Pa) @ 60 Hz
Sound Pressure Level: 61 dB(A) (@ 50 Hz) / 63 dB(A) (@ 60 Hz)
Motor Design: 1-phase motor (External rotor)
Motor Protection: Thermal overload protector (TOP) wired internally
Insulation Class: Class F
Electrical Hookup: 4 Lead wires (Multi-wire cable)
Number of Blades: 8
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: Radial
Impeller Material: PA plastic, glass-fiber reinforced
Housing Material: Sheet steel, galvanized
Installation Position: Any
Degree of Protection: IP44
Operating Temperature: -25 – +55 °C
Service Life (L10 @ 40 °C): 35000 h
Standard Compliance: EN 60335-1; CE
Approval Agency: VDE, UL, CSA, CCC
Application
The ebmpapst R2E120-BB76-11/A01 AC centrifugal fan is primarily utilized in electronic cabinet cooling, ventilation for power supplies, server rack extraction, and modular air filtration units.
