Description

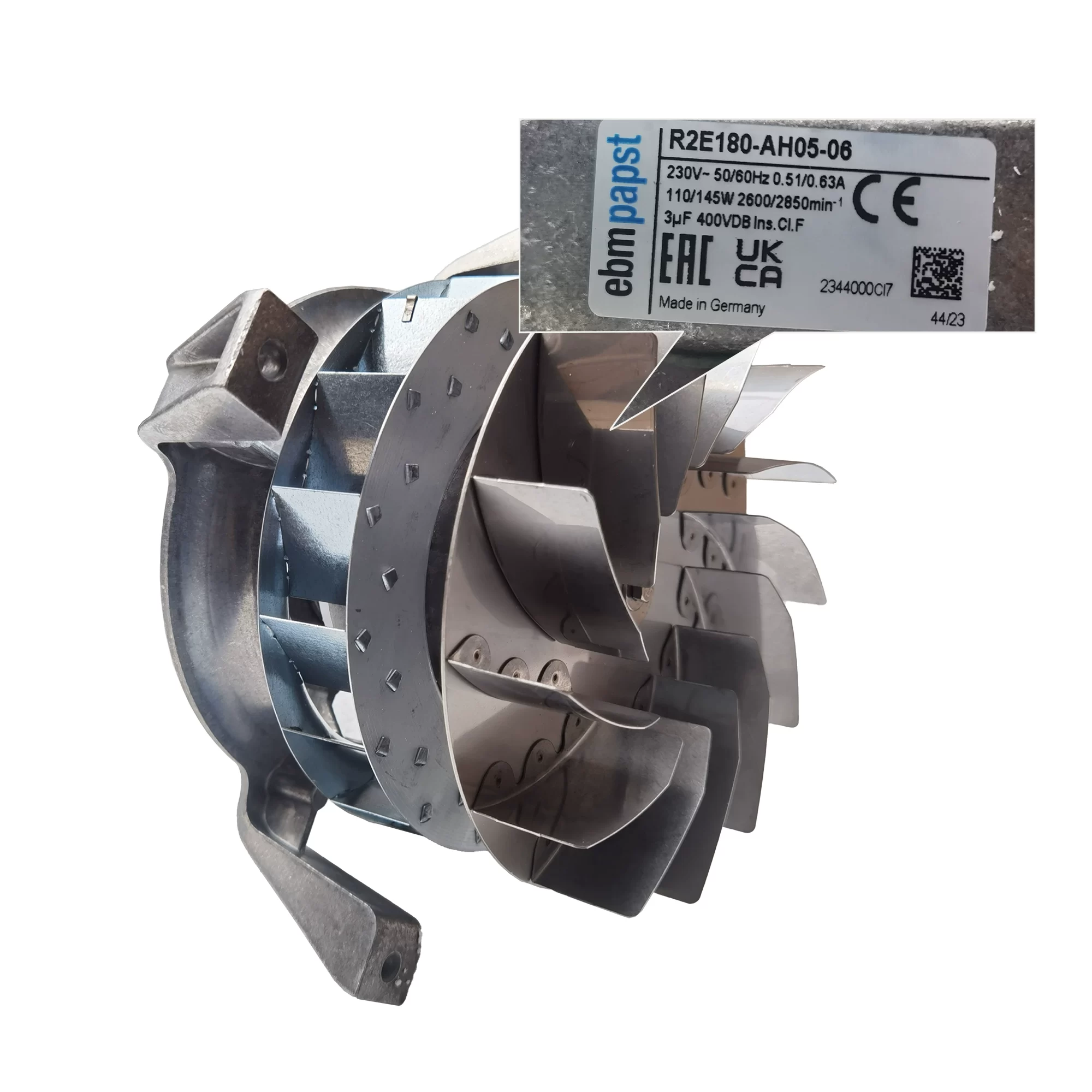

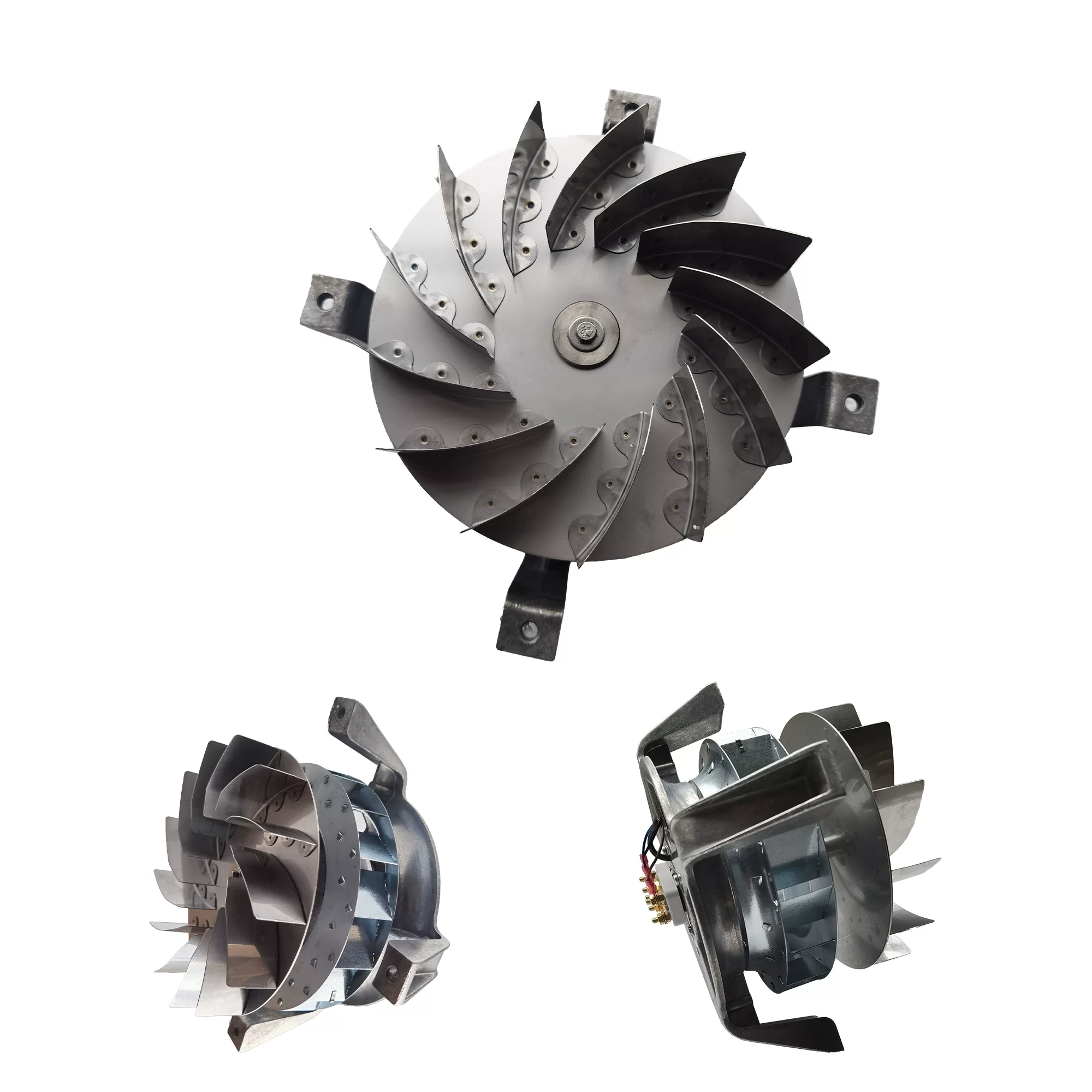

The ebmpapst R2E180-AH05-06 is an AC Centrifugal Fan measuring 180mm in diameter and 65.5mm in depth. It operates on 230 VAC single-phase at 50/60 Hz.For 50 Hz operation, it draws 0.51 A of current with 110 W input power, achieving a speed of 2600 RPM.For 60 Hz operation, it draws 0.63 A of current with 145 W input power, achieving a speed of 2850 RPM.The fan provides an airflow of 515 m³/h (equivalent to 303.1 CFM). Its noise level is 69 dB(A). It features a robust ball bearing system for durability and has an IP20 ingress protection rating. The impeller is made of aluminum, and the motor is an external rotor motor with a capacitor. This fan is designed for various air handling and ventilation applications, commonly used in central air conditioning units, building ventilation systems, and industrial processing.
R2E180-AH05-06 Fan Parameters
Model: R2E180-AH05-06
Manufacturer: ebmpapst
Type: AC Centrifugal Fan
Fan dimensions: 180mm diameter, 65.5mm depth
Rated Voltage: 230 VAC
Operating Voltage Range: 195 to 255 VAC
Frequency: 50/60 Hz
At 50Hz:
Rated Current: 0.51 A
Power Consumption: 110 W
Speed: 2600 RPM
At 60Hz:
Rated Current: 0.63 A
Power Consumption: 145 W
Speed: 2850 RPM
Airflow: 515 m³/h (303.1 CFM)
Static Pressure: 300 Pa (1.205 inH2O)
Noise Level: 69 dB(A)
Bearing Type: Ball Bearing
Termination: Terminal Box
Impeller Material: Aluminum
Insulation Class: B
Protection Level: IP20
Operating Temperature: -25 to 70°C
Storage Temperature: -40 to 80°C
Weight: 1.8 kg
Motor Type: M2E068-DF, external rotor motor with capacitor
Motor Protection: Thermal overload protector TOP wired internally
Application: Air handling units, ventilation systems, central air conditioning, industrial processing.
