R2E180-AS77-05 ebmpapst 230V 180mm AC Centrifugal Fan

Description

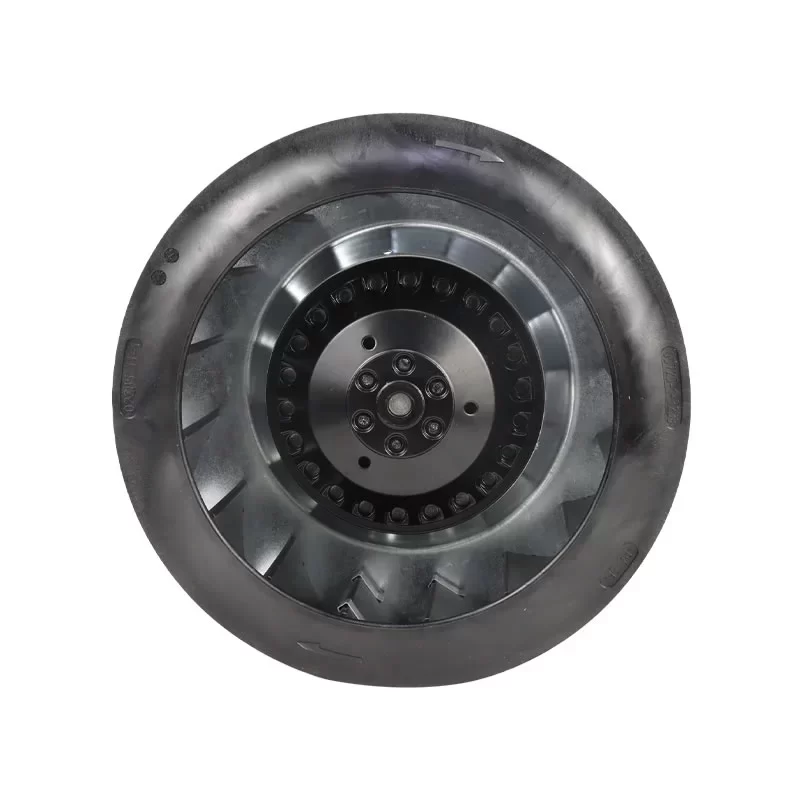

The ebmpapst R2E180-AS77-05 is a specialized 230 V single-phase AC centrifugal fan featuring a 180 mm backward-curved impeller made of high-grade black PA plastic. Powered by the M2E068-BF external rotor motor, this unit is designed for efficient air displacement in high-pressure systems, delivering a steady speed of 2300 RPM. Engineered for S1 continuous operation, it includes an integrated thermal overload protector and maintenance-free ball bearings to ensure long-term reliability. This compact fan is an ideal thermal management solution for electronic cabinet cooling, ventilation in laboratory equipment, and small-scale HVAC applications, operating effectively within a defined ambient temperature range of -25 °C up to 40 °C.

R2E180-AS77-05 Fan Parameters
Model Number: R2E180-AS77-05
Manufacturer: ebmpapst
Motor Model: M2E068-BF
Series: AC Centrifugal Series
Type: AC Centrifugal Fan (Backward-Curved)
Impeller Size: 180 mm
Dimensions: 180 x 180 x 62 mm
Bearing Type: Ball Bearing
Nominal Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Weight: 1.37 kg
Input Power: 82 W (50 Hz) / 100 W (60 Hz)
Nominal Current: 0.36 A (50 Hz) / 0.45 A (60 Hz)
Speed: 2300 RPM
Motor Capacitor: 2 µF / 450 VDB
Motor Design: Single-phase External Rotor Motor (PSC)
Motor Protection: Thermal overload protector (TOP) wired internally
Insulation Class: Class B
Touch Current: < 0.75 mA
Termination: Variable cable
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inAq)
Number of Blades: 16
Direction of Rotation: Clockwise, seen on rotor
Mounting Position: Shaft horizontal or rotor on bottom
Condensate Discharge Holes: Rotor-side
Mode of Operation: S1 (Continuous operation)
Impeller Material: PA plastic, black
Rotor Surface: Coated in black
Humidity Class: F1-2
Degree of Protection: IP44
Operating Temperature: -25 – +40 °C (50 Hz) / -25 – +35 °C (60 Hz)
Standard Compliance: EN 60335-1, CE
Approval Agency: CCC, EAC

Application
The ebmpapst R2E180-AS77-05 centrifugal fan is primarily utilized in electronic cabinet cooling, small air handling units, laboratory equipment ventilation, cleanroom filter units, and compact HVAC systems.
