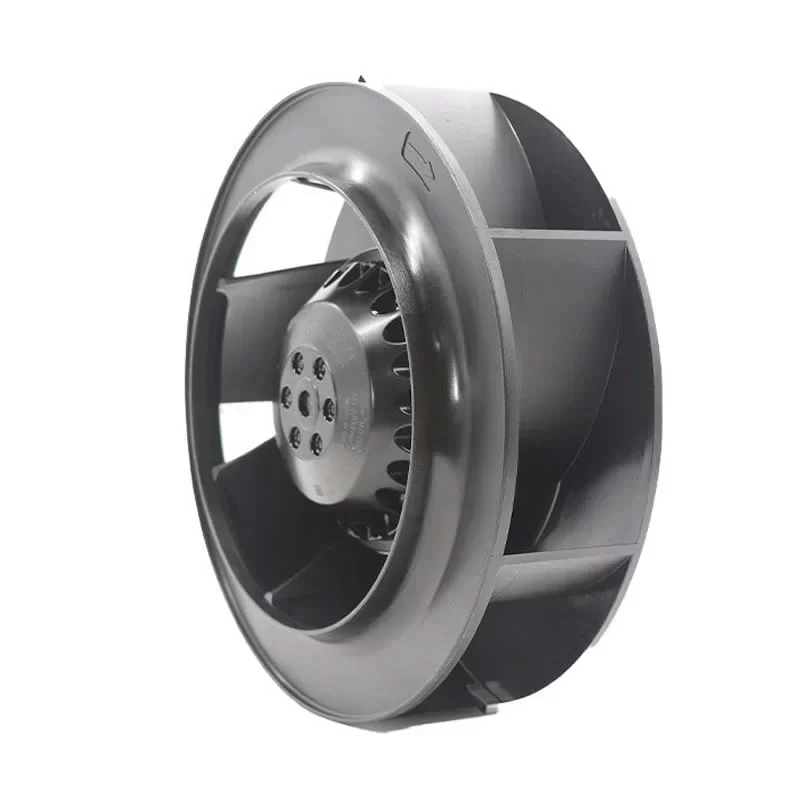

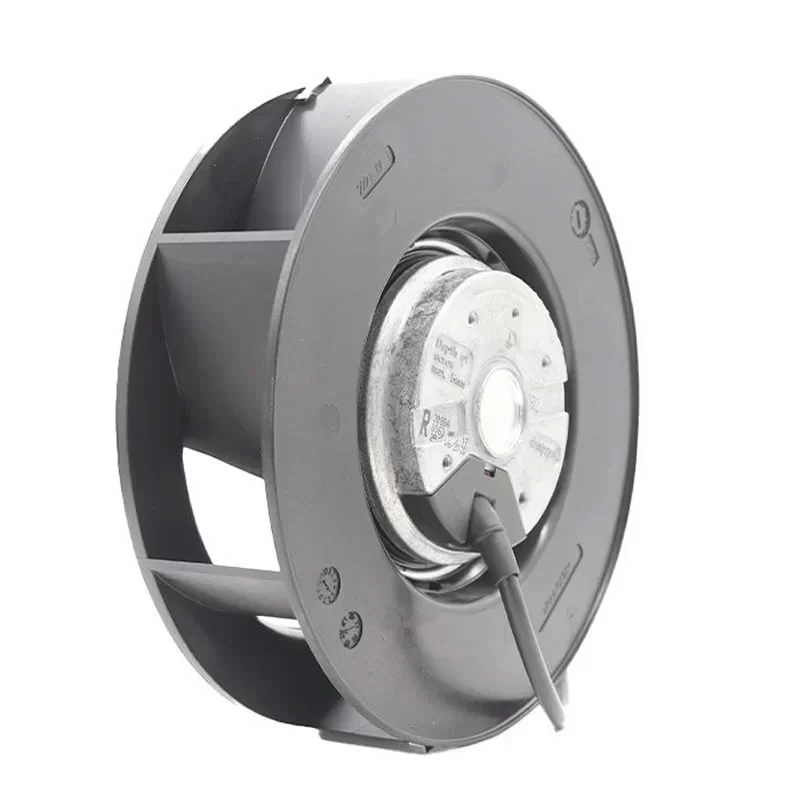

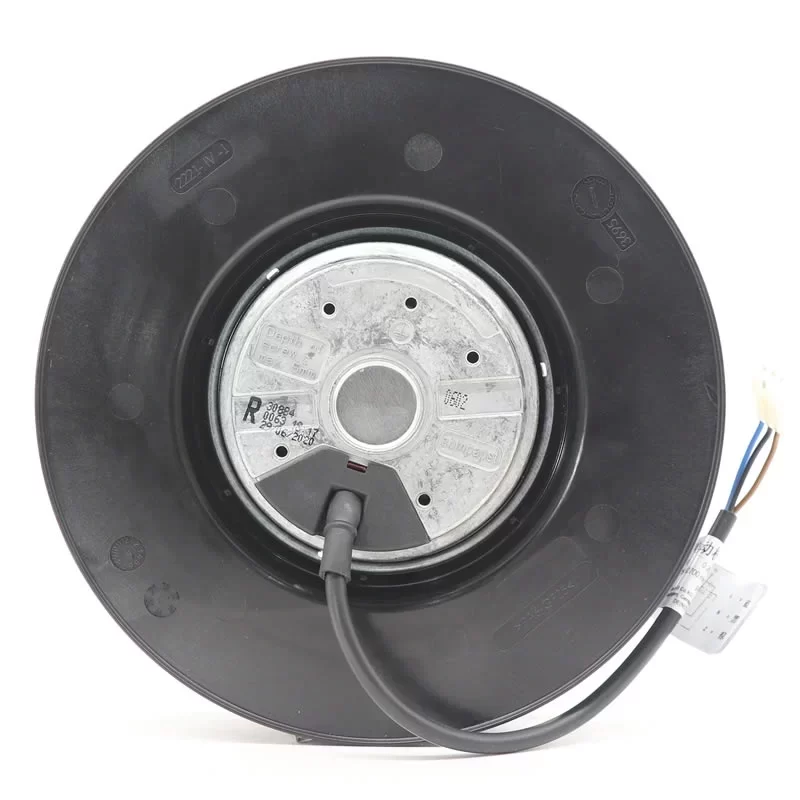

R2E190-AE77-B8 ebmpapst 230V 190mm AC Centrifugal Fan

Description

The ebmpapst R2E190-AE77-B8 is a high-performance 230VAC AC Centrifugal Fan featuring a backward-curved, single-intake impeller, designed as the definitive high-efficiency successor to the legacy R2E190-AO26-30 model, specifically engineered for mission-critical cooling in Industrial Frequency Converters and AHU systems. Driven by a 1-phase M2E068-BF external rotor motor with maintenance-free ball bearings, this 1.2 kg unit operates on a 230 VAC supply delivering a Max. Power Consumption of 58 / 75 W and a Max. Current Draw of 0.26 / 0.34 A at a rated speed of 2500 / 2700 RPM. This High-performance unit achieves a Max. Air Flow of 335.5 / 359.0 CFM (570.0 / 610.0 m³/h / 9.50 / 10.17 m³/min) and a Max. Static Pressure of 24.47 / 28.55 mmH₂O (240.0 / 280.0 Pa / 0.96 / 1.12 inAq). Featuring a thermal overload protector (TOP) and Class B insulation, this 7-blade unit is optimized for industrial VFD systems requiring seamless legacy replacement and robust airflow performance at the end.

R2E190-AE77-B8 Fan Parameters
Model Number: R2E190-AE77-B8
Legacy Model: R2E190-AO26-30
Motor Model: M2E068-BF
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-curved, single-intake)
Impeller Size: 190 mm
Dimensions: 190 x 68.5 mm
Weight: 1.2 kg
Bearing Type: Ball bearing
Phase: 1~
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Max. Current Draw: 0.26 / 0.34 A
Max. Power Consumption: 58 / 75 W
Rated Speed: 2500 / 2700 RPM
Max. Air Flow: 335.5 / 359.0 CFM (570.0 / 610.0 m³/h / 9.50 / 10.17 m³/min)
Max. Static Pressure: 24.47 / 28.55 mmH₂O (240.0 / 280.0 Pa / 0.96 / 1.12 inAq)
Working Air Flow: 570.0 / 610.0 m³/h
Static Pressure Increase: 240.0 / 280.0 Pa
Capacitor: 2 µF / 400 VDB
Starting Current: 0.40 / 0.41 A
Number of Blades: 7
Touch Current (IEC 60990): < 0.75 mA Motor Protection: Thermal overload protector (TOP) internally connected Insulation Class: Class B Degree of Protection: IP44 (installation-dependent) Impeller Material: PA plastic Rotor Surface: Painted black Direction of Rotation: Clockwise (viewed toward rotor) Installation Position: Any Ambient Temperature (Max.): 50 / 55 °C Min. Operating Temperature: -25 °C Standard Compliance: EN 60034-1; EN 60204-1; CE; UL 1004-3; CCC; CSA C22.2 No. 77 Application The ebmpapst R2E190-AE77-B8 centrifugal fan is the primary cooling component for industrial frequency converters and modular ventilation systems requiring high-efficiency backward-curved impellers and direct legacy replacement in 230V AC environments.
