R2E190-RA26-05 ebmpapst 52W 230V medical fan

Description

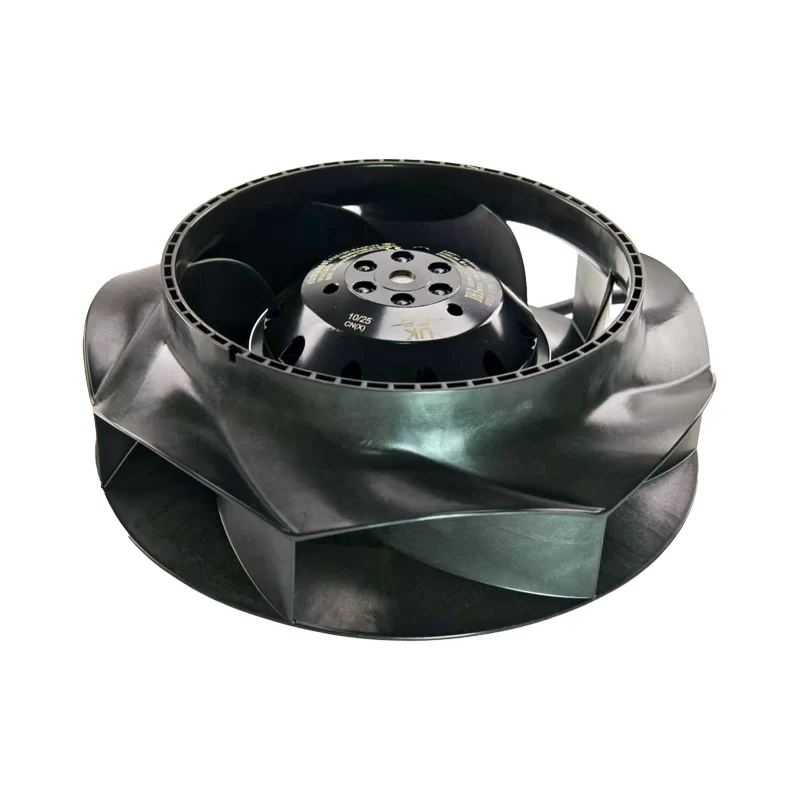

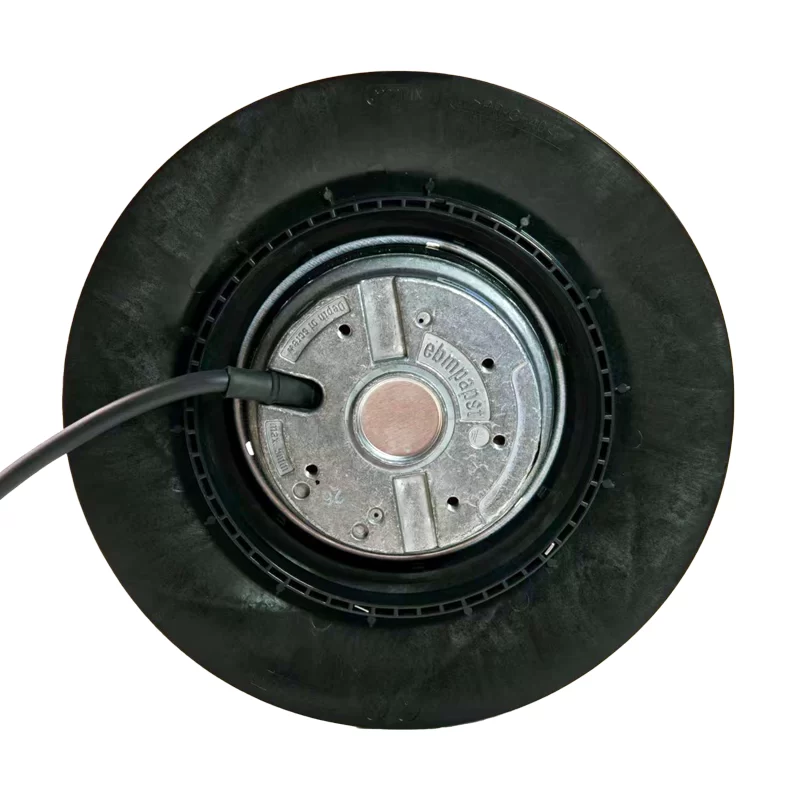

The ebmpapst R2E190-RA26-05 is an AC Centrifugal Fan with dimensions of 190mm diameter and 68mm depth, driven by a M2E068-BF motor. It operates on a 1-phase 230VAC supply across 50/60Hz. At 50Hz, it draws 0.23A of current with 52W power and runs at 2350RPM. At 60Hz, it draws 0.29A with 65W power and runs at 2500RPM. The impeller is made of PP plastic and has 7 blades, rotating clockwise when viewed toward the rotor. It uses a ball bearing system, is IP44 rated, and features 4 wire leads for termination. It operates efficiently in ambient temperatures from -25 to 65°C and includes an internally connected Thermal Overload Protector (TOP). The fan is approved by VDE, CCC, EAC and conforms to EN 60034-1, EN 60204-1, EN 60335-1, CE standards. This fan is suitable for applications requiring focused or high-pressure airflow, such as in control cabinets, ventilation systems, and industrial equipment.

R2E190-RA26-05 Fan Parameters
Model: R2E190-RA26-05
Manufacturer: ebmpapst
Type: AC Centrifugal Fan
Motor: M2E068-BF
Phase: 1~
Dimensions: 190 mm diameter x 68 mm depth
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Speed: 2350/2500 RPM
Power Consumption: 52/65 W
Current Draw: 0.23/0.29 A
Starting Current: 0.37 A
Capacitor: 1.5 µF
Capacitor Voltage: 400 V
Capacitor Standard: S0 (CE)
Bearing: Ball bearing
Rotor Surface: Painted black
Impeller Material: PP plastic
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Termination: 4 Wire Leads
IP Rating: IP44
Insulation Class: B
Moisture / Environmental Protection Class: H1
Min Operating Temperature: -25 °C
Max Operating Temperature: 65 °C
Min Permitted Ambient Temperature (Transport/Storage): -40 °C
Max Permitted Ambient Temperature (Transport/Storage): 80 °C
Installation Position: Shaft horizontal or rotor on bottom; rotor on top on request
Condensation Drainage Holes: On rotor side
Mode: S1
Touch Current: < 0.75 mA Motor Protection: Thermal Overload Protector (TOP) internally connected With Cable: Variable Protection Class Assignment: I Conformity with Standards: EN 60034-1, EN 60204-1, EN 60335-1, CE Approval: VDE, CCC, EAC Application: Control cabinets, ventilation systems, industrial equipment.
