Description

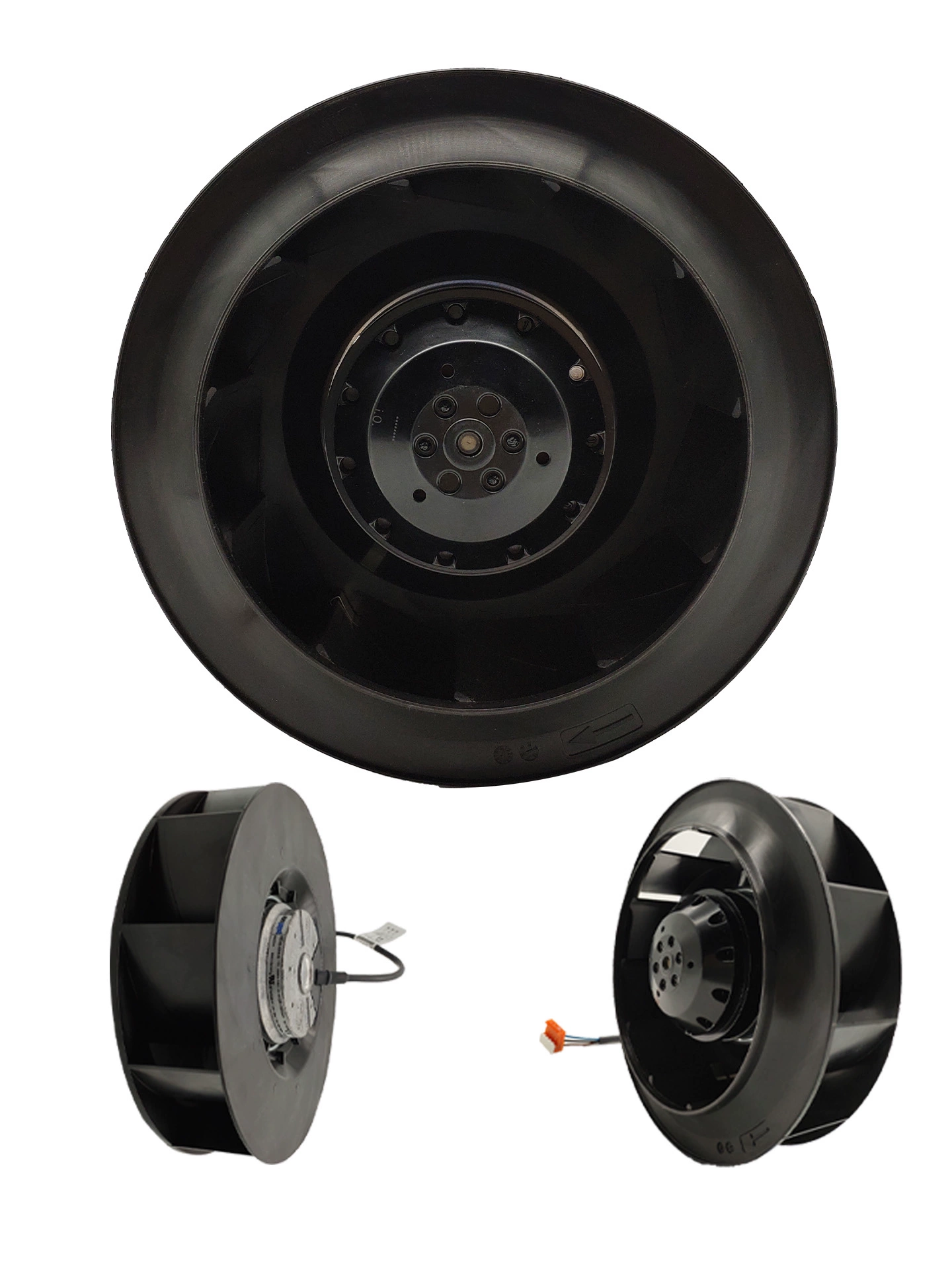

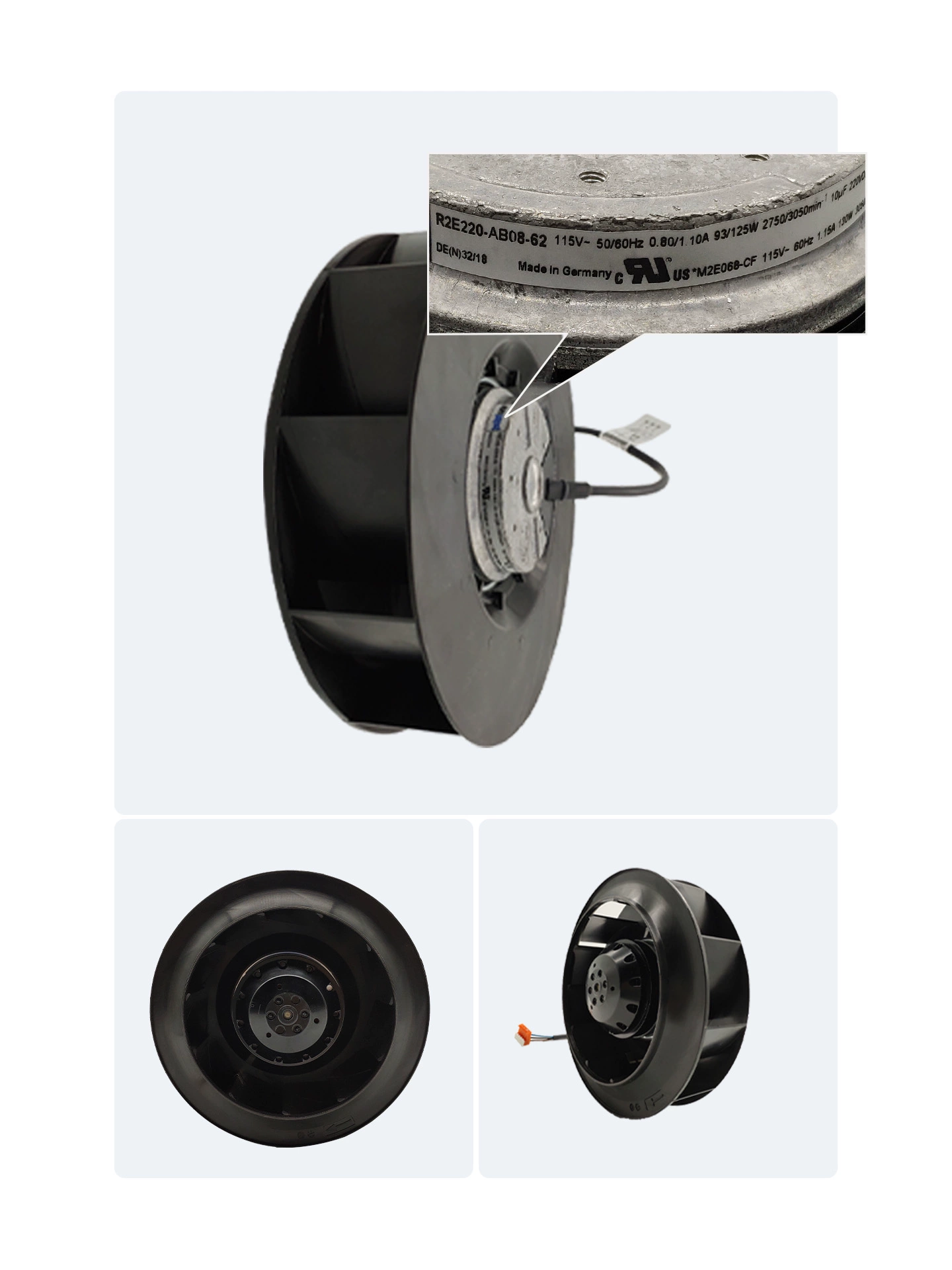

The ebmpapst R2E220-AB08-62 is a high-performance 220mm AC centrifugal fan with backward-curved blades, designed for efficient air movement in applications such as central air conditioning units and ventilation systems. Operating on a 115V AC (1-phase) power supply at both 50Hz and 60Hz, this fan draws approximately 0.8A (50Hz) or 1.1A (60Hz) of current, consuming 93W (50Hz) or 125W (60Hz) of power. It achieves rotational speeds of 2750 RPM (50Hz) and 3050 RPM (60Hz). Utilizing durable ball bearings, this model ensures a long operational life and provides reliable performance.
R2E220-AB08-62 Fan Parameters
Model Number: R2E220-AB08-62
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-curved impeller, without housing)
Nominal Diameter: 220 mm
Motor: M2E068-CF
Rated Voltage: 115 VAC
Phase: 1~
Frequency: 50 Hz / 60 Hz
Rated Current: 0.8A (50Hz) / 1.1A (60Hz)
Rated Power: 93 W (50Hz) / 125 W (60Hz)
Speed: 2750 RPM (50Hz) / 3050 RPM (60Hz)
Bearing Type: Ball Bearing
Rotor Material: Sheet steel, coated in black plastic
Impeller Material: Plastic (PA 6.6)
Direction of Rotation: Clockwise, viewed on rotor
Electrical Connection: Leads
Motor Protection: Thermal overload protector (TOP) internally connected
Operating Temperature: -25°C to +30°C (50Hz) / -25°C to +35°C (60Hz)
Conformity: CE, UL 2111
Application: Central air conditioning units, ventilation systems, refrigeration, inverters, general industrial equipment.
