Description

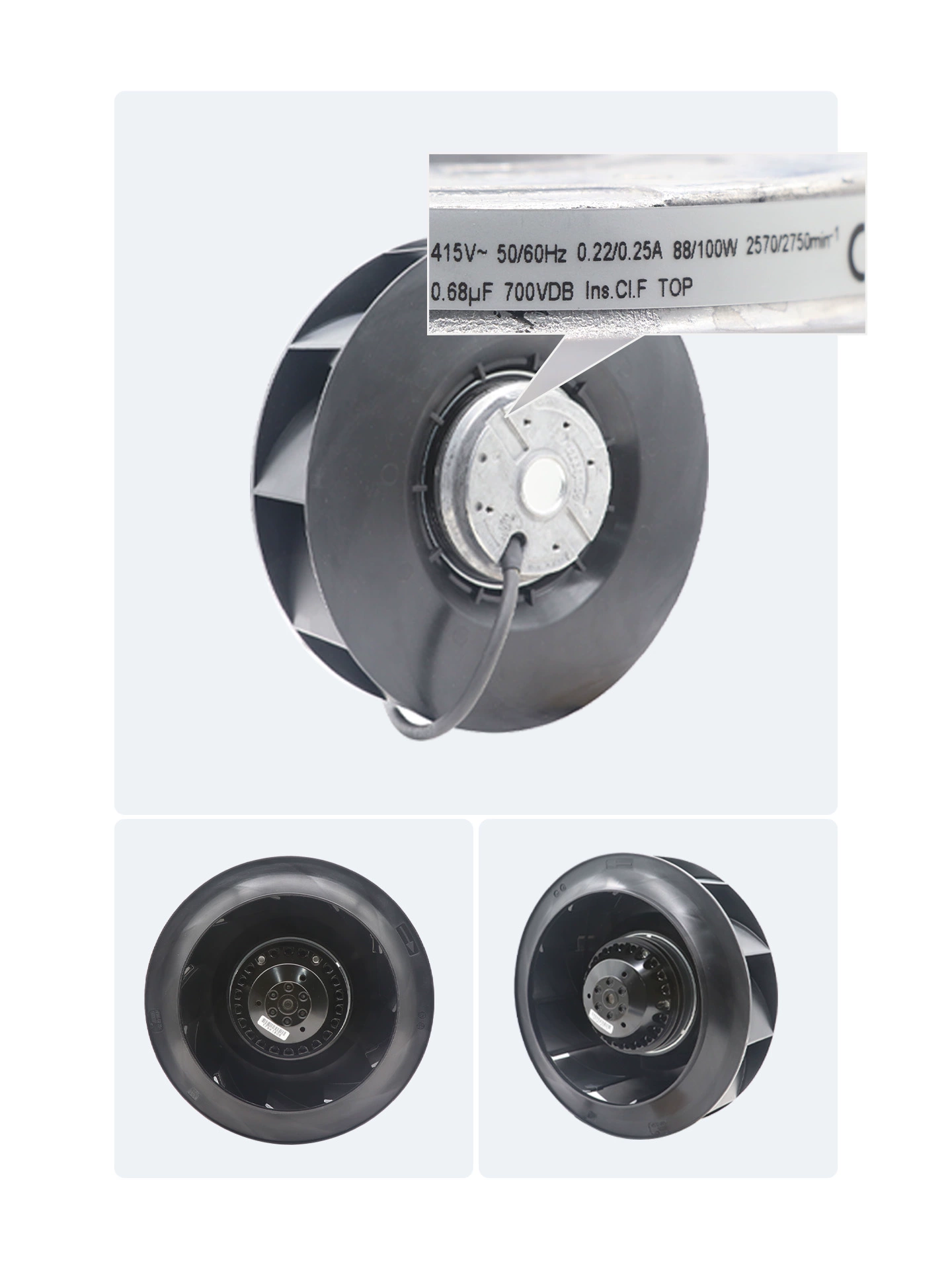

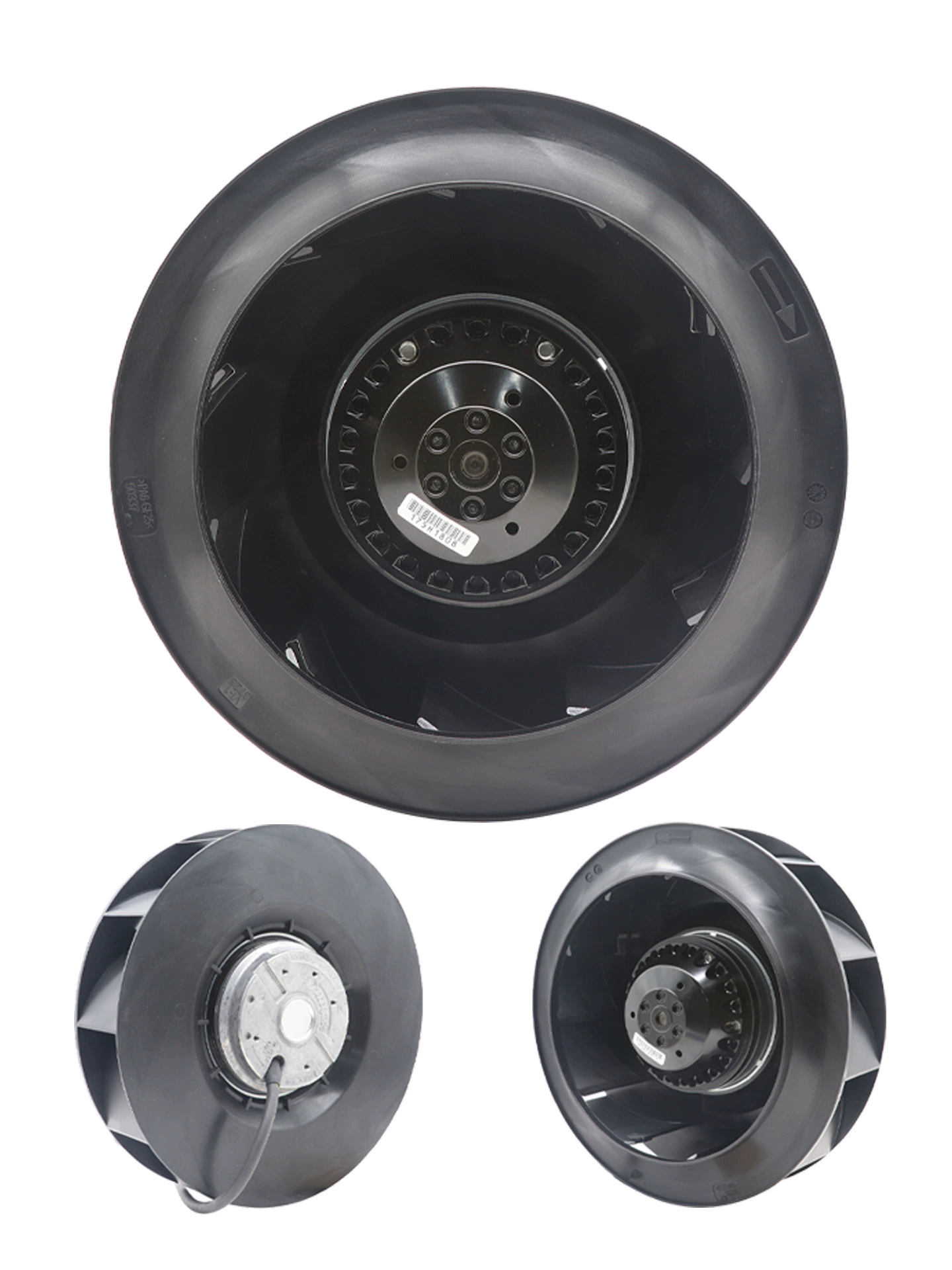

The ebmpapst R2E220-AD19-11 is a high-performance 220mm AC centrifugal fan with backward-curved blades, designed for efficient air movement in various ventilation systems and machinery. Operating on a 415V AC (1-phase) power supply at both 50Hz and 60Hz, this fan precisely draws 0.22A (50Hz) or 0.25A (60Hz) of current, consuming 88W (50Hz) or 100W (60Hz) of power. It achieves rotational speeds of 2570 RPM (50Hz) and 2750 RPM (60Hz). Featuring durable ball bearings and an IP44 degree of protection, this model ensures a long operational life and provides reliable performance in demanding environments.
R2E220-AD19-11 Fan Parameters
Model Number: R2E220-AD19-11
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-curved impeller, without housing)
Nominal Diameter: 220 mm
Rated Voltage: 415 VAC
Phase: 1~
Frequency: 50 Hz / 60 Hz
Rated Current: 0.22A (50Hz) / 0.25A (60Hz)
Rated Power: 88 W (50Hz) / 100 W (60Hz)
Speed: 2570 RPM (50Hz) / 2750 RPM (60Hz)
Bearing Type: Ball Bearing
Rotor Material: Sheet steel, coated in black plastic
Impeller Material: Sheet steel, coated in black plastic
Direction of Rotation: Clockwise, viewed on rotor
Electrical Connection: Plug terminal
Motor Protection: Thermal overload protector (TOP) internally connected
Weight: 2.7 kg
Operating Temperature: -25°C to +80°C
Degree of Protection: IP44
Conformity: CE
Application: Central air conditioning units, ventilation systems, heat pumps, cleanroom technology, refrigeration.
