Description

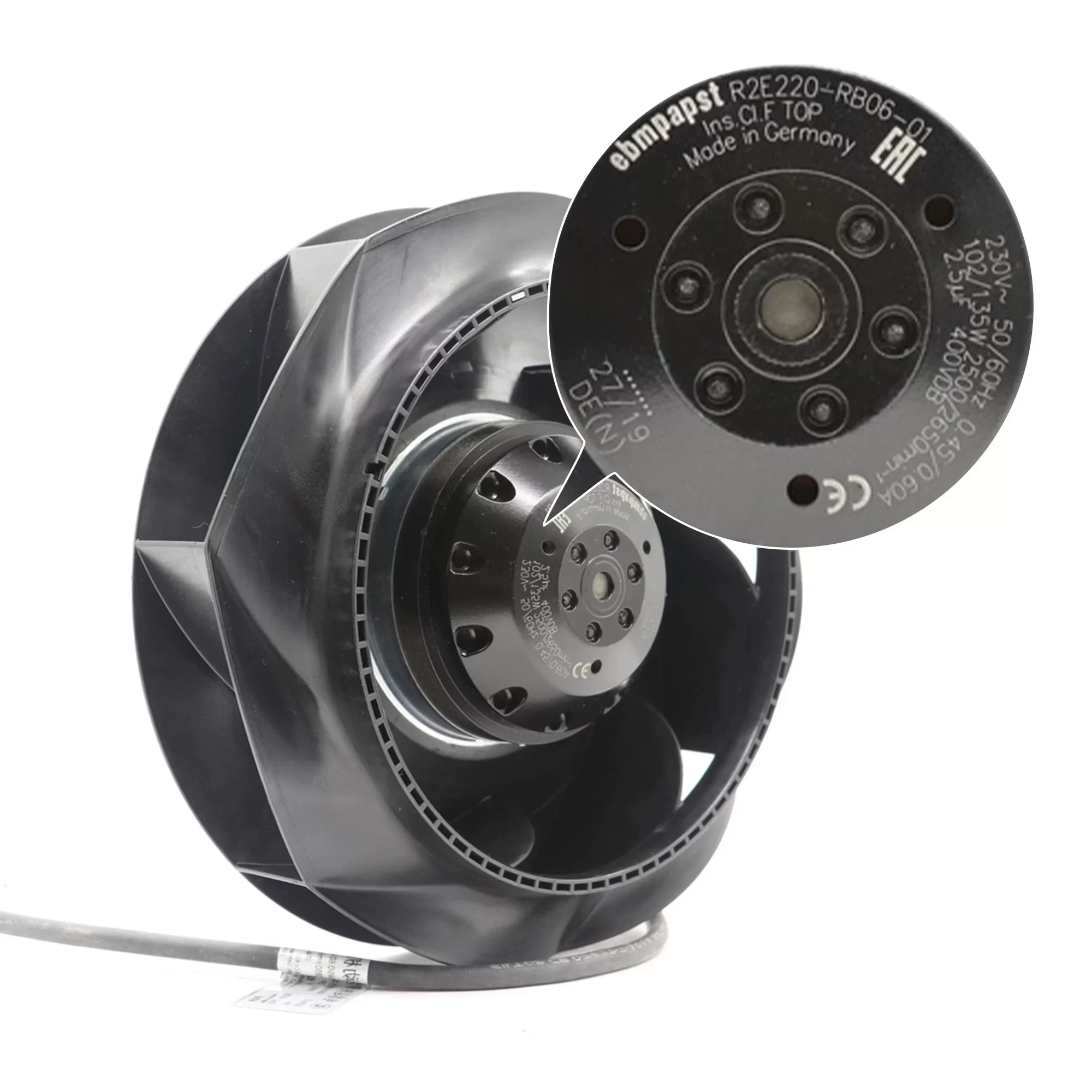

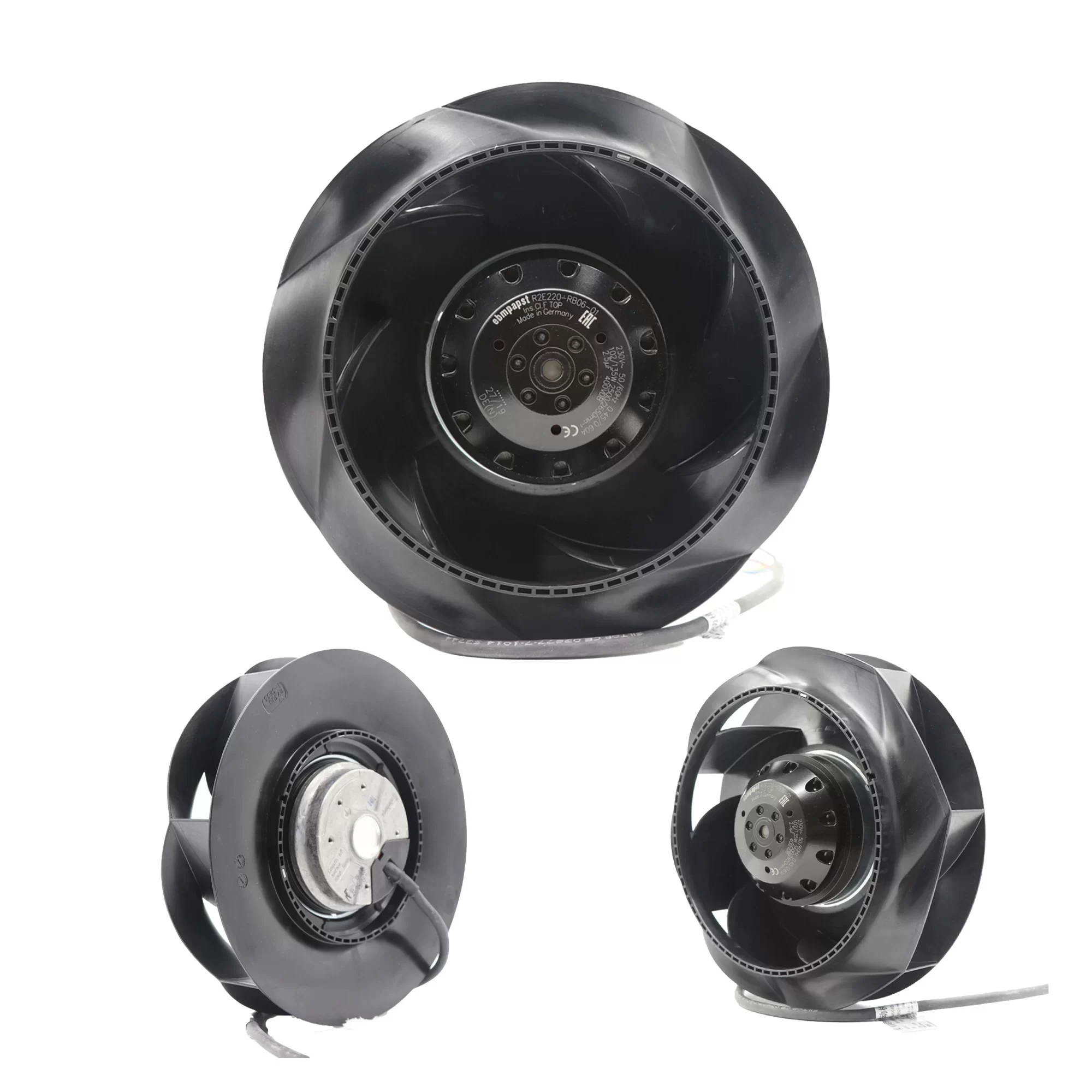

The ebmpapst R2E220-RB06-01 is a high-performance AC centrifugal fan, featuring the M2E068-CF motor and measuring 220mm in diameter. Designed for a wide range of air intake applications, it operates at 230VAC with a dual frequency of 50Hz and 60Hz. It consumes 102W (0.45A) at 50Hz and 135W (0.60A) at 60Hz. This fan delivers a robust airflow of 600m³/h and a static pressure of 260Pa. It operates at speeds of 2500RPM (50Hz) and 2650RPM (60Hz), with noise levels of 64dB(A) at 50Hz and 69dB(A) at 60Hz. Featuring durable ball bearings and a plastic impeller, it boasts an IP44 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -25 to 75°C and is certified by GOST.
R2E220-RB06-01 Fan Parameters
Manufacturer: ebmpapst
Model: R2E220-RB06-01
Motor: M2E068-CF
Fan Type: AC Centrifugal Fan
Dimensions: 220 mm diameter
Rated Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Current Rating: 0.45 A (50Hz), 0.60 A (60Hz)
Power Consumption: 102 W (50Hz), 135 W (60Hz)
Airflow: 600 m³/h
Static Pressure: 260 Pa
Speed: 2500 RPM (50Hz), 2650 RPM (60Hz)
Noise Level: 64 dB(A) (50Hz), 69 dB(A) (60Hz)
Bearing Type: Ball Bearing
Termination: Not specified
Operating Temperature: -25 ~ 75°C
Blade Material: Plastic
IP Rating: IP44
Weight: 3.1 kg
Approval Agency: GOST
Application: This ebmpapst AC centrifugal fan is suitable for air intake applications in various industrial settings, drive cooling systems, and general ventilation where high airflow and static pressure are required.
