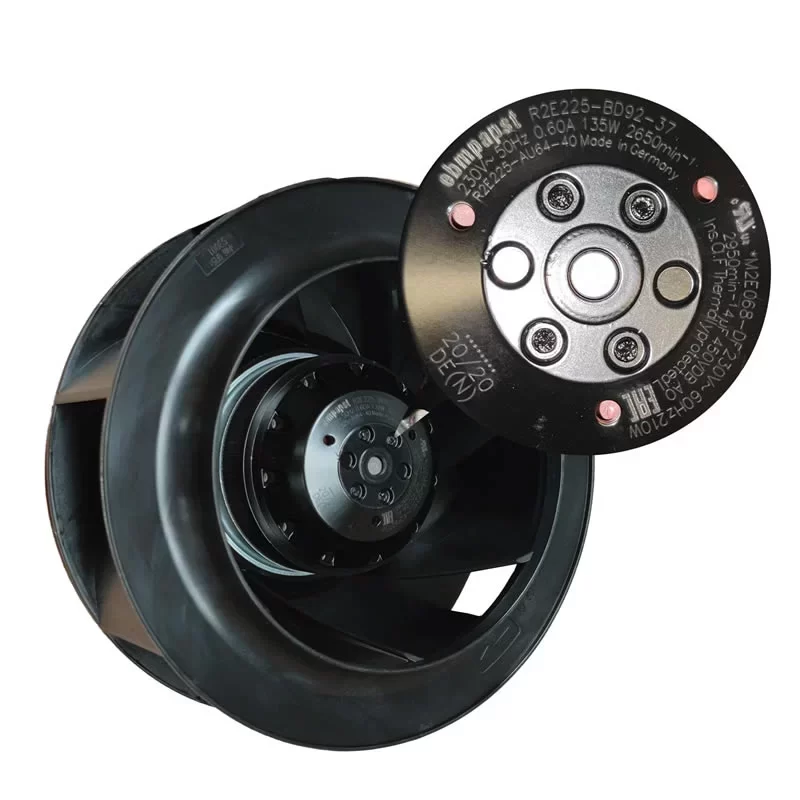

R2E225-BD92-37 ebmpapst 230V 225mm AC Centrifugal Fan

Description

The ebmpapst R2E225-BD92-37 is a robust 230 V single-phase AC centrifugal fan featuring a 225 mm backward-curved impeller precision-engineered from galvanized sheet steel. Driven by the high-torque M2E068-DF external rotor motor, this unit is designed for heavy-duty air displacement in high-resistance environments, maintaining balanced airflow at speeds up to 2700 RPM. Engineered for maintenance-free S1 continuous operation, it features a specialized motor design with a thermal overload protector and premium ball bearings to ensure longevity. This fan is an ideal thermal management solution for industrial ventilation, server rack cooling, and cleanroom technology, providing reliable performance across a wide ambient temperature range of -25 °C to 55 °C.

R2E225-BD92-37 Fan Parameters
Model Number: R2E225-BD92-37
Manufacturer: ebmpapst
Motor Model: M2E068-DF
Series: AC Centrifugal Series
Type: AC Centrifugal Fan (Backward-Curved)
Impeller Size: 225 mm
Dimensions: 225 x 225 x 99 mm
Bearing Type: Ball Bearing
Nominal Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Weight: 2.35 kg
Input Power: 135 W (50 Hz) / 200 W (60 Hz)
Nominal Current: 0.6 A (50 Hz) / 0.88 A (60 Hz)
Speed: 2650 RPM (50 Hz) / 2700 RPM (60 Hz)
Required Capacitor: 5 µF / 400 VDB
Motor Design: Single-phase External Rotor Motor (PSC)
Motor Protection: Thermal overload protector (TOP) wired internally
Insulation Class: Class F
Touch Current: < 0.75 mA
Termination: Variable cable
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inAq)
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: Radial (Single inlet)
Mode of Operation: S1 (Continuous operation)
Impeller Material: Sheet steel, galvanized
Rotor Surface: Painted black
Mounting Position: Any
Condensate Discharge Holes: None
Degree of Protection: IP44
Operating Temperature: -25 – +55 °C
Standard Compliance: EN 60335-1, CE
Approval Agency: VDE, CCC, EAC

Application
The ebmpapst R2E225-BD92-37 centrifugal fan is primarily utilized in electronic cabinet cooling, small air handling units, laboratory equipment ventilation, cleanroom filter units, and compact HVAC systems.
