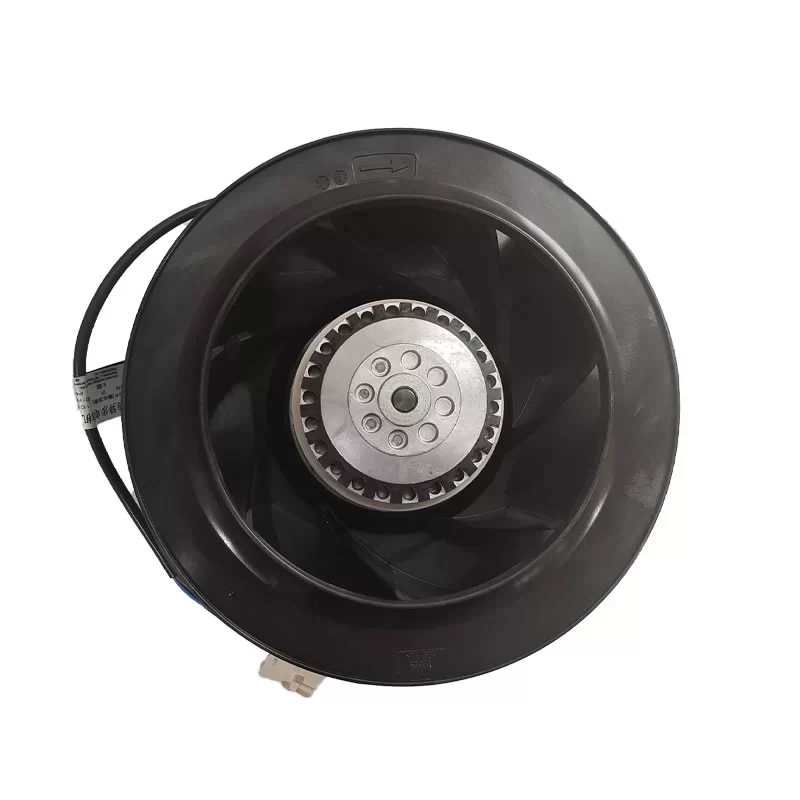

R2E225-BE51-13 ebmpapst 115V 225mm AC Centrifugal Fan

Description

The ebmpapst R2E225-BE51-13 is a high-capacity AC centrifugal motorized impeller featuring a 7-blade backward-curved design, optimized for high-efficiency air delivery in HVAC and industrial cooling systems. Powered by the M2E068-EC external rotor motor, this unit operates on a single-phase 115 VAC supply at 60 Hz, reaching a nominal speed of 3000 RPM with an input power of 215 W. Constructed from glass-fiber reinforced PA6 plastic, the 225 mm impeller is engineered for any installation position and features an IP44 degree of protection. With an integrated thermal overload protector and dual ball bearings, the R2E225-BE51-13 provides a robust, Class I protection thermal solution capable of continuous S1 mode operation in environments from -25 °C to 55 °C.

R2E225-BE51-13 Fan Parameters
Manufacturer: ebmpapst
Model Number: R2E225-BE51-13
Motor Number: M2E068-EC
Phase: 1~
Type: AC Centrifugal Fan (Backward-curved)
Nominal Voltage: 115 VAC
Frequency: 60 Hz
Fan Size: 225 mm
Number of Blades: 7
Weight: 2.7 kg

[Electrical Data]

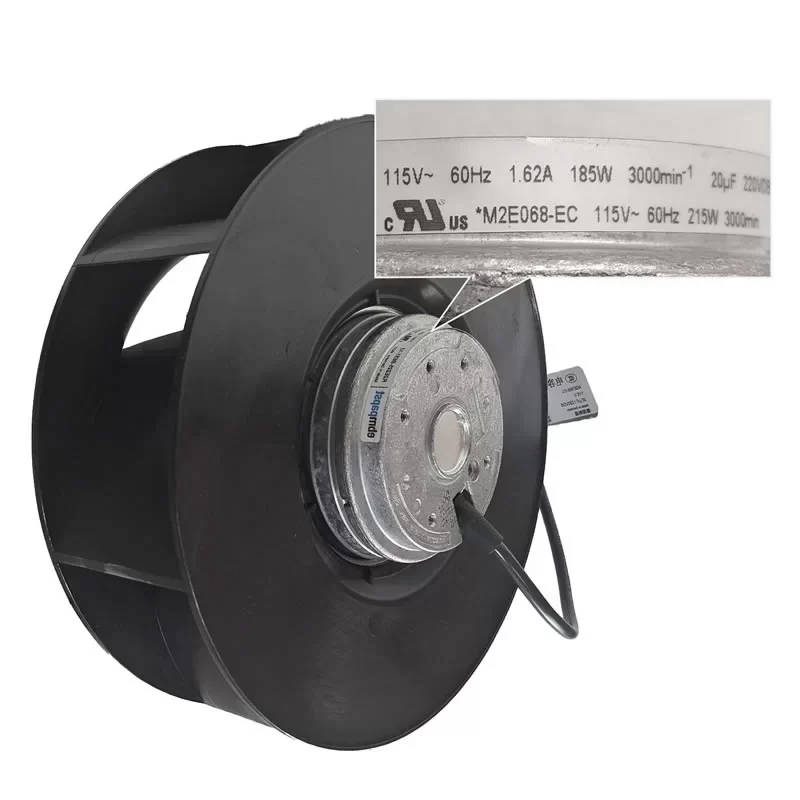

Nominal Speed: 3000 RPM
Power Consumption: 185/215 W
Current Draw: 1.62/1.8 A
Required Capacitor: 20 µF / 220 VDB
Mode: S1 (Continuous operation)
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: B
Protection Class: I (with customer protective earth)

[Performance & Acoustics]
Min. Back Pressure: 0 Pa (0 inH2O)
Direction of Rotation: Clockwise (viewed toward rotor)
Airflow Direction: Radial discharge
Touch Current: < 0.75 mA (IEC 60990)

[Materials & Construction]
Impeller Material: PA6 plastic, glass-fiber reinforced
Rotor Surface: Unpainted
Motor Bearing: Ball bearing
Installation Position: Any
Condensation Drainage Holes: None
Environmental Protection: H0 – dry environment

[Reliability & Protection]
Degree of Protection: IP44
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 55 °C
Max. Storage Temperature: 80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; UL 2111; CSA C22.2 No. 77

Application
The ebmpapst R2E225-BE51-13 motorized impeller is specifically engineered for high-efficiency air handling and cabinet ventilation where its 225 mm backward-curved PA6 impeller and 115 VAC external rotor motor are required to deliver high-velocity airflow at 3000 RPM, while its 215 W power capacity and internal thermal overload protection ensure reliable 60 Hz operation and mission-critical heat dissipation in hardware environments from -25 °C to 55 °C.
