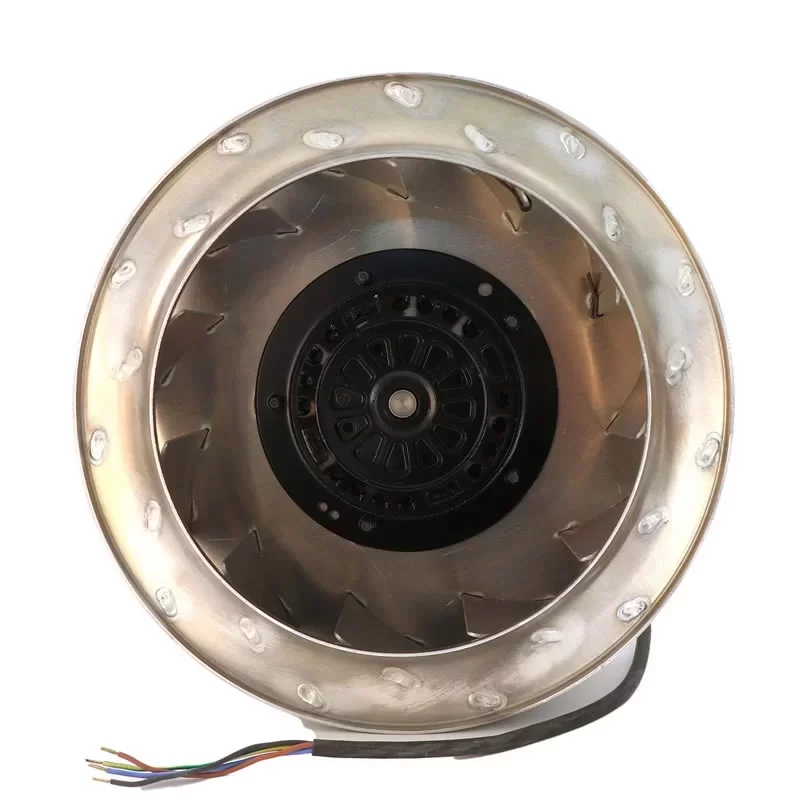

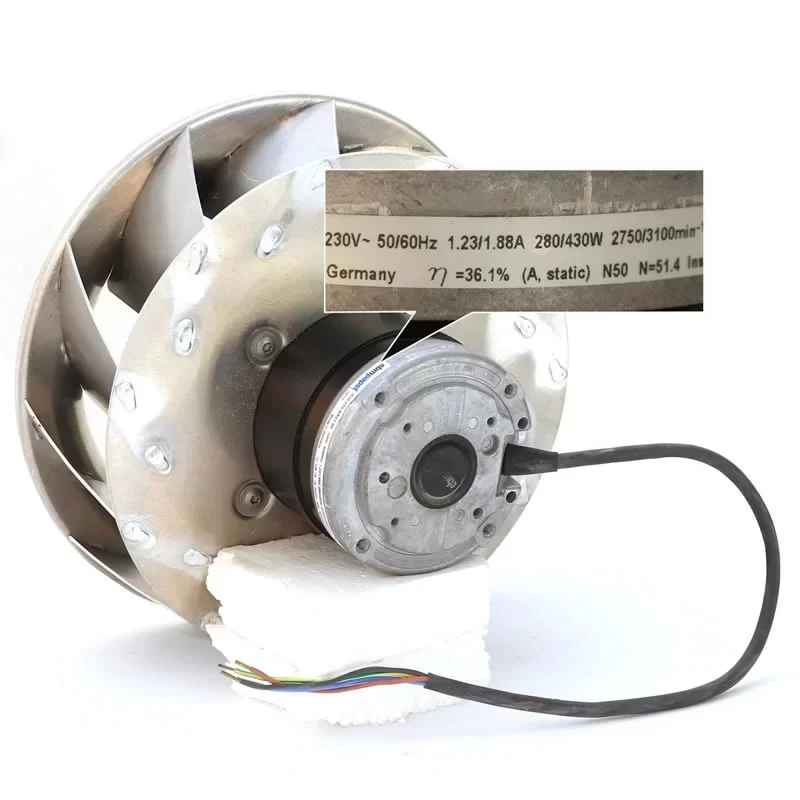

R2E270-AA01-05 ebmpapst 230V 270mm AC Centrifugal Fan

Description

The ebmpapst R2E270-AA01-05 is a high-performance 230VAC AC Centrifugal Fan featuring a backward-curved, single-inlet impeller, specifically engineered for mission-critical cooling in Industrial Frequency Converters and ventilation systems. Driven by a 1-phase M2E074-GA external rotor motor with maintenance-free ball bearings, this 4.7 kg unit operates at 230 VAC delivering a Max. Power Consumption of 280 / 430 W and a Max. Current Draw of 1.23 / 1.88 A at a rated speed of 2750 / 3100 RPM. This High-performance unit achieves a Max. Air Flow of 903.5 / 1000.6 CFM (1535.0 / 1700.0 m³/h / 25.58 / 28.33 m³/min) and a Max. Static Pressure of 50.99 / 61.18 mmH₂O (500.0 / 600.0 Pa / 2.01 / 2.41 inAq). Featuring a thermal overload protector (TOP) and Class F insulation, this 11-blade unit with sheet steel construction is optimized for industrial VFD systems requiring steady airflow and high static pressure in any installation position at the end.

R2E270-AA01-05 Fan Parameters
Model Number: R2E270-AA01-05
Motor Model: M2E074-GA
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-curved, single-inlet)
Impeller Size: 270 mm
Dimensions: 280 x 280 x 171 mm
Weight: 4.7 kg
Bearing Type: Ball bearing
Phase: 1~
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Type of Data Definition: rfa (Requirement free air)
Max. Current Draw: 1.23 / 1.88 A
Max. Power Consumption: 280 / 430 W
Rated Speed: 2750 / 3100 RPM
Max. Air Flow: 903.5 / 1000.6 CFM (1535.0 / 1700.0 m³/h / 25.58 / 28.33 m³/min)
Max. Static Pressure: 50.99 / 61.18 mmH₂O (500.0 / 600.0 Pa / 2.01 / 2.41 inAq)
Working Air Flow: 1535.0 / 1700.0 m³/h
Static Pressure Increase: 500.0 / 600.0 Pa
Motor Capacitor: 10 µF / 400 VDB
Number of Blades: 11
Leakage Current: < 0.75 mA
Motor Protection: Thermal overload protector (TOP) wired internally
Insulation Class: Class F
Degree of Protection: IP44
Impeller Material: Sheet steel
Rotor Surface: Coated in black
Direction of Rotation: Clockwise, seen on rotor
Mounting Position: Shaft horizontal or rotor on bottom
Ambient Temperature (Max.): 60 / 50 °C
Min. Operating Temperature: -25 °C
Standard Compliance: CE; CCC

Application
The ebmpapst R2E270-AA01-05 centrifugal fan is the primary cooling component for industrial frequency converters and modular ventilation systems requiring high-performance backward-curved impellers in 230V AC environments.
