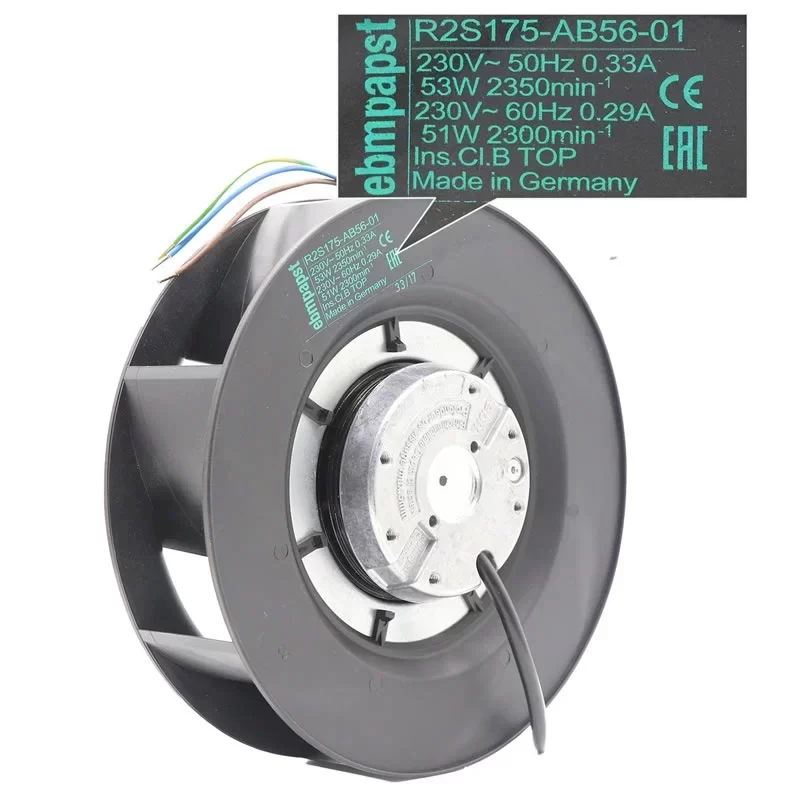

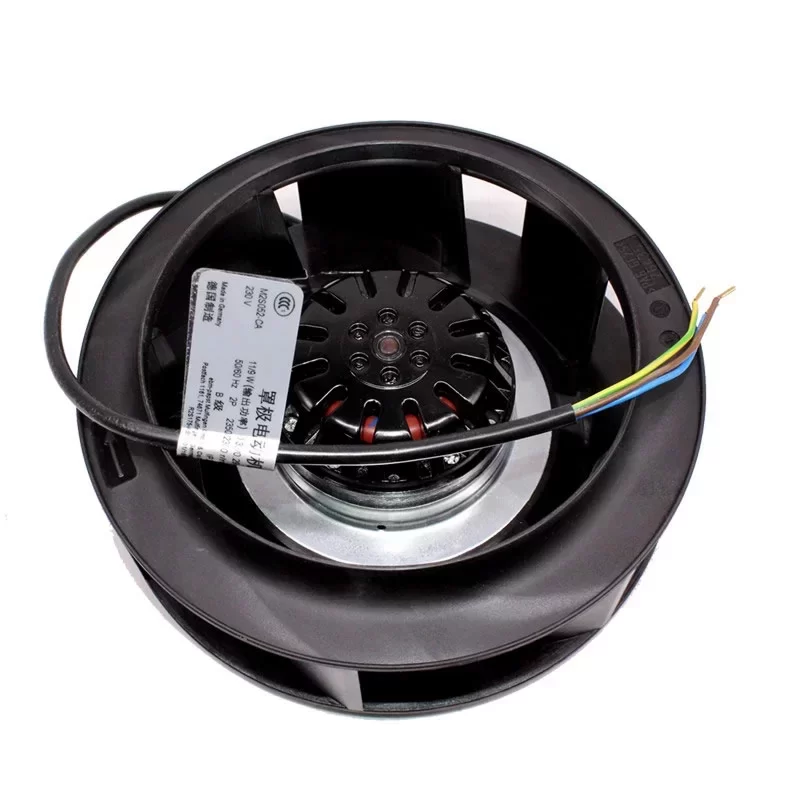

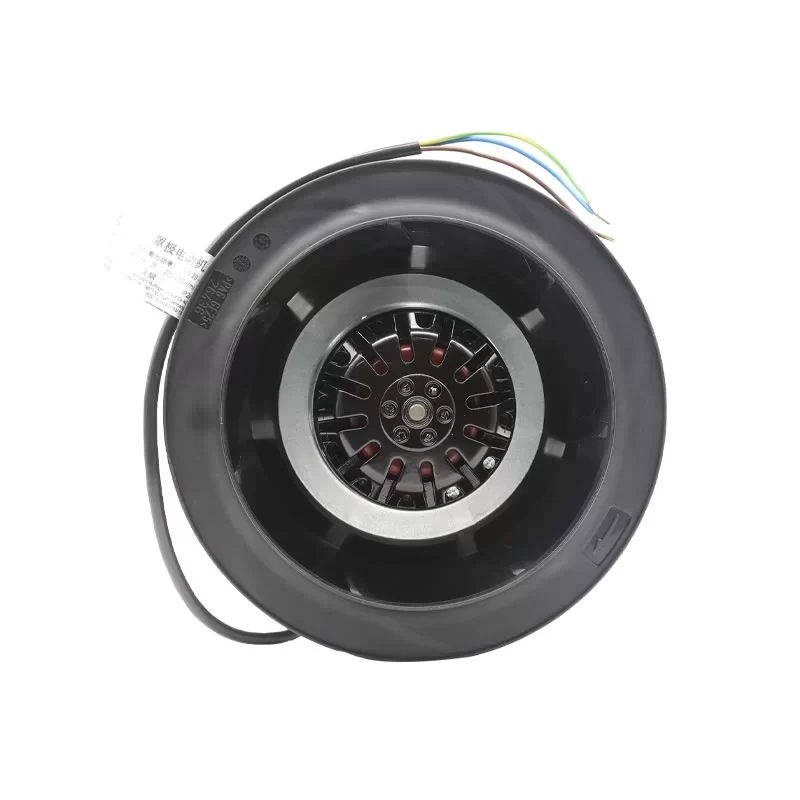

R2S175-AB56-01 ebmpapst 230V 175mm AC Centrifugal Fan

Description

The ebmpapst R2S175-AB56-01 is a high-performance 230 V AC centrifugal fan with an impeller size of 175 mm, purpose-built to deliver elite-level thermal cooling in high-resistance airflow paths. This unit features a heavy-duty M2S052-CA external rotor motor capable of sustaining a 51.0 W power input to drive its specialized 7-blade glass-fiber reinforced PA 6 plastic impeller at a consistent 2300 RPM. Engineered specifically for high-efficiency air displacement in compact electronics enclosures, it utilizes a backward-curved design to generate high static pressure without the need for a scroll housing. The mechanical design relies on a precision-shielded dual ball bearing system and a painted black rotor surface to ensure continuous S1 mode operation. Featuring an internal thermal overload protector and a robust Class I protection structure, this fan is a critical component for control cabinet ventilation, laboratory equipment, and industrial cooling where consistent air density and operational safety are mandatory.

R2S175-AB56-01 Fan Parameters
Manufacturer: ebmpapst
Model Number: R2S175-AB56-01
Motor Model: M2S052-CA
Series: AC Centrifugal Fan
Impeller Size: 175 mm
Type: AC Centrifugal Fan (Backward-curved)
Bearing Type: Ball Bearing
Nominal Voltage: 230 VAC
Voltage Range: 200.0 – 240.0 VAC
Frequency: 50 / 60 Hz
Weight: 0.9 kg

[Electrical Data]
Input Power (50/60Hz): 53.0 / 51.0 W
Nominal Current (50/60Hz): 0.33 / 0.29 A
Nominal Speed (50/60Hz): 2350 / 2300 RPM
Motor Design: 1-phase 2-pole external rotor motor
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: Class B
Moisture Protection: H0+
Termination: Axial cable

[Performance & Acoustics]
Max. Air Flow: 282.5 CFM (480.0 m³/h / 8.00 m³/min)
Max. Static Pressure: 36.71 mmH₂O (360.0 Pa / 1.45 inH₂O)
Sound Pressure Level: 61.0 dB(A) (Typical for series at max speed)
Number of Blades: 7
Direction of Rotation: Clockwise (viewed toward rotor)
Airflow Direction: Radial

[Materials & Construction]
Impeller Material: PA 6 plastic, glass-fiber reinforced
Rotor Surface: Painted black
Installation Position: Any
Condensation Drainage: None (Open rotor)
Degree of Protection: IP20
Mode of Operation: S1 (Continuous operation)

[Reliability & Safety Standards]
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature (50/60Hz): 40 °C / 55 °C
Storage Temperature: -40 °C – 80 °C
Standard Compliance: EN 60335-1, CE, UKCA
Approval Agency: CCC, EAC

Application
The ebmpapst R2S175-AB56-01 centrifugal fan is used in control cabinet cooling, industrial ventilation, cleanroom equipment, lab automation systems, and high-performance server rack heat dissipation.
