Description

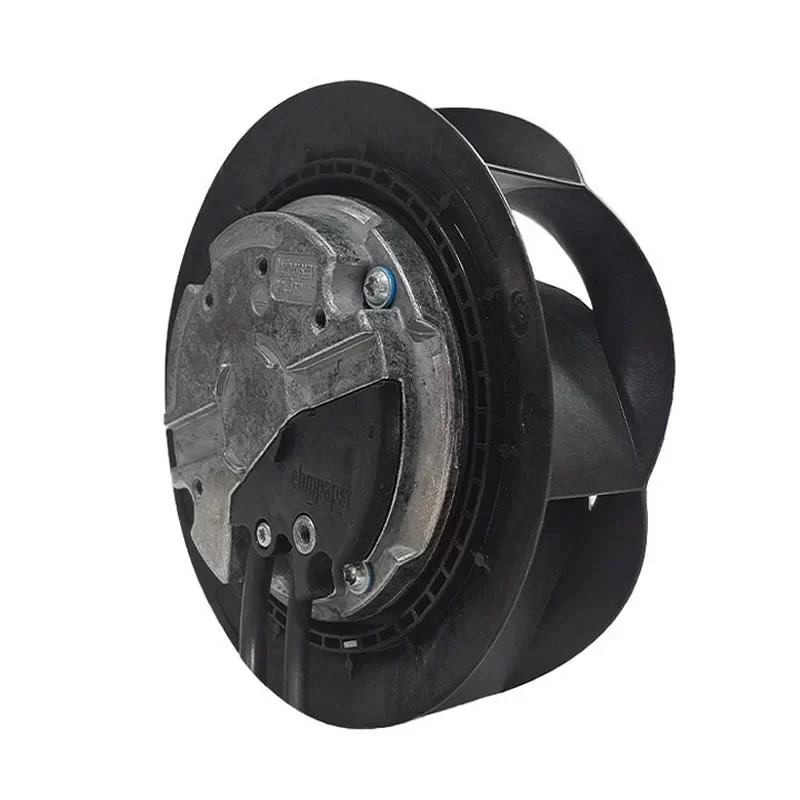

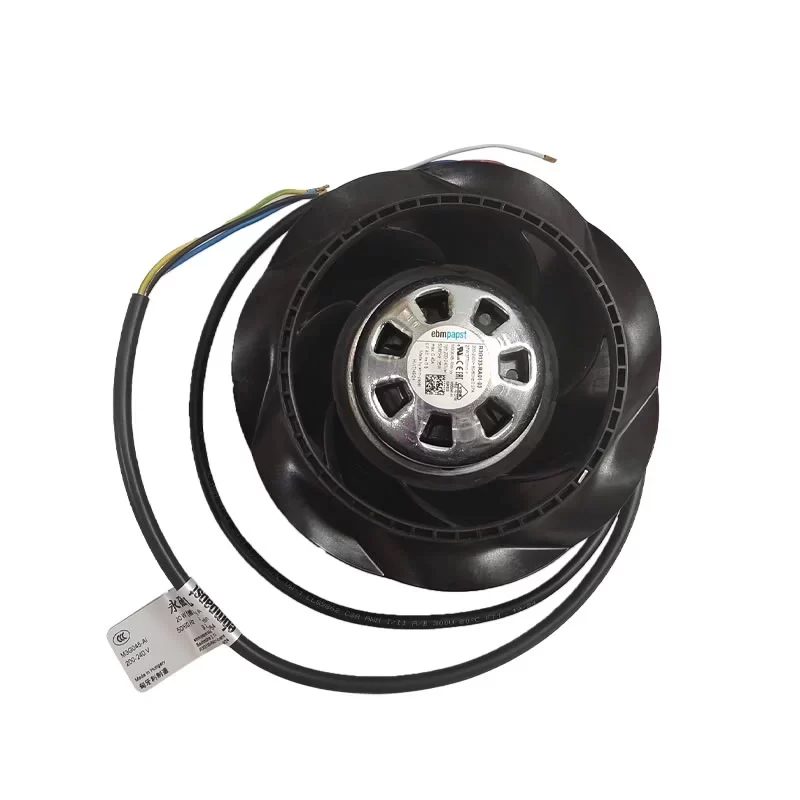

The ebmpapst R3G133-RA01-03 is a highly advanced RadiCal® EC centrifugal fan engineered for precision ventilation and intelligent airflow management. Powered by the M3G045-AI external rotor motor, this 133 mm backward-curved unit features integrated electronics that allow for direct 200-240 VAC input while providing superior energy efficiency and seamless speed control. The design incorporates a 7-blade PP plastic impeller and a thick-film passivated rotor surface, housed within a durable die-cast aluminum electronics casing. A key technical advantage is its comprehensive suite of electronic features, including a 10 VDC output, Tacho feedback, and a versatile 0-10 VDC/PWM control interface with SELV potential safely disconnected from the supply. Built for S1 continuous operation with IP54 protection, the R3G133-RA01-03 meets stringent EMC standards for both industrial interference immunity and household emission levels, making it the definitive choice for high-end medical devices and compact cleanroom filter units.
R3G133-RA01-03 Fan Parameters

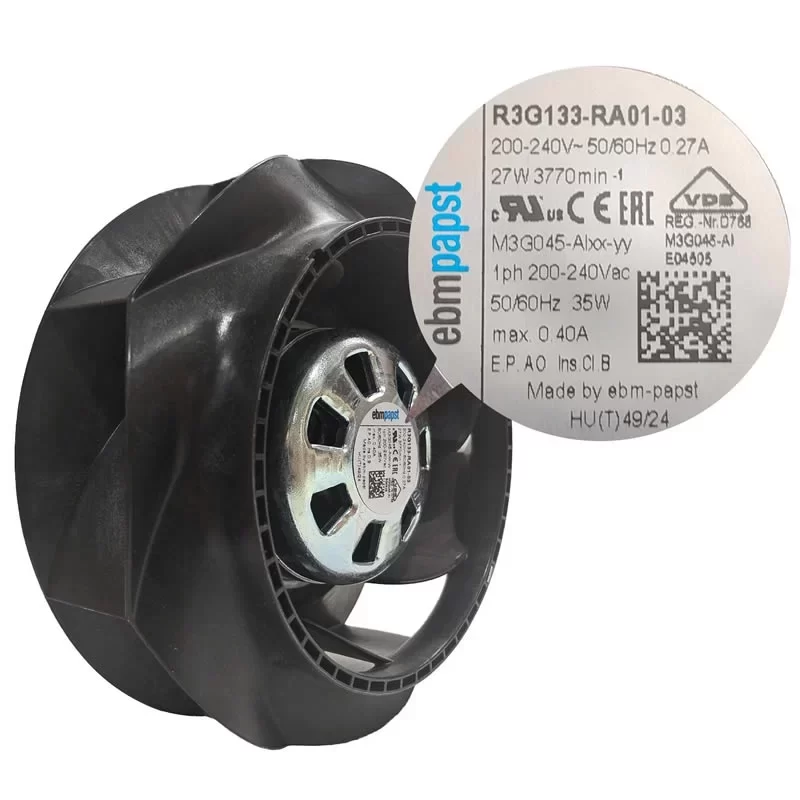

Model Number: R3G133-RA01-03
Motor Number: M3G045-AI
Manufacturer: ebmpapst
Series: RadiCal® Series
Type: EC Centrifugal Fan (Backward-curved)
Size: 133 mm
Motor Size: 45
Weight: 0.5 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Voltage Range: 200 – 240 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Power Consumption: 27 W
Nominal Current: 0.27 A
Speed: 3770 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 275 m³/h
Actual Static Pressure: 340 Pa
Motor Design: EC external rotor motor with integrated electronics
Motor Protection: Electronic motor protection; Overvoltage/Undervoltage detection
Technical Features: Control input 0-10 VDC / PWM; Tach output; Output 10 VDC (max. 1.1 mA); Soft start; Power/Current limiter; Thermal overload protection
Safety Features: SELV potential safely disconnected from supply; Touch current <= 3.5 mA
EMC Standards: EN 61000-6-2 (Immunity); EN 61000-6-3 (Emission); EN 61000-3-2/3 (Feedback)
Insulation Class: Class B
Moisture/Env. Protection: H1+
Electrical Hookup: Variable cable
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: Radial
Impeller Material: PP plastic
Rotor Surface: Thick-film passivated
Electronics Housing: Die-cast aluminum
Installation Position: Any
Condensation Drainage: None, open rotor
Degree of Protection: IP54
Protection Class: I
Operating Temperature: -25 – +60 °C
Standard Compliance: EN 60335-1, CE
Approval Agency: VDE, UL 1004-7, CSA C22.2, CCC, EAC
Application
The ebmpapst R3G133-RA01-03 EC fan is primarily utilized in medical diagnostic devices, laboratory fume hoods, compact fan filter units (FFU), and localized server cabinet cooling.
