R3G190-RB01-06 200-240V 44W inverter equipment fan

Description

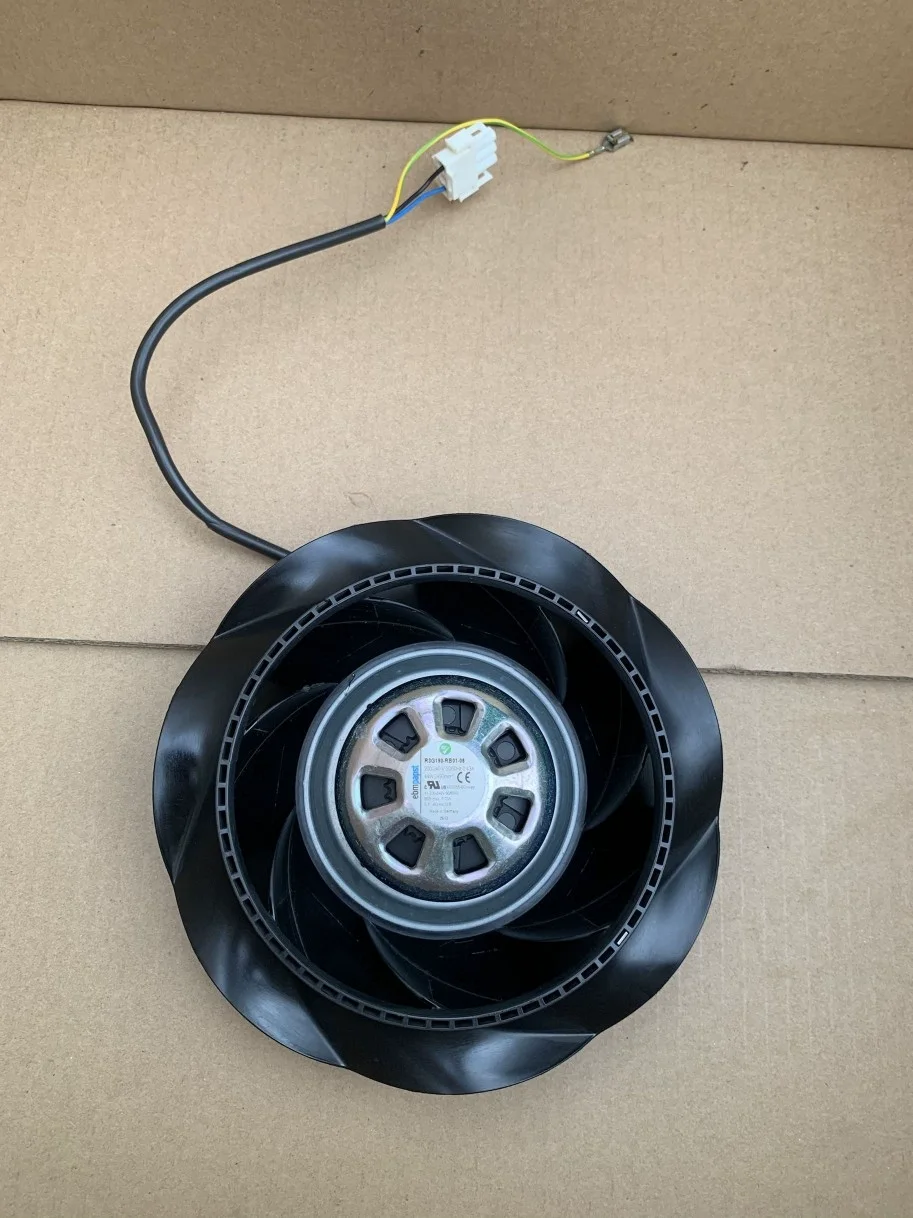

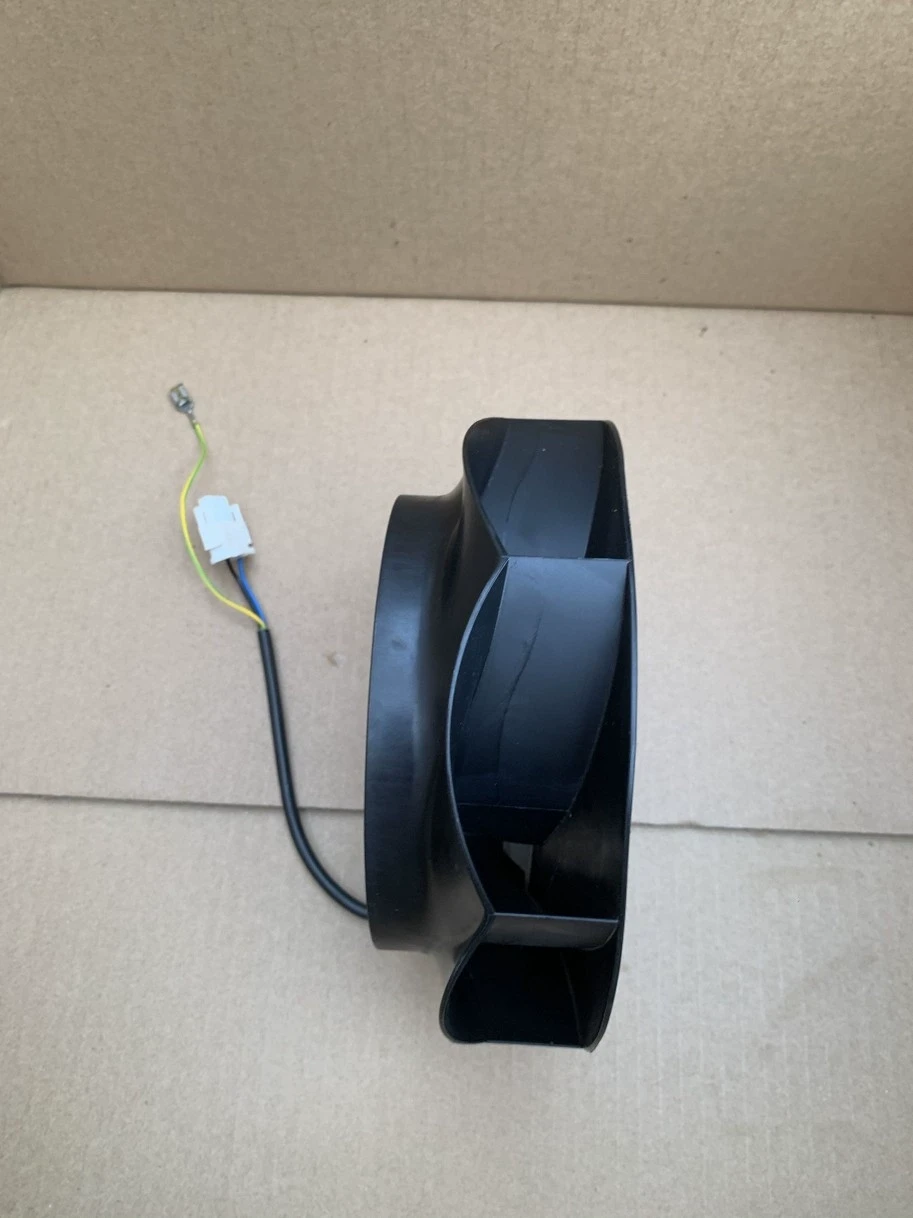

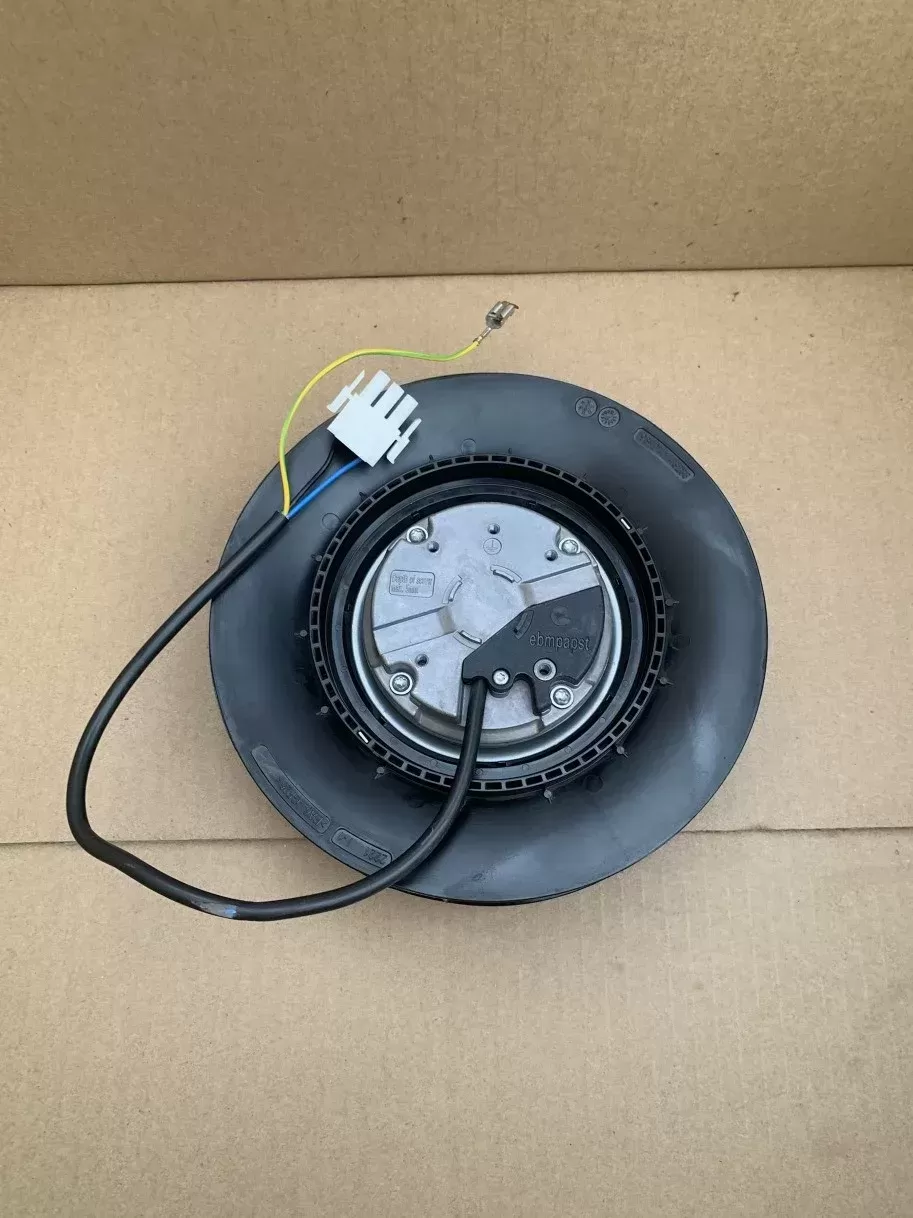

The ebmpapst R3G190-RB01-06 is a high-efficiency 230VAC EC centrifugal fan with a 190mm impeller diameter, designed for precise air movement. It operates at 2490 RPM, drawing 0.43A for 44W of power, and features durable ball bearings. Weighing 0.96 kg, it’s constructed with a PA plastic impeller and die-cast aluminum housing, offering IP54 protection and reliable performance within a -25°C to 60°C temperature range.
Fan Type: EC Centrifugal Fan (Backward-curved)
Model: R3G190-RB01-06
Impeller Diameter: Ø190 mm
Voltage: 230VAC
Frequency: 50/60 Hz
Current: 0.43A
Power Input: 44W
Speed: 2490 RPM
Bearing Type: Ball bearings
Weight: 0.96 kg (or approximately 1 kg)
Impeller Material: PA plastic
Electronics Housing: Die-cast aluminum
Protection Class (IP Rating): IP54
Operating Temperature Range: -25°C to 60°C
R3G190-RB01-06 200-240V 44W inverter equipment imported from Germany uses fan
