Description

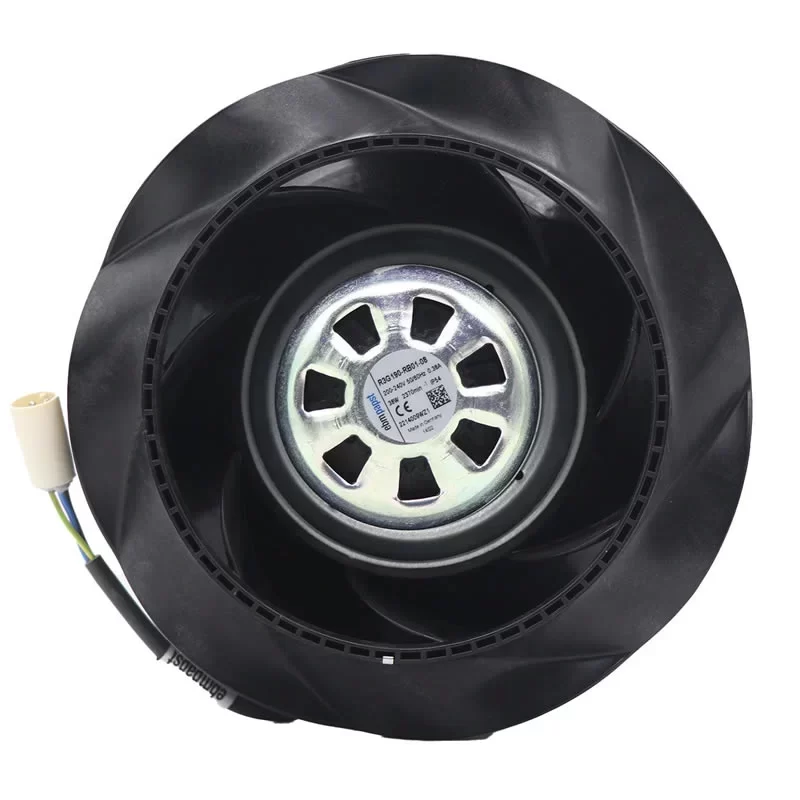

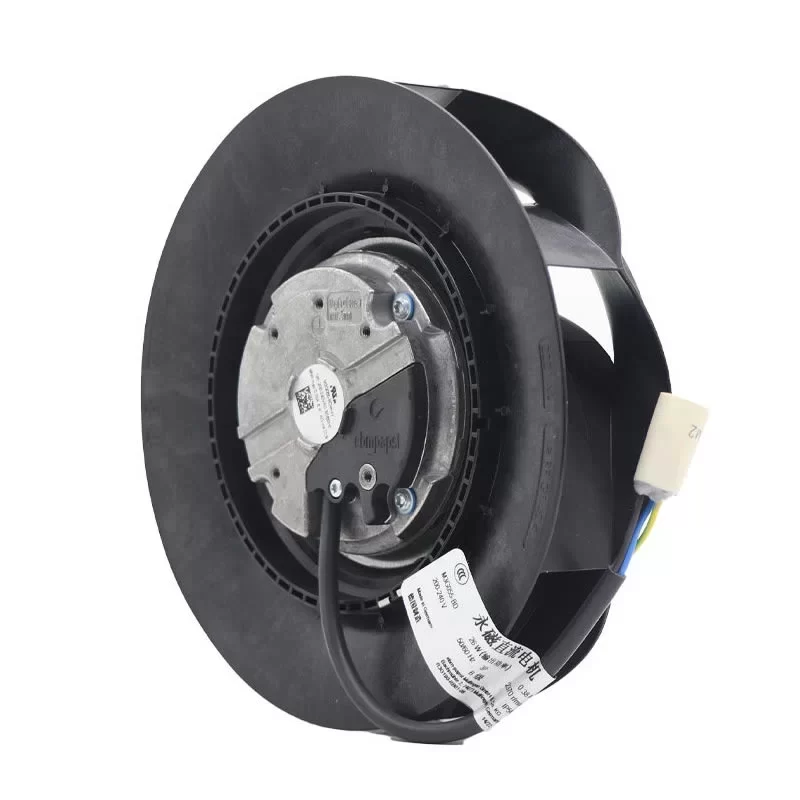

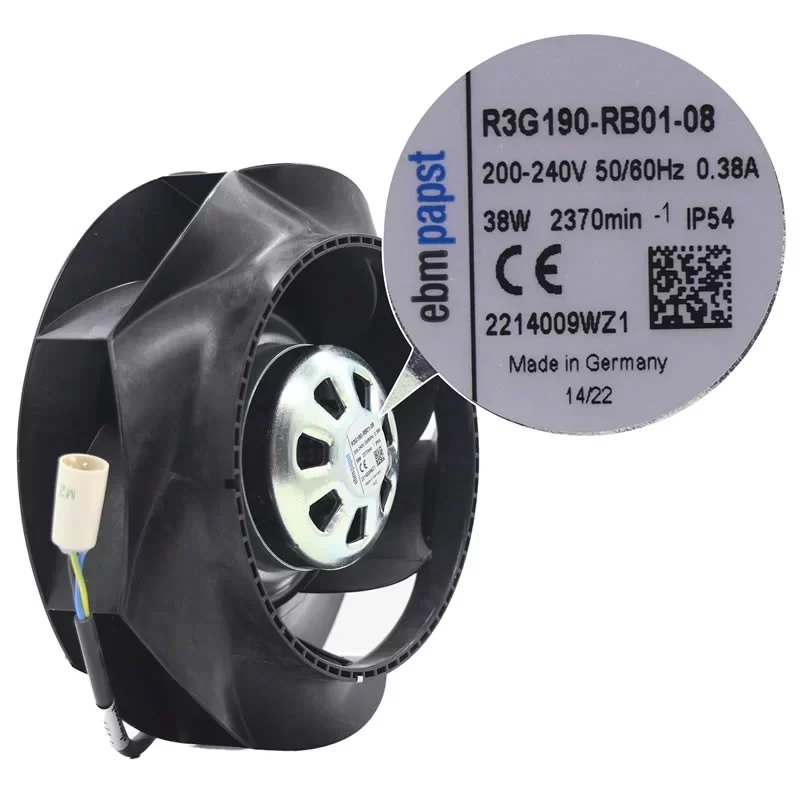

The ebmpapst R3G190-RB01-08 is a high-performance 230VAC EC Centrifugal Fan featuring a RadiCal® backward-curved, single-intake impeller specifically engineered for mission-critical cooling in Industrial Frequency Converters and precision air handling units. Driven by a high-efficiency EC external rotor M3G055-BD motor with integrated electronics and maintenance-free ball bearings, this 0.94 kg unit operates on a 230 VAC supply (range 200 – 240 VAC) delivering a Max. Power Consumption of 38 W and a Max. Current Draw of 0.38 A at a rated speed of 2370 RPM. This High-performance unit achieves a Max. Air Flow of 332.5 CFM (565.0 m³/h / 9.42 m³/min) and a Max. Static Pressure of 30.59 mmH₂O (300.0 Pa / 1.20 inAq). Featuring intelligent speed regulation via 0-10V/PWM control input with SELV potential, Soft start, and Power limiter, this 7-blade unit with PP plastic construction is optimized for industrial VFD systems requiring advanced motor protection and efficient airflow in a thick-film passivated rotor design at the end.
R3G190-RB01-08 Fan Parameters
Model Number: R3G190-RB01-08
Motor Model: M3G055-BD
Manufacturer: ebmpapst
Type: EC Centrifugal Fan (RadiCal®, backward-curved, single-intake)
Impeller Size: 190 mm
Weight: 0.94 kg
Bearing Type: Ball bearing
Phase: 1~
Nominal Voltage: 230 VAC
Nominal Voltage Range: 200 – 240 VAC
Frequency: 50 / 60 Hz
Method of Obtaining Data: ml (Max. load)
Max. Current Draw: 0.38 A
Max. Power Consumption: 38 W
Rated Speed: 2370 RPM
Max. Air Flow: 332.5 CFM (565.0 m³/h / 9.42 m³/min)
Max. Static Pressure: 30.59 mmH₂O (300.0 Pa / 1.20 inAq)
Working Air Flow: 565.0 m³/h
Static Pressure Increase: 300.0 Pa
Efficiency Grade N: 59.4
Overall Efficiency ηes: 42.1%
Control Interface: Control input 0-10 VDC / PWM (Input resistance > 100 kΩ; SELV potential)
Output Signal: Tach output (Speed signal)
Number of Blades: 7
Technical Features: Soft start; Power limiter; Motor current limitation; Line undervoltage detection; Over-temperature protected electronics / motor
Motor Protection: Electronic motor protection; Locked-rotor protection
Touch Current (IEC 60990): ≤ 3.5 mA
Insulation Class: “B”
Degree of Protection: IP54
Protection Class: I (if protective earth is connected)
Humidity Class: H1
Impeller Material: PP plastic
Electronics Housing Material: Die-cast aluminum
Rotor Surface: Thick-film passivated
Direction of Rotation: Clockwise (viewed toward rotor)
Installation Position: Any
Condensate Discharge Holes: None, open rotor
Mode: S1
Strength Class of Screws: 8.8
Ambient Temperature (Max.): 60 °C (Transport/Storage: +80 °C)
Min. Operating Temperature: -25 °C (Transport/Storage: -40 °C)
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC; CSA C22.2 No. 77; UL 1004-7
Application
The ebmpapst R3G190-RB01-08 centrifugal fan is the primary cooling component for industrial frequency converters and modular HVAC systems requiring intelligent EC speed regulation and RadiCal® aerodynamic efficiency.
