Description

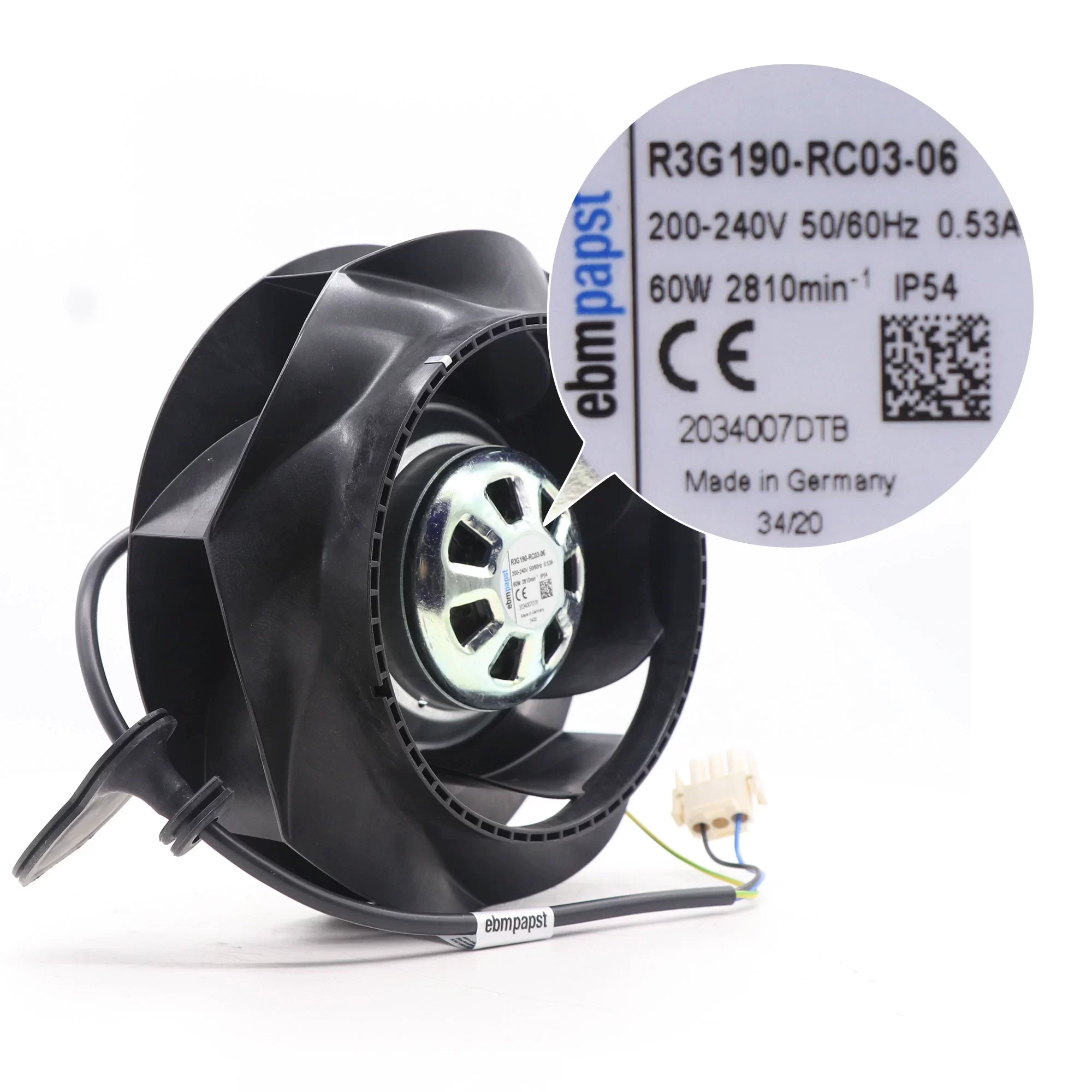

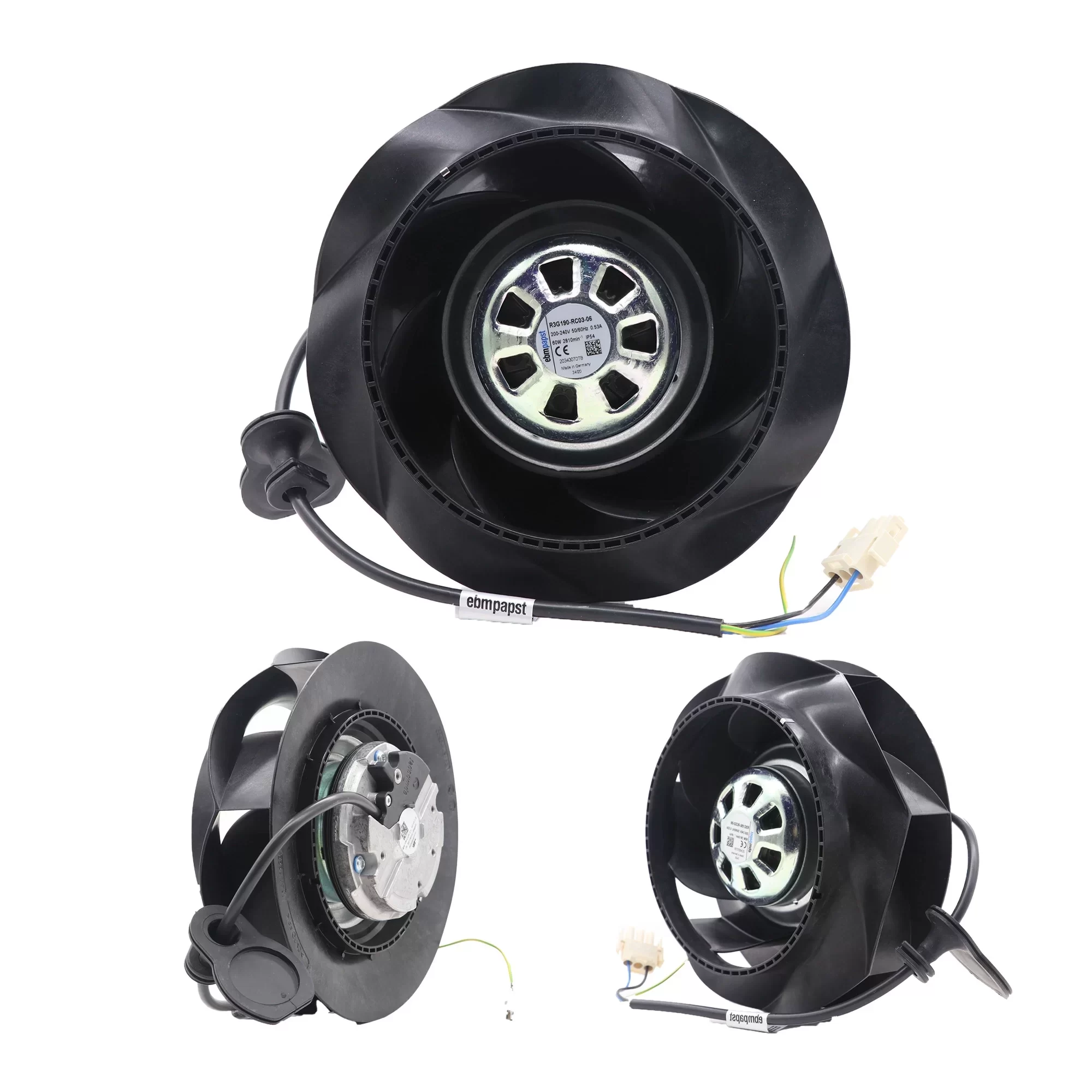

The ebmpapst R3G190-RC03-06 is a highly efficient EC centrifugal fan, featuring the M3G055-BI motor and measuring 190mm in diameter with a typical depth of 51mm. Operating at 230VAC across both 50Hz and 60Hz frequencies, it consumes 60W of power and draws 0.53A of current. This fan typically operates at a speed of 2810RPM. Equipped with 7 PA plastic blades, durable ball bearings, and a die-cast aluminum electronics housing, it boasts an IP54 ingress protection rating, ensuring reliable performance in demanding environments. It is suitable for operation within an ambient temperature range of -25 to 60°C and is certified by CCC and EAC.
R3G190-RC03-06 Fan Parameters
Manufacturer: ebmpapst
Model: R3G190-RC03-06
Motor: M3G055-BI
Fan Type: EC Centrifugal Fan
Dimensions: 190 mm diameter x 51 mm
Rated Voltage: 230 VAC
Operating Voltage Range: 200 ~ 240 VAC
Frequency: 50 Hz / 60 Hz
Current Rating: 0.53 A
Power Consumption: 60 W
Speed: 2810 RPM
Bearing Type: Ball Bearing
Number of Blades: 7
Termination: Wire Leads (variable)
Operating Temperature: -25 ~ 60°C
Blade Material: PA plastic
IP Rating: IP54
Weight: 1.1 kg
Approval Agency: CCC, EAC
Application: This ebmpapst EC centrifugal fan is well-suited for a variety of applications requiring energy-efficient and precise air movement, such as HVAC systems, Rittal air conditioners, data centers, and industrial air handling.
