Description

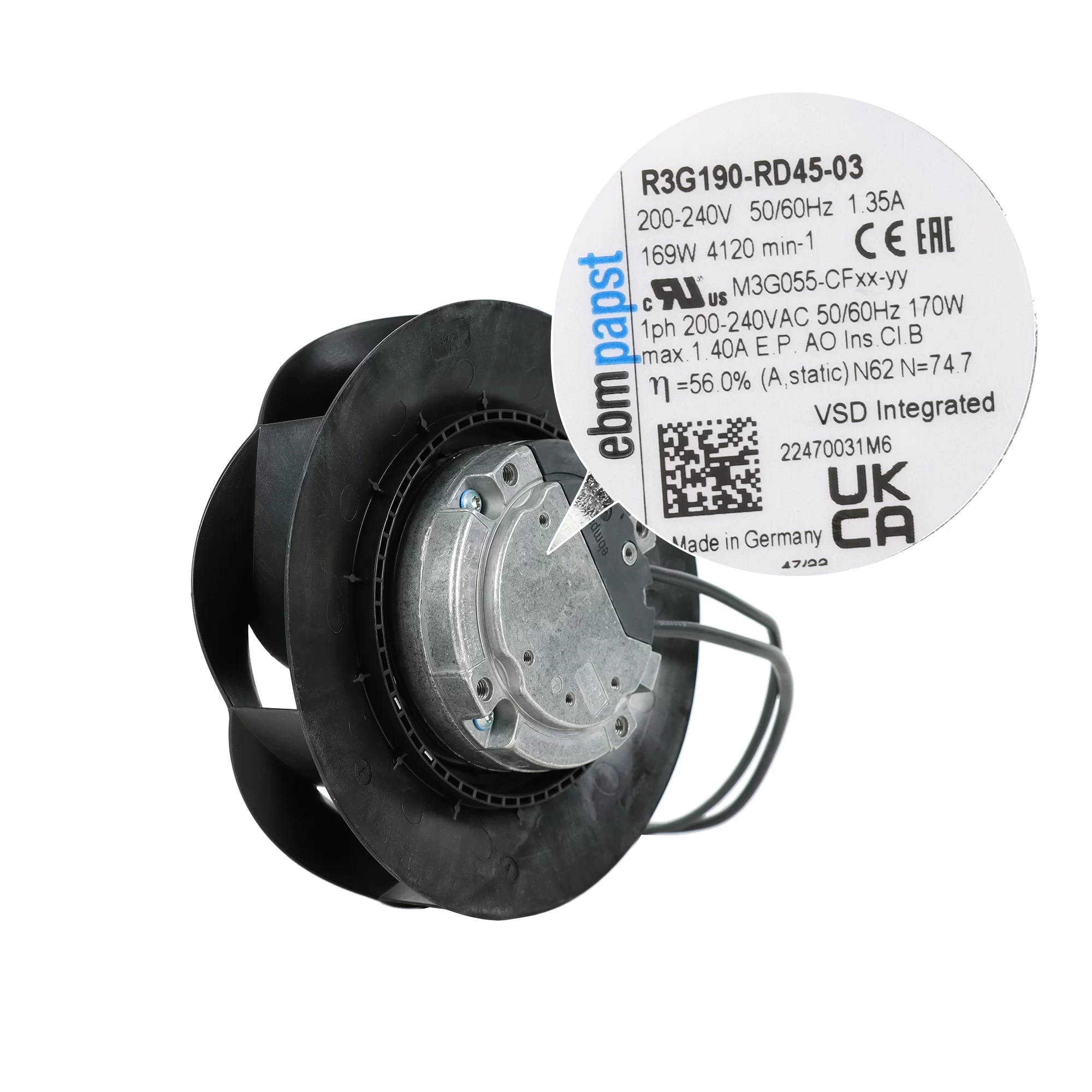

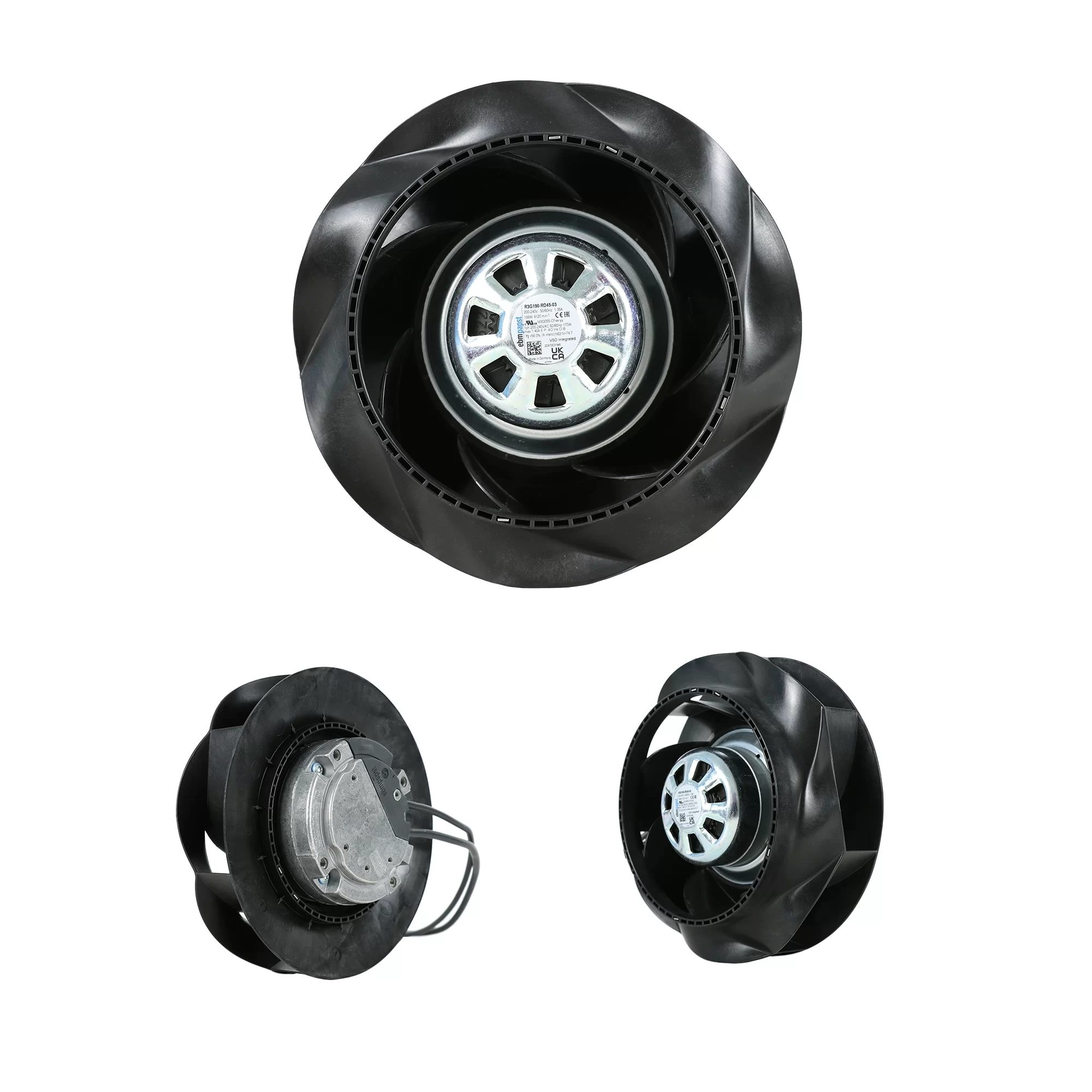

The ebmpapst R3G190-RD45-03 is an EC Centrifugal Fan with a 190mm impeller diameter. It operates on 230 VAC at 50/60 Hz, with a voltage range of 200 to 240 VAC. This fan delivers a robust performance with an input power of 169 W, a current draw of 1.35 A, and a speed of 4120 RPM. It provides an airflow of 573.9 CFM (equivalent to 640 m³/h) at a noise level of 72 dB(A). Featuring a durable ball bearing system and an IP54 ingress protection rating, it is constructed with a PP plastic impeller and a thick layer passivated rotor surface, designed for efficient and quiet operation. This fan is ideal for various ventilation and air conditioning applications, including control cabinet cooling, in-line duct fans, home ventilation units, and heat pumps.
R3G190-RD45-03 Fan Parameters
Model: R3G190-RD45-03
Manufacturer: ebmpapst
Type: EC Centrifugal Fan
Impeller Diameter: 190 mm
Overall Dimensions: 190 mm L x 190 mm H x 90.7 mm W
Motor: M3G055-CF
Phase: 1~
Rated Voltage: 230 VAC
Voltage Range: 200 to 240 VAC
Frequency: 50/60 Hz
Speed: 4120 RPM
Power Input: 169 W
Current Draw: 1.35 A
Airflow: 573.9 CFM (640 m³/h)
Static Pressure: 455 Pa
Noise Level: 72 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Protection Level: IP54
Insulation Class: B
Operating Temperature: -25 to 60°C
Storage Temperature: -40 to 80°C
Weight: 1.38 kg
Impeller Material: PP plastic
Rotor Surface: Thick layer passivated
Electronics Housing Material: Die-cast aluminum
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Motor Protection: Electronic motor protection
Application: Control cabinet cooling, in-line duct fans, home ventilation units, heat pumps, air handling units, respirators, air filter units, FanGrid in data centers.
