Description

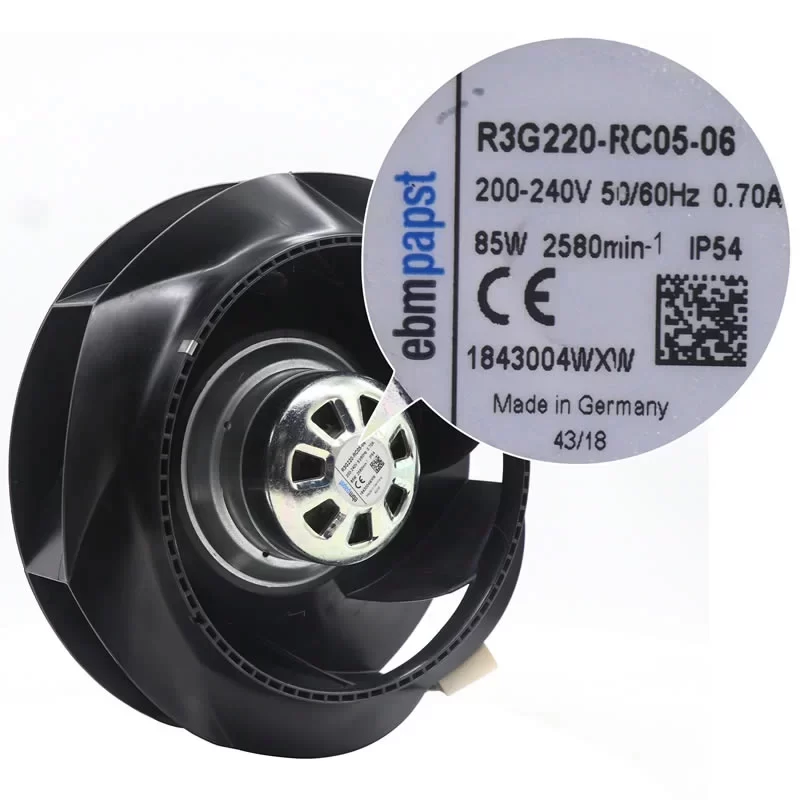

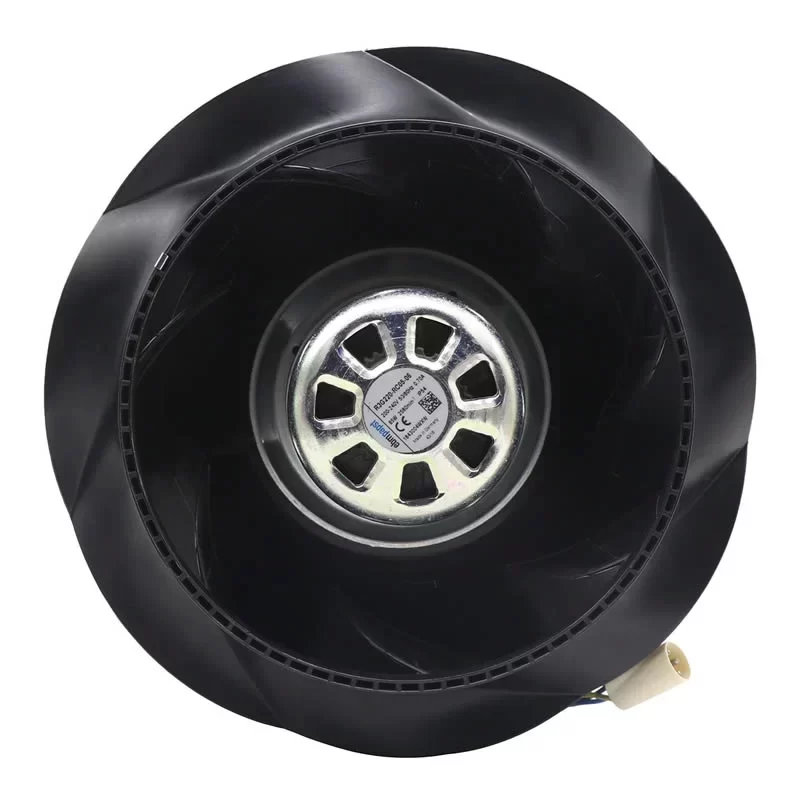

The ebmpapst R3G220-RC05-06 is a high-performance 230VAC EC Centrifugal Fan featuring a RadiCal backward-curved, single-intake impeller, specifically engineered for mission-critical cooling in Industrial Frequency Converters and precision air handling units. Driven by a high-efficiency EC external rotor M3G055-BI motor with integrated electronics and maintenance-free ball bearings, this 0.97 kg unit operates on a 230 VAC supply (range 200 – 240 VAC) delivering a Max. Power Consumption of 85 W and a Max. Current Draw of 0.7 A at a rated speed of 2580 RPM. This High-performance unit is optimized for industrial VFD systems requiring intelligent airflow control, featuring a 7-blade PA plastic impeller, S1 operation mode, and comprehensive protection including motor current limitation and thermal overload protection for electronics and motor at the end.
R3G220-RC05-06 Fan Parameters
Model Number: R3G220-RC05-06
Motor Model: M3G055-BI
Manufacturer: ebmpapst
Type: EC Centrifugal Fan (RadiCal, backward-curved, single-intake)
Fan Size: 220 mm
Weight: 0.97 kg
Bearing Type: Ball bearing
Phase: 1~
Nominal Voltage: 230 VAC
Nominal Voltage Range: 200 – 240 VAC
Frequency: 50 / 60 Hz
Method of Obtaining Data: ml (Max. load)
Max. Current Draw: 0.7 A
Max. Power Consumption: 85 W
Rated Speed: 2580 RPM
Number of Blades: 7
Technical Features: Motor current limitation; Soft start; Thermal overload protection for electronics/motor
Touch Current (IEC 60990): <= 3.5 mA
Electrical Hookup: With plug
Motor Protection: Electronic motor protection
Insulation Class: "B"
Degree of Protection: IP54
Protection Class: I (with customer connection of protective earth)
Humidity Class: H1
Impeller Material: PA plastic
Rotor Surface: Unpainted
Direction of Rotation: Clockwise, viewed toward rotor
Installation Position: Any
Condensation Drainage Holes: None, open rotor
Mode: S1
Strength Class of Screws: 8.8
Ambient Temperature (Max.): 60 °C (Transport/Storage: +80 °C)
Min. Operating Temperature: -25 °C (Transport/Storage: -40 °C)
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC; CSA C22.2 No. 77 + CAN/CSA-E60730-1; UL 1004-7 + 60730
Application
The ebmpapst R3G220-RC05-06 centrifugal fan is the primary cooling component for industrial frequency converters and modular ventilation systems requiring compact EC technology and RadiCal aerodynamic efficiency.
