Description

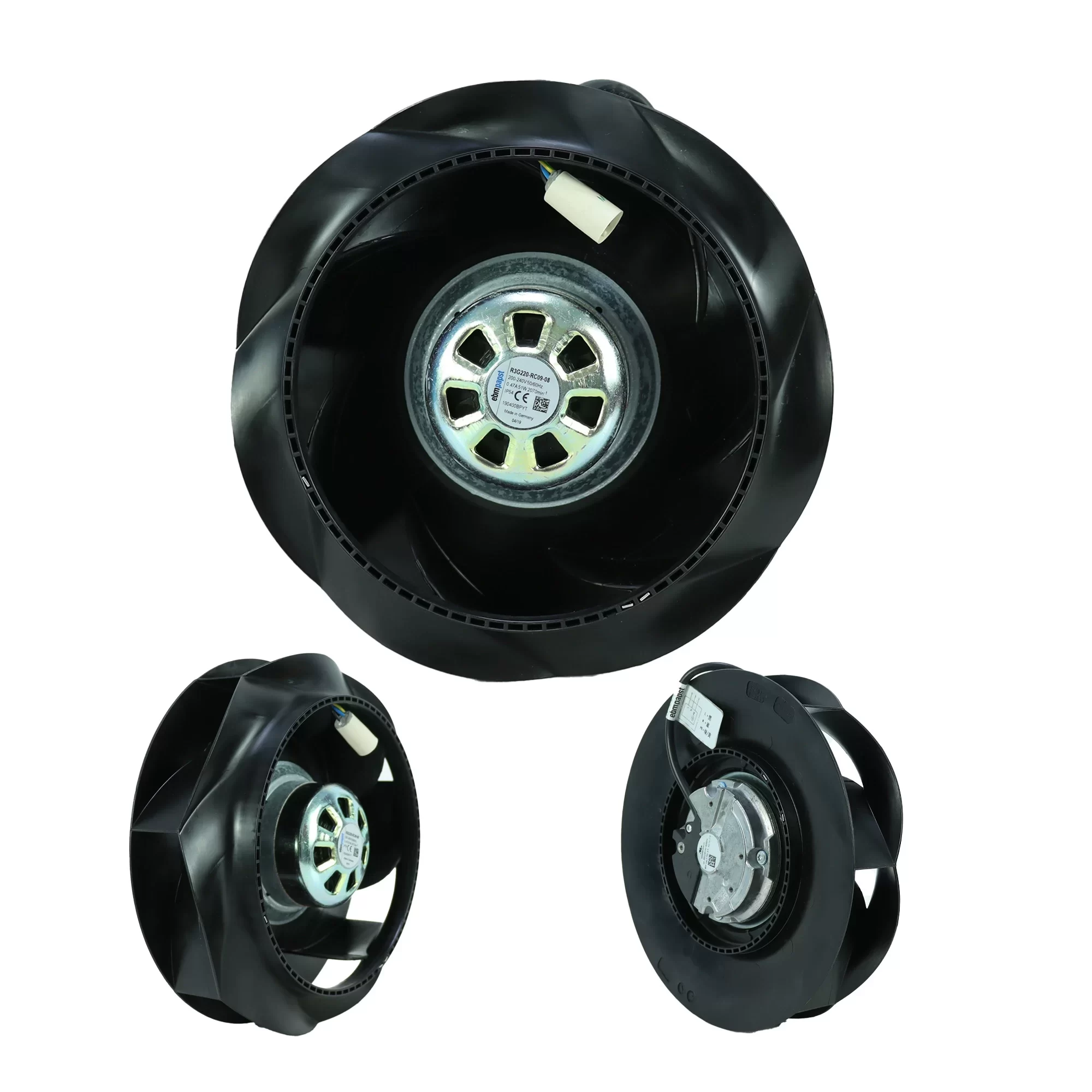

The ebmpapst R3G220-RC05-08 is a high-efficiency EC centrifugal fan, featuring the M3G055-BI motor and measuring 220mm in diameter with a typical depth of 71mm. Designed for various air movement applications, it operates at 230VAC across both 50Hz and 60Hz frequencies. It consumes 85W of power and draws 0.7A of current. This fan delivers a robust airflow up to 1015m³/h (597CFM) and can achieve static pressures up to 335Pa, with a typical operating speed of 2580RPM and a noise level of 72dB(A). Equipped with 7 PA plastic blades, durable ball bearings, and a die-cast aluminum electronics housing, it boasts an IP54 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -25 to 60°C and is certified by CCC, CE, CSA, UL, and EAC.
R3G220-RC05-08 Fan Parameters
Manufacturer: ebmpapst
Model: R3G220-RC05-08
Motor: M3G055-BI
Fan Type: EC Centrifugal Fan
Dimensions: 220 mm diameter x 71 mm
Rated Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Current Rating: 0.7 A
Power Consumption: 85 W
Airflow: 1015 m³/h (597 CFM)
Static Pressure: Up to 335 Pa
Speed: 2580 RPM
Noise Level: 72 dB(A)
Bearing Type: Ball Bearing
Number of Blades: 7
Termination: Wire Leads
Operating Temperature: -25 ~ 60°C
Blade Material: PA plastic
IP Rating: IP54
Weight: 1.13 kg
Approval Agency: CCC, CE, CSA, UL, EAC
Application: This ebmpapst EC centrifugal fan is highly suitable for demanding ventilation and air conditioning applications, including control cabinet cooling, in-line duct fans, home ventilation units, and heat pumps, where high efficiency, quiet operation, and precise control are desired.
