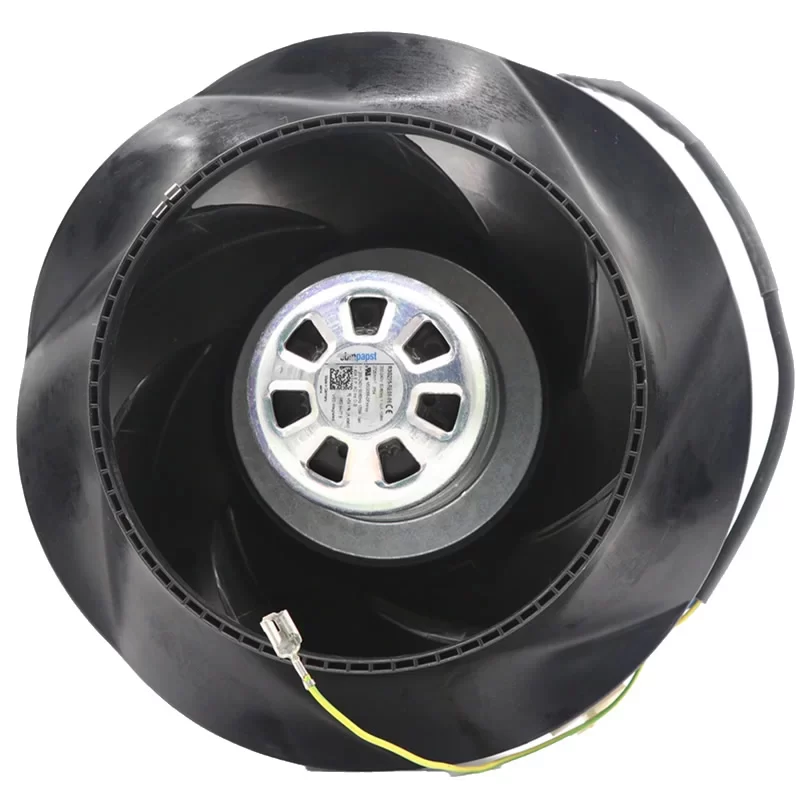

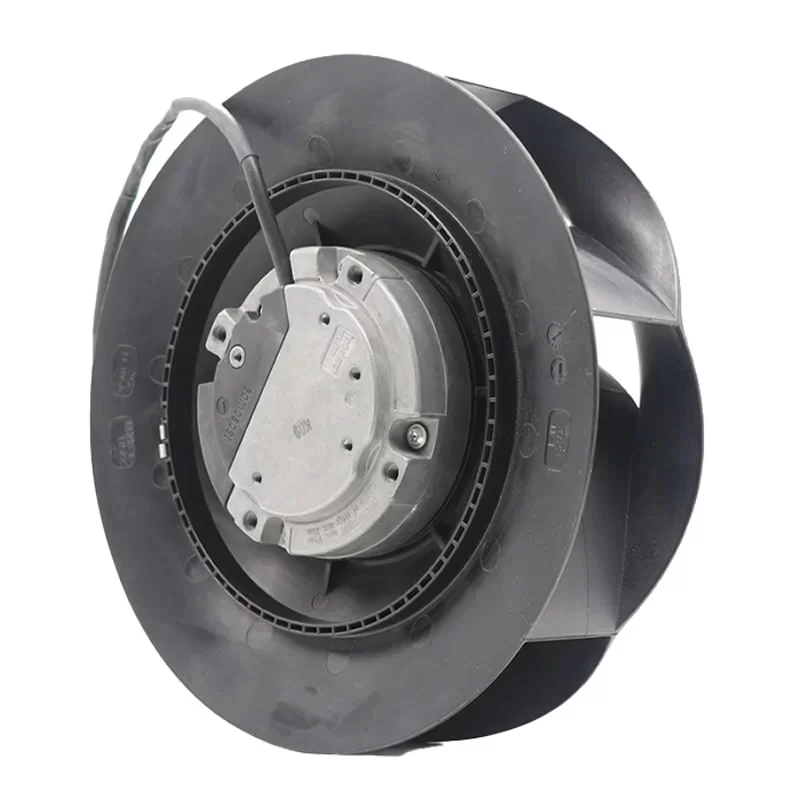

R3G225-RE09-08 ebmpapst 230V EC Centrifugal Fan 225 mm

Description

The ebmpapst R3G225-RE09-08 is an EC Centrifugal Fan with measuring 225 mm in diameter, powered by the M3G055-DF motor. This fan operates on a nominal voltage of 230 VAC (range 200..240 VAC) at 50 Hz/60 Hz frequencies. The fan achieves a high speed of 2725 RPM with a power input of 138 W and a current draw of 1.1 A. Designed for continuous operation (S1), it features a Plastic PA 6 impeller, ball bearings, and operates in a wide temperature range of −25 ∘C to 60 ∘C. This EC fan is ideal for energy-efficient air movement in electronic cabinet cooling, heat exchangers, and compact ventilation systems where precise speed control is required.

R3G225-RE09-08 Fan Parameters
Model: R3G225-RE09-08
Manufacturer: ebmpapst
Fan Type: EC Centrifugal Fan (Motorized Impeller)
Dimensions: 225 mm
Motor: M3G055-DF
Phase: 1
Nominal Voltage: 230 VAC
Nominal Voltage Range: 200 VAC..240 VAC
Frequency: 50 Hz/60 Hz
Method of obtaining data: maximum load
Rated Speed: 2725 RPM
Power Consumption: 138 W
Current Draw: 1.1 A
Min. Ambient Temperature: −25 ∘C
Max. Ambient Temperature: 60 ∘C
Impeller Material: Plastic PA 6, fiberglass-reinforced
Direction of Rotation: Counter-clockwise, seen on rotor
Degree of Protection: IP44
Insulation Class: “F”
Max. Permitted Ambient Temp. for motor (transport/storage): +80 ∘C
Min. Permitted Ambient Temp. for motor (transport/storage): −40 ∘ C
Installation Position: Any
Condensation Drainage Holes: None, open rotor
Mode: S1 (Continuous operation)
Motor Bearing: Ball bearing
Motor Protection: TOP wired internally
Leakage Current: ≤3.5 mA
Electrical Hookup: Via plug
Protection Class Assignment: I
Conformity with Standards: EN 60335-1

Application
The R3G225-RE09-08 EC Centrifugal Fan is a versatile and energy-efficient solution, particularly suited for applications in a scroll housing. Its high efficiency and variable speed capability make it a popular choice for Residential and Commercial Air Conditioning (AC) units, heat recovery ventilation (HRV) systems, duct ventilation, electronic cabinet cooling, and general industrial air movement that demands a compact design and low noise.
