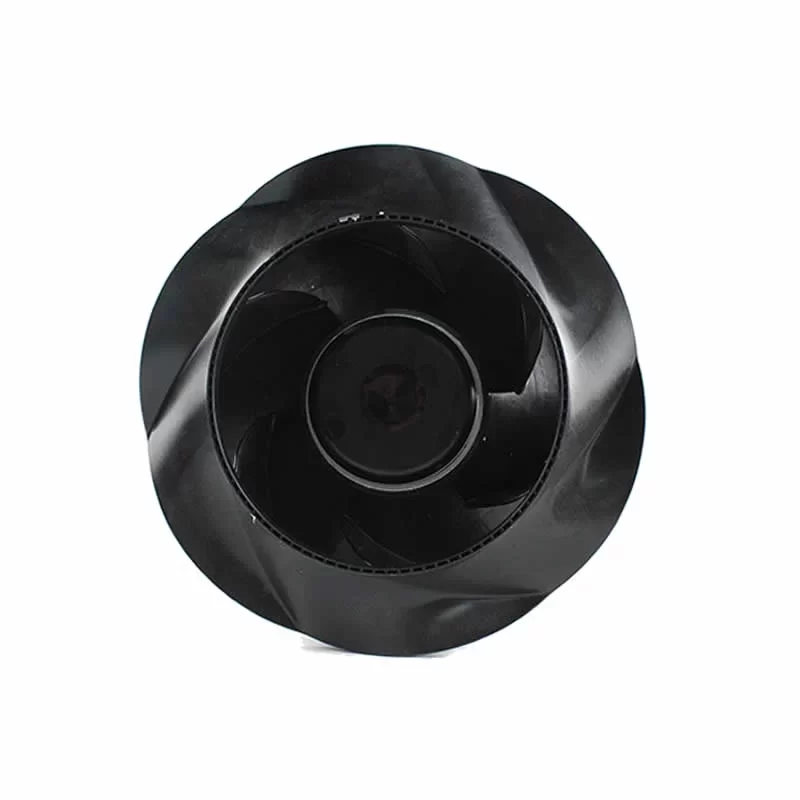

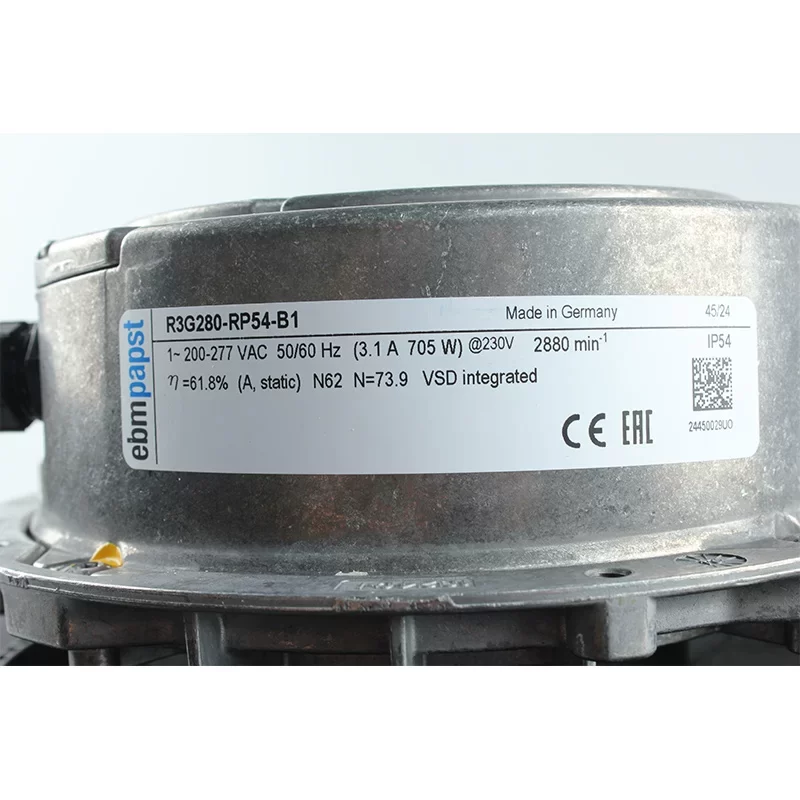

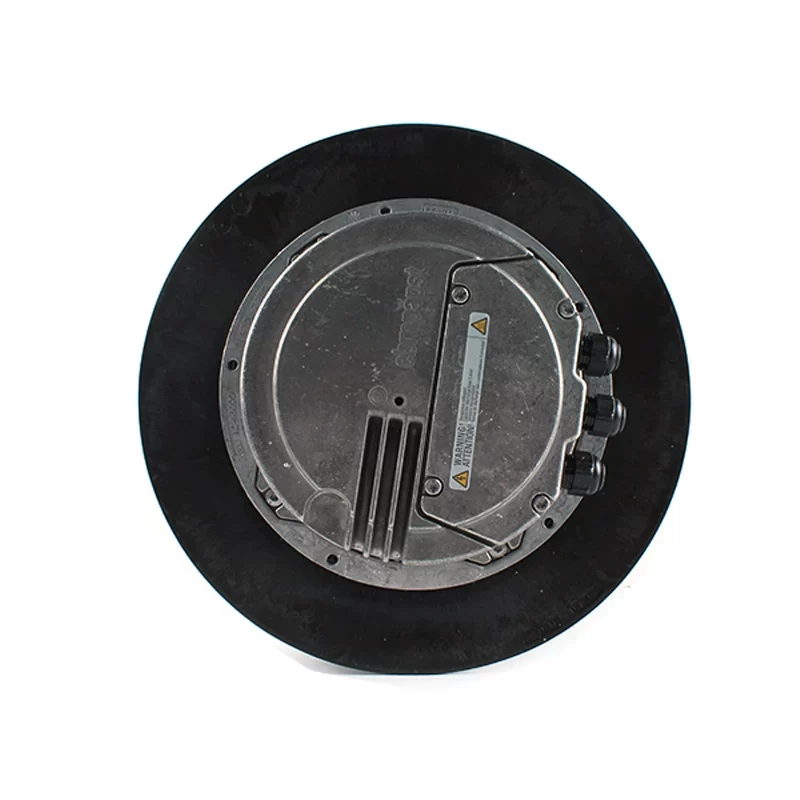

R3G280-RP54-B1 ebmpapst 230V 280mm EC Centrifugal Fan

Description

The ebmpapst R3G280-RP54-B1 is a high-performance EC Centrifugal Fan powered by the M3G084-FA motor, featuring a 280 mm backward-curved impeller designed for superior aerodynamic efficiency and pressure development. Operating on a 1-phase 230 VAC supply with an extended voltage range of 200 – 277 VAC, this unit consumes 705 W and draws 3.1 A to achieve a nominal speed of 2880 RPM. The fan is constructed with a 6-blade PP plastic impeller and a die-cast aluminum electronics housing, achieving an overall static efficiency of 61.8% in compliance with ErP 2015 standards. Weighing 5.3 kg and rated at IP54, the R3G280-RP54-B1 integrates advanced digital features including active PFC, RS-485 MODBUS-RTU, and a programmable control interface for 0-10V or 4-20mA sensors, making it an ideal intelligent thermal solution for high-static pressure applications in cleanrooms, server cooling, and industrial ventilation.

R3G280-RP54-B1 Fan Parameters
Manufacturer: ebmpapst
Model Number: R3G280-RP54-B1
Motor Model: M3G084-FA
Motor Design: EC Motor (Electronically Commutated)
Phase: 1-phase
Type: AC Centrifugal Fan
Nominal Voltage: 230 VAC
Nominal Voltage Range: 200 – 277 VAC
Frequency: 50/60 Hz
Dimensions: 280 mm (Impeller Size)
Impeller Size: 280 mm
Number of Blades: 6
Weight: 5.3 kg

[Electrical Data]
Nominal Speed: 2880 RPM
Power Consumption: 705 W
Current Draw: 3.1 A
Control Interface: RS-485 MODBUS-RTU, 0-10V, PWM
Voltage Output: 10 VDC (10 mA) / 20 VDC (50 mA)
Sensor Input: 0-10 V / 4-20 mA
Motor Bearing: Ball Bearing
Protection Class: I (with protective earth)
Insulation Class: B
Environmental Protection: H1

[Performance & ErP Data]
Max. Air Flow: 2250 m³/h
Pressure Increase: 634 Pa
Overall Efficiency : 61.8%
Efficiency Grade: N 73.9
Direction of Rotation: Clockwise (looking at rotor)
Airflow Direction: Radial (Centrifugal)
Mode: S1 (Continuous operation)

[Materials & Construction]
Impeller Material: PP plastic
Rotor Surface: Painted black
Electronics Housing: Die-cast aluminum
Installation Position: Shaft horizontal or rotor on top; rotor on bottom on request
Condensation Drainage: None
Termination: Terminal box

[Reliability & Protection]
Degree of Protection: IP54
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 40 °C (Storage up to 80 °C)
Technical Features: Active PFC, Soft start, Alarm relay, Motor current limitation
EMC Immunity: According to EN 61000-6-2 (Industrial)
EMC Emission: According to EN 61000-6-3 (Household)
Motor Protection: Thermal overload protector (TOP) internally connected
Approval: CE, CCC, EAC, EN 61800-5-1

Application
The R3G280-RP54-B1 is specifically engineered for high-static pressure environments in precision air conditioning units and decentralized ventilation systems where its 2880 RPM backward-curved impeller and 705 W EC motor provide the necessary force to overcome high-resistance filtration, while the integrated MODBUS-RTU and sensor inputs allow for autonomous, energy-efficient pressure control in 230 VAC cleanroom filter fan units (FFU) and industrial cabinet cooling modules that demand a 5.3 kg compact design and reliable performance in ambient temperatures down to -25 °C.
