Description

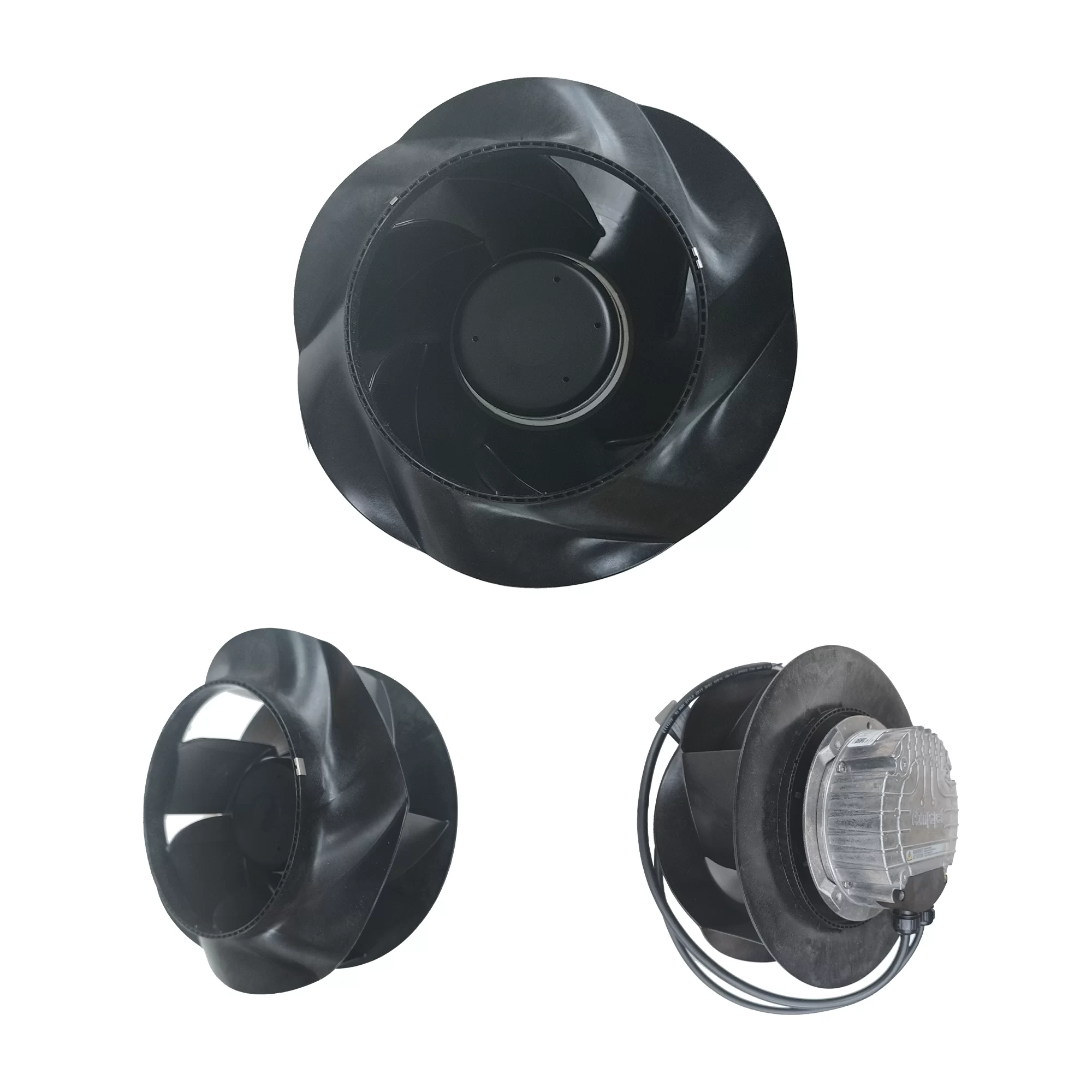

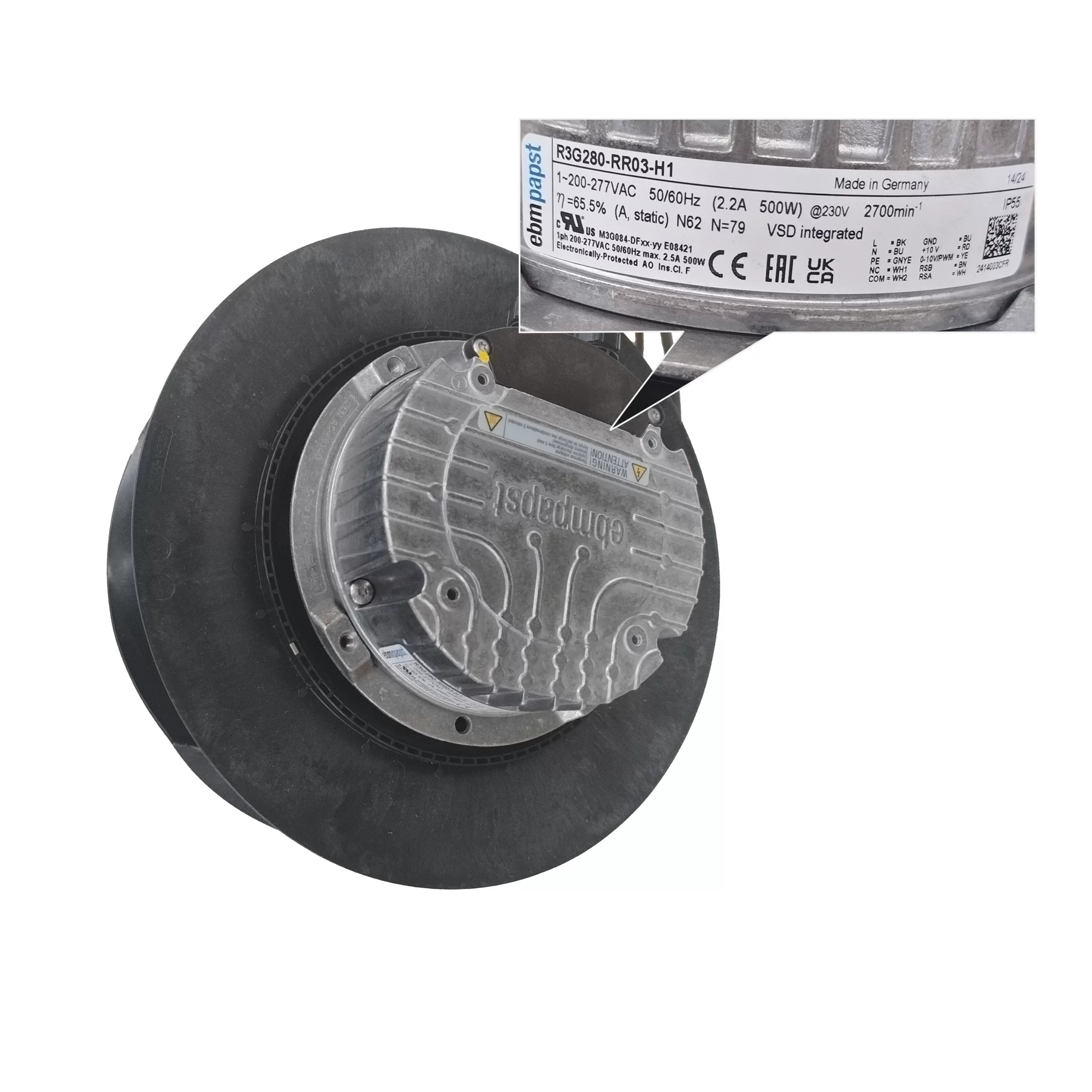

The ebmpapst R3G280-RR03-H1 is a highly efficient EC Centrifugal Fan with a 280mm impeller diameter. It operates on a 230 VAC nominal voltage, with a wide operating range of 200 to 277 VAC at 50/60 Hz. This fan achieves a speed of 2700 RPM, with an input power of 500 W and a current draw of 2.2 A. It boasts an excellent IP55 protection level, indicating strong resistance to dust and splashing water. This model is suitable for various applications requiring precise control and high-efficiency airflow, such as HVAC systems, industrial ventilation, and cooling equipment.
R3G280-RR03-H1 Fan Parameters
Model: R3G280-RR03-H1
Manufacturer: ebmpapst
Type: EC Centrifugal Fan
Impeller Diameter: 280 mm
Rated Voltage: 230 VAC
Voltage Range: 200 to 277 VAC
Frequency: 50/60 Hz
Current Draw: 2.2 A
Power Consumption: 500 W
Speed: 2700 RPM
Protection Level: IP55
Bearing Type: Ball Bearing
Motor: M3G084-CF
Application: HVAC systems, industrial ventilation, cooling equipment.
