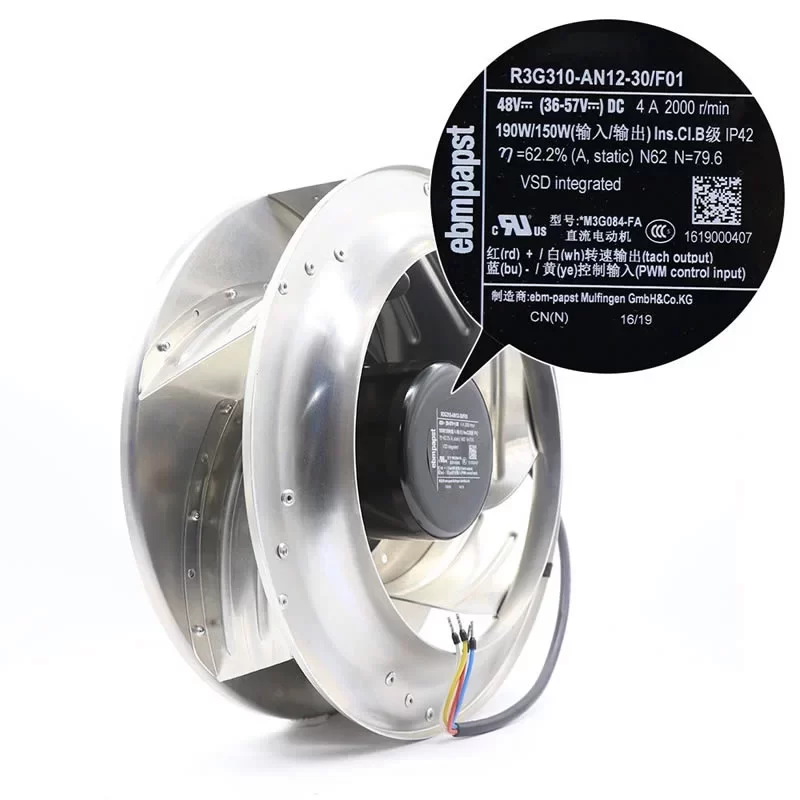

R3G310-AN12-30/F01 ebmpapst 48VDC EC Centrifugal Fan

Description

The ebmpapst R3G310-AN12-30/F01 is a high-performance 48VDC EC Centrifugal Fan unit featuring 6 backward-curved aluminium sheet blades with an Impeller Size of 310 mm and overall Dimensions of 318 x 119.5 mm. Specifically engineered for mission-critical telecommunications cooling, outdoor enclosures, and industrial DC-powered ventilation, this unit is driven by the M3G084-FA brushless EC external rotor motor with maintenance-free ball bearings. Operating on a 48 VDC supply (voltage range 36 – 57 VDC), it delivers a Power Input of 190 W and a Current Draw of 4.0 A at a rated speed of 2000 RPM under running at free air (rfa) conditions. Featuring a rugged black coated rotor surface and IP42 protection, it supports seamless speed control via 0-10V DC or PWM interfaces with integrated soft start and motor current limiting, ensuring superior thermal management and an extended service life in continuous S1 environments at the end.

R3G310-AN12-30/F01 Fan Parameters
Model Number: R3G310-AN12-30/F01
Motor Model: M3G084-FA
Manufacturer: ebmpapst
Type: EC Centrifugal Fan – Backward-curved
Impeller Size: 310 mm
Dimensions: 318 x 318 x 119.5 mm
Weight: 4.35 kg
Bearing Type: Ball bearing
Nominal Voltage: 48 VDC
Voltage Range: 36 – 57 VDC
Current Draw: 4.0 A
Power Input: 190 W
Rated Speed: 2000 RPM
Max. Air Flow: 1324.2 CFM (2250.0 m³/h / 37.50 m³/min)
Max. Static Pressure: 51.01 mmH₂O (500.0 Pa / 2.05 inAq)
Number of Blades: 6
Impeller Material: Aluminium sheet
Rotor Surface: Coated in black
Direction of Rotation: Clockwise (viewed toward rotor)
Insulation Class: “B”
Degree of Protection: IP42
Control Input: 0-10 VDC / PWM
Output Signal: Tach output
Motor Protection: Thermal overload protector (TOP) internally wired
Technical Features: Soft start; Motor current limit; Over-temperature protection
EMC Interference Emission: Acc. to EN 55022 (Class B)
EMC Interference Immunity: Acc. to EN 61000-6-2 (Industrial environment)
Condensation Drainage Holes: None
Installation Position: Any
Mode: S1
Protection Class: III (Internal)
Max. Ambient Temperature: +60 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60950-1; CE
Approval: CCC; CSA C22.2 No. 77; UL 2111

Application
The ebmpapst R3G310-AN12-30/F01 fan is the primary cooling component for 48V DC-powered telecommunications base stations, industrial server racks, and renewable energy storage systems requiring high-efficiency centrifugal airflow with a 310mm backward-curved aluminium impeller.
