Description

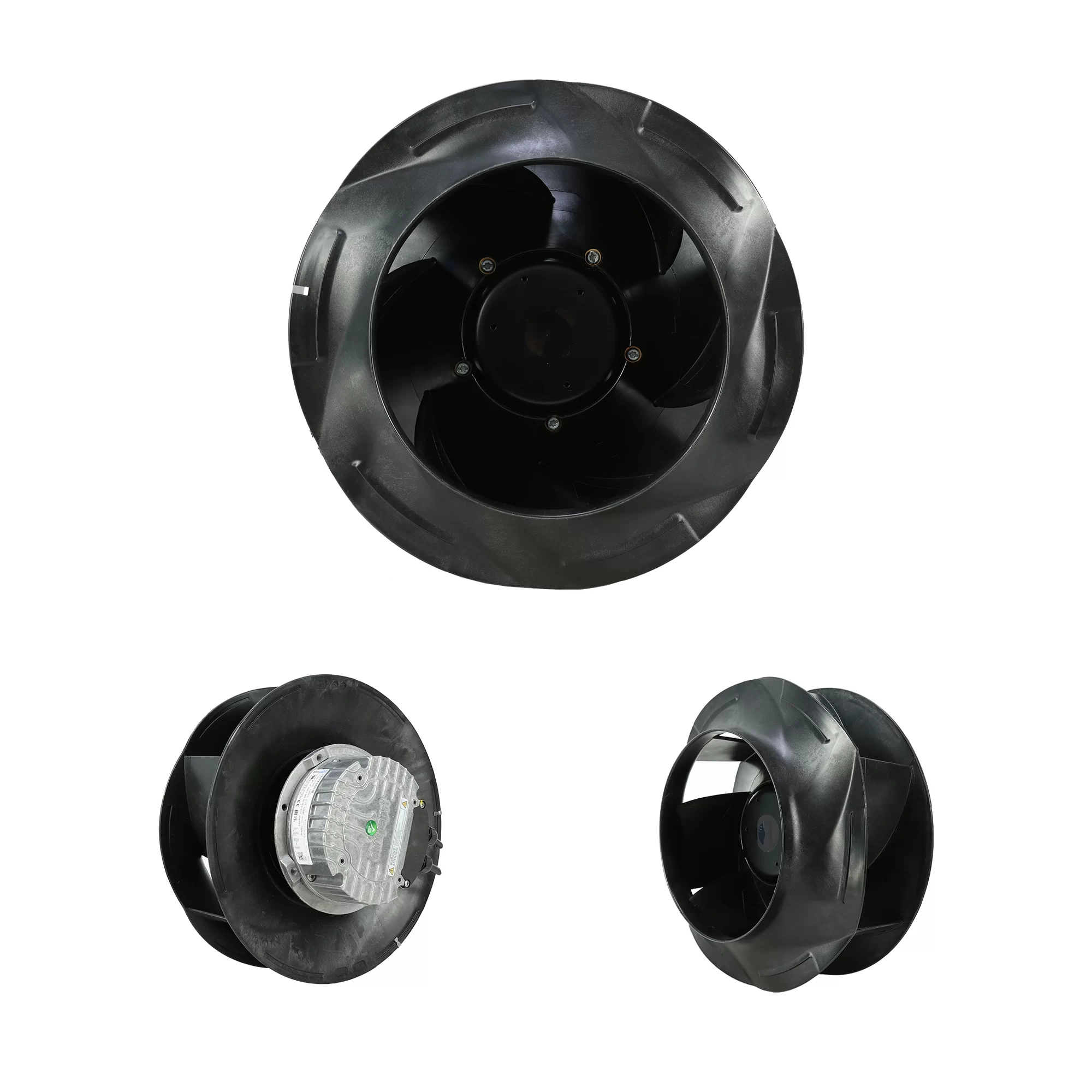

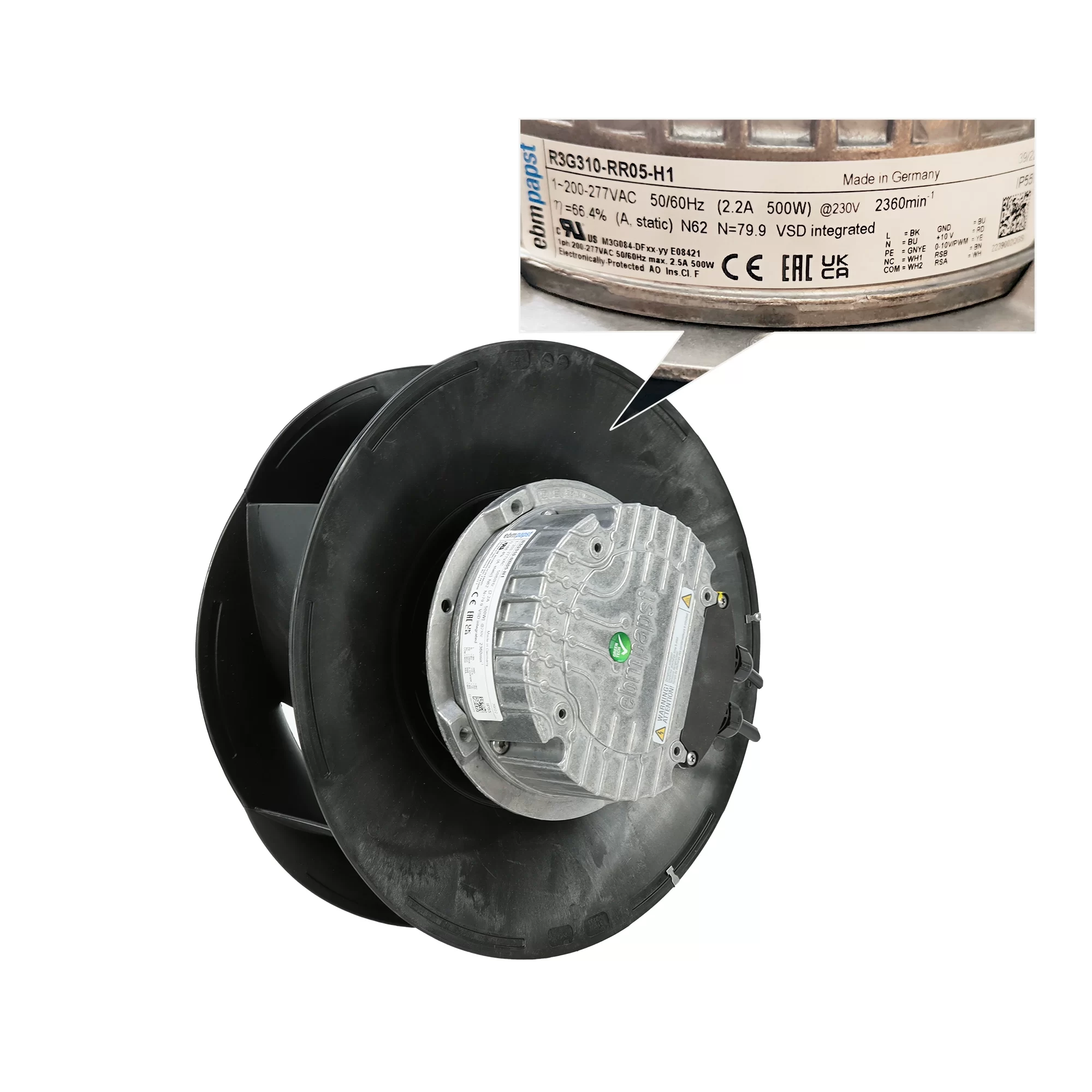

The ebmpapst R3G310-RR05-H1 is a high-performance EC Centrifugal Fan measuring 325.5mm in diameter and 200.7mm in width. It operates on 230 VAC single-phase at 50/60 Hz. This fan consumes 500 W of input power, drawing 2.2 A of current, achieving a speed of 2360 RPM and providing an airflow of 2400 m³/h (equivalent to 1412.6 CFM). Its static pressure is 462 Pa (1.854 inH2O) and the noise level is 72 dB(A). It features a robust ball bearing system for durability and boasts an IP54 ingress protection rating. The impeller is made of plastic, and the enclosure material is aluminum. It incorporates an electronically commutated motor with integrated PWM control and an internal thermal overload protector. This fan is designed for various air purification and industrial applications, including air handling units, ventilation systems, and cooling systems where high pressure and efficient air movement are required.
R3G310-RR05-H1 Fan Parameters
Model: R3G310-RR05-H1
Manufacturer: ebmpapst
Type: EC Centrifugal Fan
Fan dimensions: 325.5mm diameter, 200.7mm width
Rated Voltage: 230 VAC
Operating Voltage Range: 200 to 277 VAC
Frequency: 50/60 Hz
Rated Current: 2.2 A
Power Consumption: 500 W
Airflow: 2400 m³/h (1412.6 CFM)
Static Pressure: 462 Pa (1.854 inH2O)
Speed: 2360 RPM
Noise Level: 72 dB(A)
Bearing Type: Ball Bearing
Termination: 5 Wire Leads
Impeller Material: Plastic
Enclosure Material: Aluminum
Insulation Class: F
Protection Level: IP54
Operating Temperature: -25 to 60°C
Storage Temperature: -40 to 80°C
Weight: 4.7 kg
Motor Type: M3G084-DF, 1-phase
Motor Protection: Thermal Overload Protector TOP wired internally
Control: PWM Control
Features: Output 10 VDC, max. 10 mA
Application: Air handling units, ventilation systems, air purification, industrial cooling.
