R3G355-RB03-10 ebmpapst 230VAC 355mm EC Centrifugal Fan

Description

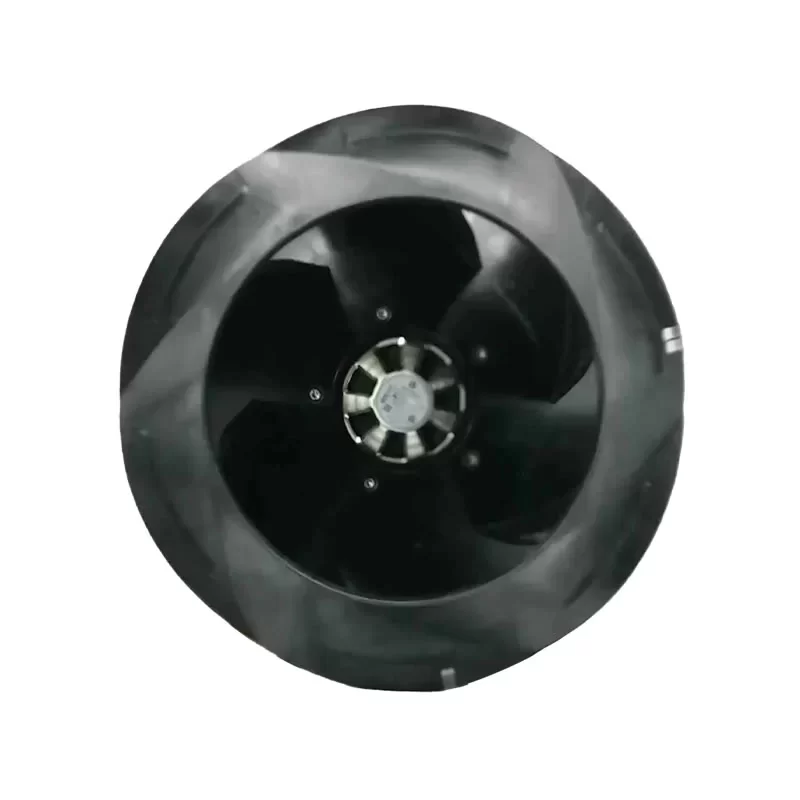

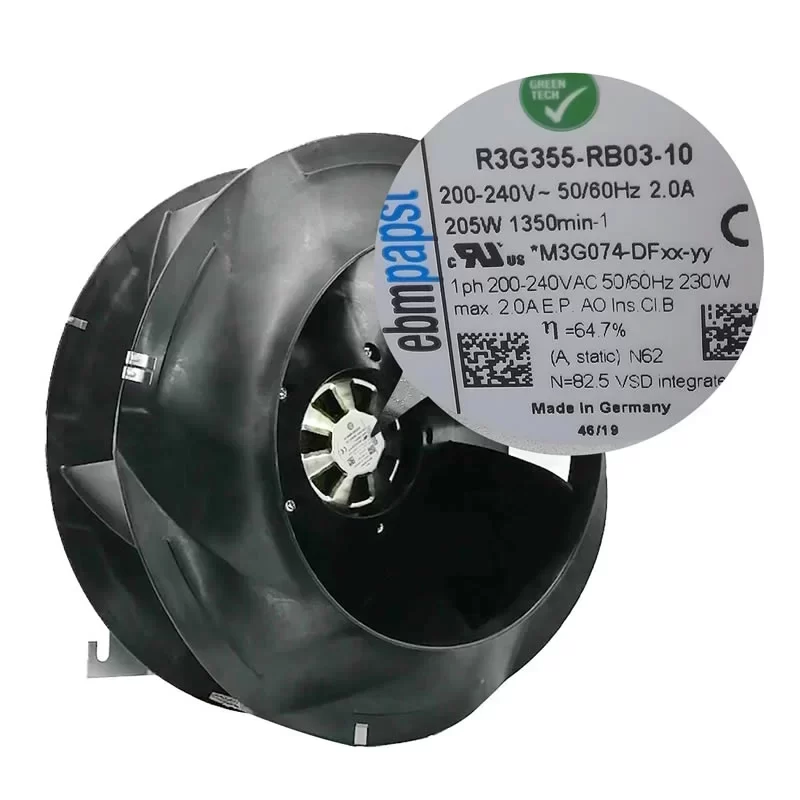

The ebmpapst R3G355-RB03-10 is a high-efficiency 230 V single-phase GreenTech EC centrifugal fan featuring a 355 mm backward-curved RadiCal impeller. Driven by the compact M3G074-DF external rotor motor with integrated electronics, this unit delivers an optimized airflow of 2105 m³/h while maintaining an exceptionally high static efficiency grade of N 82.5. The impeller is constructed from durable PP plastic, designed for quiet and energy-saving air displacement in a variety of ventilation scenarios. Featuring a “plug-and-play” electrical hookup and advanced motor protection including soft start and power limiting, the R3G355-RB03-10 offers a reliable, low-maintenance thermal management solution for industrial and commercial HVAC systems across an ambient temperature range of -25 °C to 50 °C.

R3G355-RB03-10 Fan Parameters
Model Number: R3G355-RB03-10
Manufacturer: ebmpapst
Motor Model: M3G074-DF
Series: RadiCal EC Centrifugal Series
Type: EC Centrifugal Fan (Backward-Curved)
Impeller Size: 355 mm
Dimensions: 355 x 355 x 172 mm
Bearing Type: Ball Bearing
Nominal Voltage: 230 VAC
Voltage Range: 200 – 240 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Weight: 3.7 kg
Power Consumption: 205 W
Nominal Current: 2.0 A
Speed: 1350 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Efficiency Grade (N): 82.5
Overall Efficiency (ηes): 64.7%
Motor Design: Single-phase EC External Rotor Motor
Technical Features: Power limiter; Soft start; Line undervoltage detection
Motor Protection: Electronic motor protection; Thermal overload protection for motor
Insulation Class: Class B
Touch Current: <= 3.5 mA
Electrical Hookup: With plug
Number of Blades: 6
Direction of Rotation: Clockwise, viewed toward rotor
Impeller Material: PP plastic
Rotor Surface: Thick-film passivated
Installation Position: Any
Condensation Drainage: None, open rotor
Degree of Protection: IP54 (Installation- and position-dependent)
Environmental Protection Class: F3-1
Operating Temperature: -25 – +50 °C
Standard Compliance: EN 60335-1, CE
Approval Agency: UL 1004-7, CSA C22.2 No. 77

Application
The ebmpapst R3G355-RB03-10 is used in commercial refrigeration condensers, industrial heat exchangers, air conditioning units, cooling for electrical cabinets, and small-scale ventilation systems.
