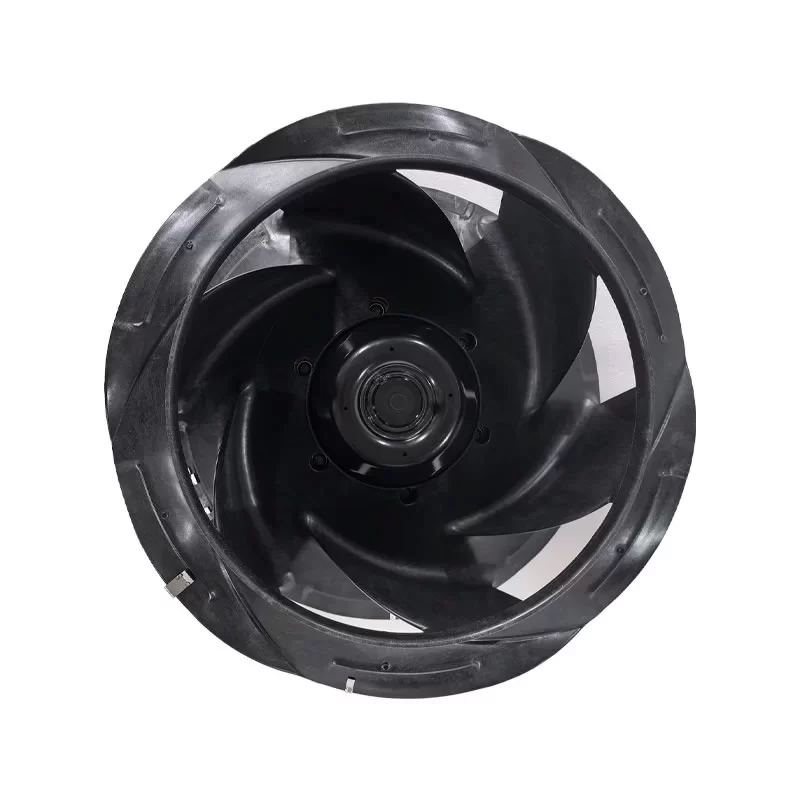

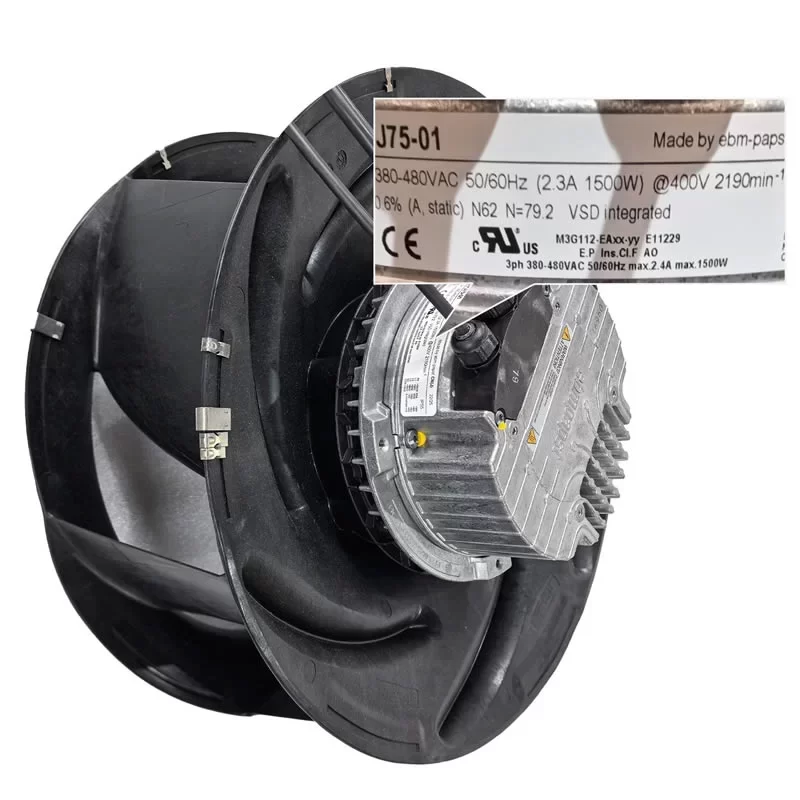

R3G400-FJ75-01 ebmpapst 400VAC 400mm EC Centrifugal Fan

Description

The ebmpapst R3G400-FJ75-01 is a high-efficiency 380-480 V three-phase GreenTech EC centrifugal fan featuring a 400 mm backward-curved RadiPac impeller made of high-strength PP plastic. Driven by the M3G112-EA external rotor motor, this unit achieves a maximum airflow of 5445 m³/h and an outstanding overall efficiency of 70.6%. Designed for intelligent climate control, it integrates an RS-485 Modbus RTU interface, a PID controller, and comprehensive protection features including line undervoltage and phase failure detection. With its IP55-rated die-cast aluminum electronics housing and specialized capability for occasional start-up at temperatures as low as -40 °C, the R3G400-FJ75-01 offers precision speed control and extreme reliability for industrial HVAC systems and demanding refrigeration applications.

R3G400-FJ75-01 Fan Parameters
Model Number: R3G400-FJ75-01
Manufacturer: ebmpapst
Motor Model: M3G112-EA
Series: RadiPac EC Centrifugal Series
Type: EC Centrifugal Fan (Backward-Curved)
Impeller Size: 400 mm
Dimensions: 400 x 400 x 316 mm
Bearing Type: Ball Bearing
Nominal Voltage: 400 VAC
Voltage Range: 380 – 480 VAC
Phase: 3~
Frequency: 50 / 60 Hz
Weight: 14.1 kg
Power Consumption: 1500 W
Nominal Current: 2.3 A
Speed: 2190 RPM (2195 RPM at peak point)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Efficiency Grade (N): 79.2
Overall Efficiency (ηes): 70.6%
Motor Design: 3-Phase EC External Rotor Motor
Control Interface: 0-10 VDC / PWM / RS-485 Modbus RTU
Technical Features: Integrated PID controller; Soft start; Motor current limitation; PFC (passive); External 24 V input; 10 VDC output (max. 10 mA); Operation and alarm display; Alarm relay
Motor Protection: Thermal overload protector (TOP) internally connected; Reverse polarity and locked-rotor protection
Insulation Class: Class F
Touch Current: <= 3.5 mA
Electrical Hookup: Terminal box
Number of Blades: 6
Direction of Rotation: Clockwise, viewed toward rotor
Impeller Material: PP plastic
Electronics Housing Material: Die-cast aluminum
Rotor Surface: Painted black
Installation Position: Shaft horizontal or rotor on bottom
Condensation Drainage: Rotor side holes
Degree of Protection: IP55
Environmental Protection Class: H1
Operating Temperature: -40 – +45 °C (Occasional start-up permitted down to -40 °C)
Standard Compliance: EN 61800-5-1, CE
Approval Agency: UL 1004-7, CSA C22.2 No. 77, EAC

Application
The ebmpapst R3G400-FJ75-01 is used in high-efficiency air handling units (AHU), data center precision cooling, cleanroom ventilation, industrial heat exchangers, and smart building HVAC systems.
