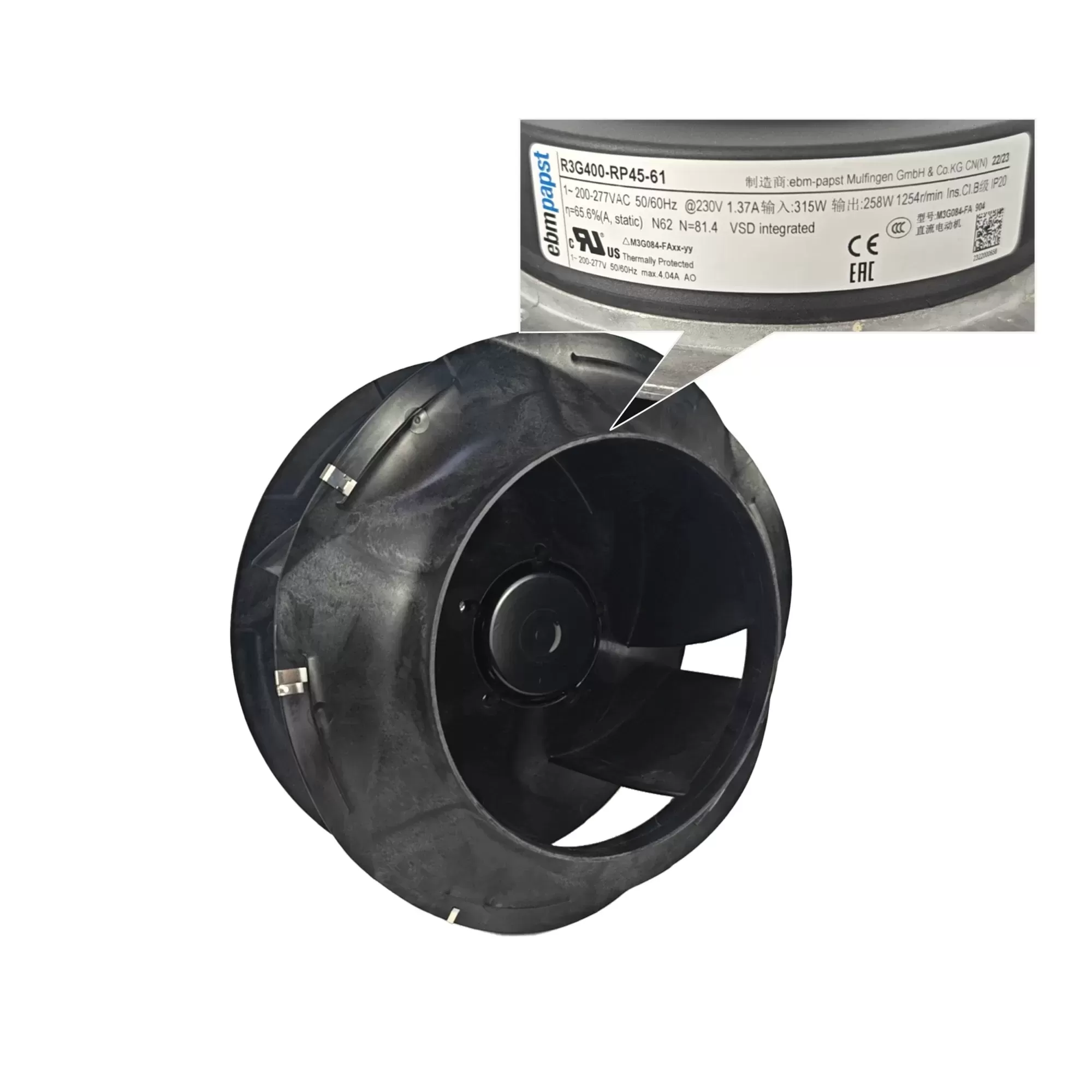

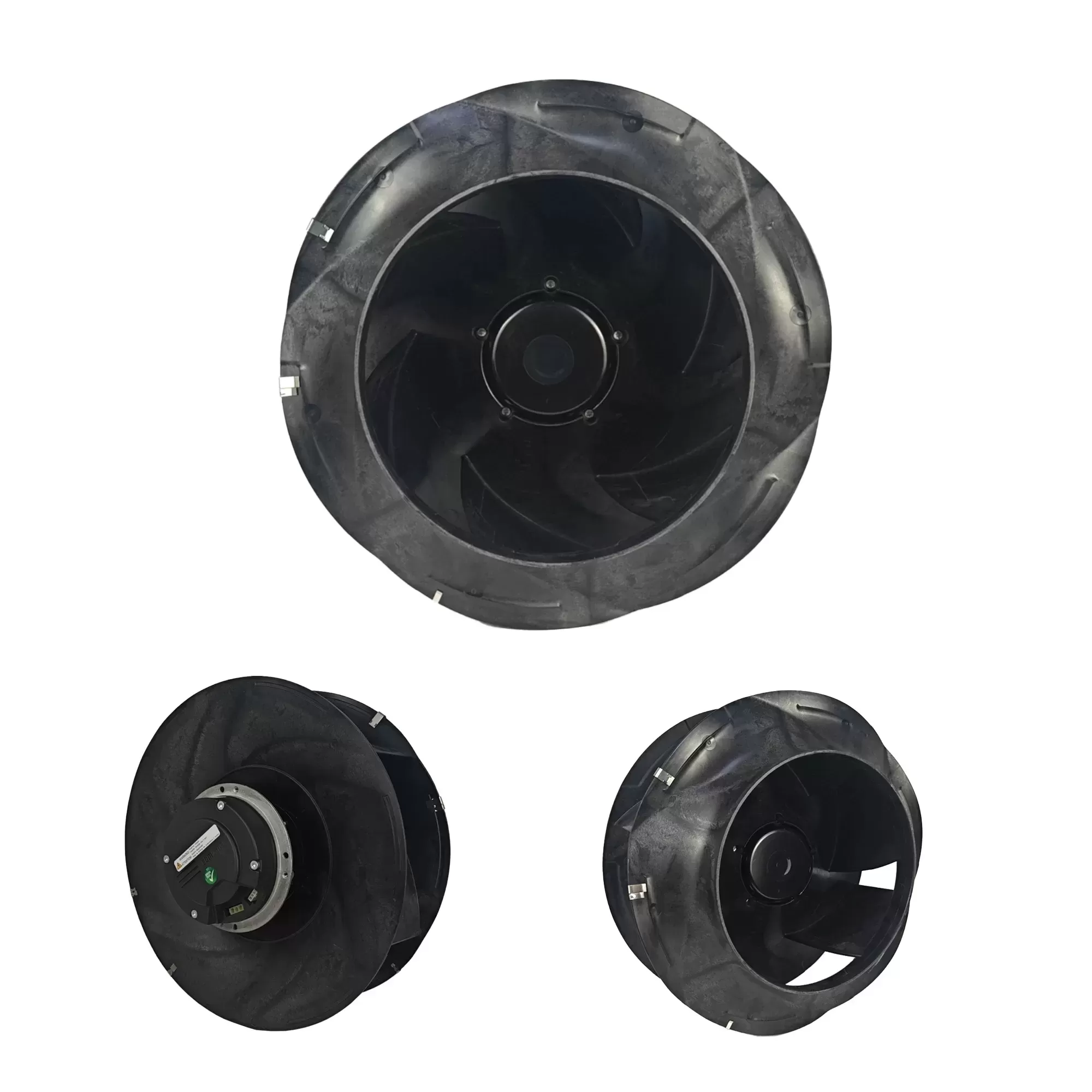

R3G400-RP45-61 ebmpapst EC centrifugal fan

Description

The ebmpapst R3G400-RP45-61 is a high-efficiency EC centrifugal fan with backward curved blades measuring 400mm in diameter. It operates on 230 VAC at 50/60 Hz, drawing 1.37 A of current with a power consumption of 315 W. This fan achieves a speed of 1254 RPM, providing an airflow of 2805 m³/h. The noise level is 78 dB(A). It features ball bearings for reliable operation and has an IP20 ingress protection rating. The fan is designed for use in applications like Fan Filter Units (FFU), HVAC systems, and air purification, where efficient air movement and control are crucial. Its EC technology ensures high efficiency and silent operation.

R3G400-RP45-61 Fan Parameters
Model: R3G400-RP45-61
Manufacturer: ebmpapst
Type: EC Centrifugal Fan (Backward Curved)
Fan Diameter: 400 mm
Rated Voltage: 230 VAC
Nominal Voltage Range: 200 to 277 VAC
Frequency: 50/60 Hz
Rated Current: 1.37 A
Power Consumption: 315 W
Speed: 1254 RPM
Airflow: 2805 m³/h
Noise Level: 78 dB(A)
Bearing Type: Ball Bearing
Motor Type: M3G084-FA
Ingress Protection: IP20
Insulation Class: F
Operating Temperature: -25 to 40°C
Number of Blades: 6
Blade Material: Plastic
Application: Fan Filter Units (FFU), HVAC systems, air purification.
Weight: 6.5 kg
