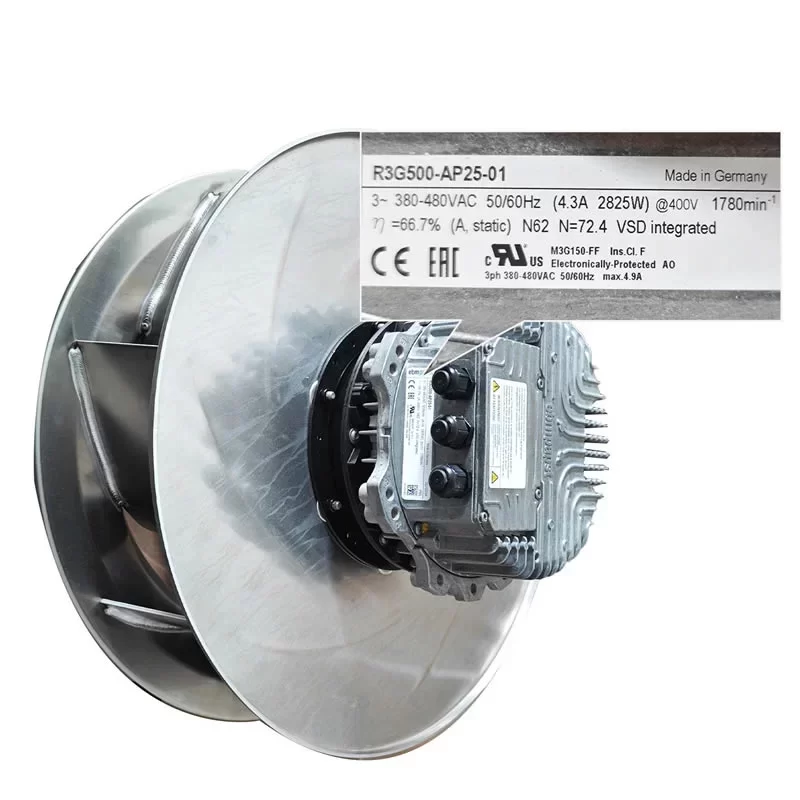

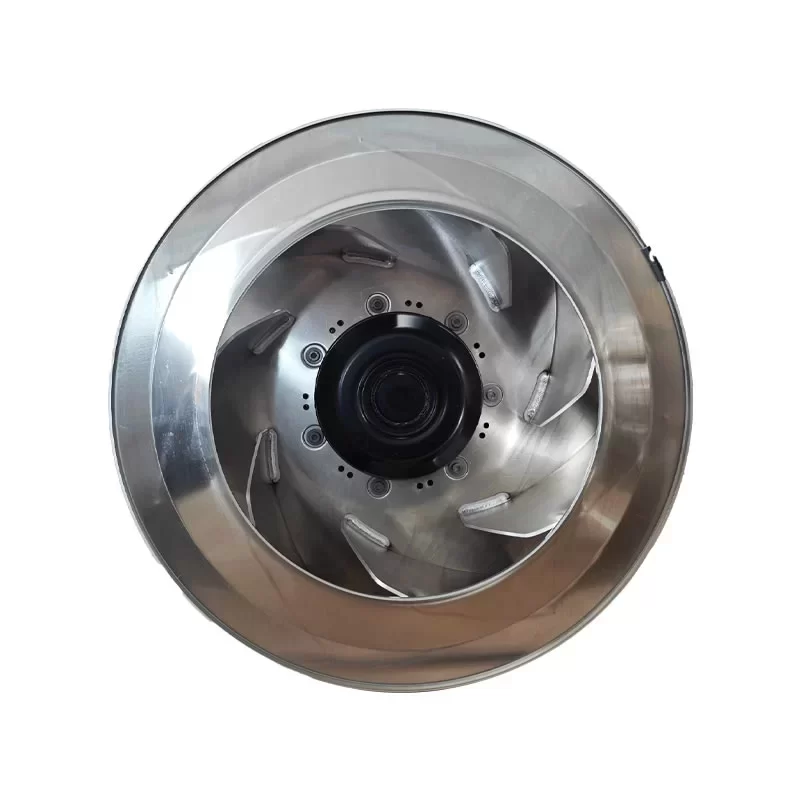

R3G500-AP25-01 ebmpapst 400VAC 500mm EC Centrifugal Fan

Description

The ebmpapst R3G500-AP25-01 is a high-performance 380-480 V three-phase GreenTech EC centrifugal fan from the RadiPac series, featuring a 500 mm backward-curved aluminum impeller. Driven by a powerful M3G150-FF external rotor motor with integrated electronics, this unit achieves a maximum airflow of 8140 m³/h and an impressive static efficiency of 66.7%. The fan is engineered for intelligent thermal management, featuring a built-in PID controller, RS-485 Modbus RTU interface, and active power limiting for optimal energy consumption. With its robust IP55-rated die-cast aluminum electronics housing and maintenance-free ball bearings, the R3G500-AP25-01 provides superior reliability and precision speed control for large-scale industrial ventilation and mission-critical HVAC infrastructure.

R3G500-AP25-01 Fan Parameters
Model Number: R3G500-AP25-01
Manufacturer: ebmpapst
Motor Model: M3G150-FF
Series: RadiPac EC Centrifugal Series
Type: EC Centrifugal Fan (Backward-Curved)
Impeller Size: 500 mm
Dimensions: 500 x 500 x 365 mm
Bearing Type: Ball Bearing
Nominal Voltage: 400 VAC
Voltage Range: 380 – 480 VAC
Phase: 3~
Frequency: 50 / 60 Hz
Weight: 24.6 kg
Power Consumption: 2825 W
Nominal Current: 4.3 A
Speed: 1780 RPM (1790 RPM at peak point)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Efficiency Grade (N): 72.4
Overall Efficiency (ηes): 66.7%
Motor Design: 3-Phase EC External Rotor Motor
Control Interface: 0-10 VDC / PWM / RS-485 Modbus RTU
Technical Features: Integrated PID controller; Soft start; Power limiter; PFC (passive); External 24 V input; 10 VDC & 20 VDC outputs; Sensor input (0-10 V or 4-20 mA); Alarm relay
Motor Protection: Reverse polarity, locked-rotor, and thermal overload protection
Insulation Class: Class F
Touch Current: <= 3.5 mA
Electrical Hookup: Terminal box
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Impeller Material: Sheet aluminum
Electronics Housing Material: Die-cast aluminum
Rotor Surface: Painted black
Installation Position: Shaft horizontal or rotor on bottom
Condensation Drainage: Rotor side holes
Degree of Protection: IP55
Environmental Protection Class: H1
Operating Temperature: -25 – +60 °C
Standard Compliance: EN 61800-5-1, CE
Approval Agency: UL 1004-7, CSA C22.2 No. 77, EAC

Application
The ebmpapst R3G500-AP25-01 is used in high-efficiency air handling units (AHU), data center precision cooling, cleanroom ventilation, industrial heat exchangers, and smart building HVAC systems.
