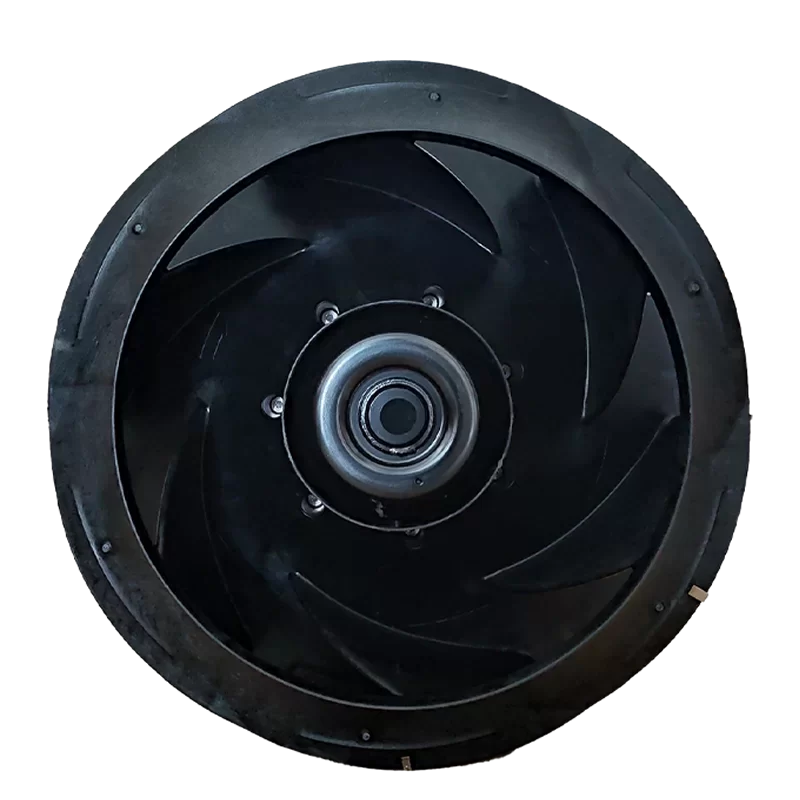

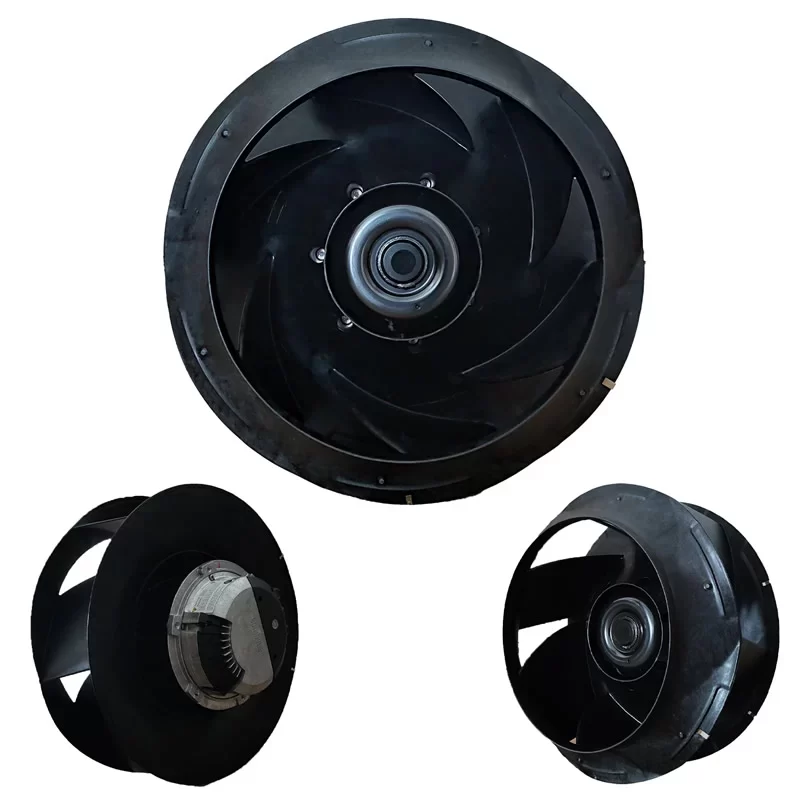

R3G560-RA24-03 ebmpapst 400V EC Centrifugal Fan 560mm

$470.98

SKU: R3G560-RA24-03
Tag:

Description

The ebmpapst R3G560-RA24-03 is an EC Centrifugal Fan with measuring 560 mm in diameter, powered by the M3G150-FF motor. Operating on a nominal voltage of 400 VAC (range 380..480 VAC) at 50 Hz/60 Hz frequencies, this three-phase fan is part of the high-efficiency RadiCal series. It delivers a maximum airflow of 9920 m3/h at a speed of 1750 RPM, with a maximum power input of 3500 W and a current draw of 5.4 A. Featuring IP55 protection and advanced controls like an Integrated PI controller and MODBUS compatibility, it is an energy-efficient solution for continuous operation (S1) in Air Handling Units (AHU), clean rooms, and high-capacity ventilation systems.

R3G560-RA24-03 Fan Parameters
Model: R3G560-RA24-03
Manufacturer: ebmpapst
Fan Type: EC Centrifugal Fan (Backward-Curved Motorized Impeller)
Dimensions: 560 mm
Motor: M3G150-FF
Phase: 3
Nominal Voltage: 400 VAC
Nominal Voltage Range: 380 VAC..480 VAC
Frequency: 50 Hz/60 Hz
Method of obtaining data: maximum load
Rated Speed: 1750 RPM
Power Consumption: 3500 W
Current Draw: 5.4 A
Airflow: 9920 m3/h (at 0 Pa)
Min. Ambient Temperature: −40 ∘C
Max. Ambient Temperature: 40 ∘C
Weight: 21.6 kg
Motor Size: 150
Rotor Surface: Painted black
Electronics Housing Material: Die-cast aluminum
Impeller Material: PP plastic
Number of Blades: 6
Direction of Rotation: Clockwise, viewed toward rotor
Degree of Protection: IP55
Insulation Class: “F”
Moisture / Environmental Protection Class: H1
Max. Permitted Ambient Temp. for motor (transport/storage): +80 ∘C
Min. Permitted Ambient Temp. for motor (transport/storage): −40 ∘C
Installation Position: Shaft horizontal or rotor on bottom
Condensation Drainage Holes: On rotor side
Mode: S1
Motor Bearing: Ball bearing
EMC Immunity to Interference: According to EN 61000-6-2 (industrial environment)
EMC Interference Emission: According to EN 61000-6-3 (household environment, with exceptions)
Touch Current according to IEC 60990 (measuring circuit Fig. 4, TN system): ≤3.5 mA
Electrical Hookup: Terminal box
Motor Protection: Reverse polarity and locked-rotor protection
Protection Class Assignment: I (with customer connection of protective earth)
Conformity with Standards: EN 61800-5-1; CE
Approval: EAC; UL 1004-7+60730−1; CSA C22.2 No. 77+CAN/CSA-E60730-1

Application
The R3G560-RA24-03 EC Centrifugal Fan is a high-performance unit specifically designed for high system pressure applications without a scroll housing. Its efficiency and integrated controls (including MODBUS and a PI controller) make it optimal for precise air management in Air Handling Units (AHU), clean room systems, commercial HVAC installations, and other industrial cooling and ventilation systems.
