Description

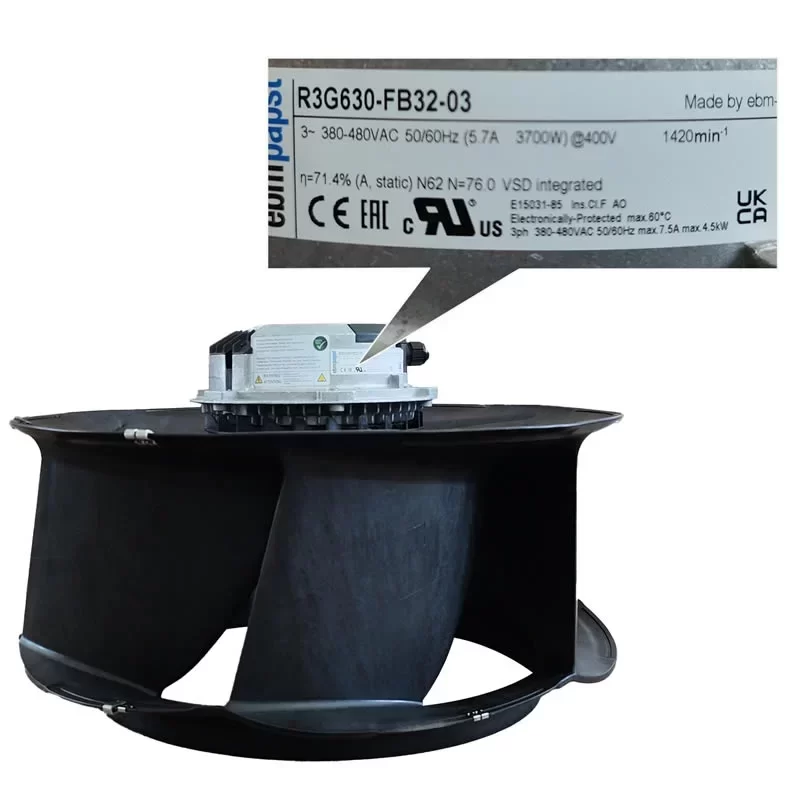

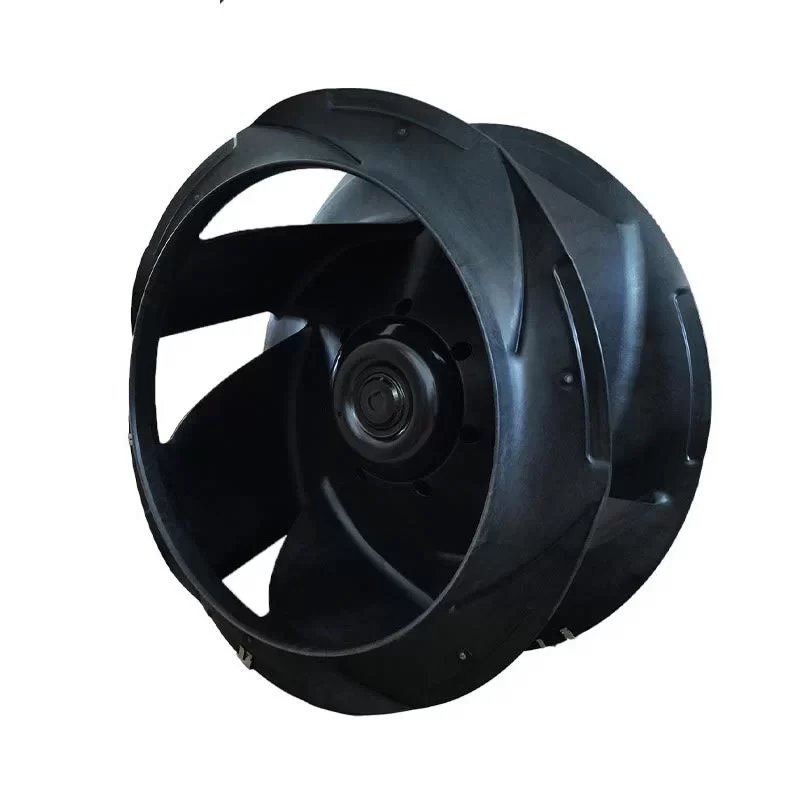

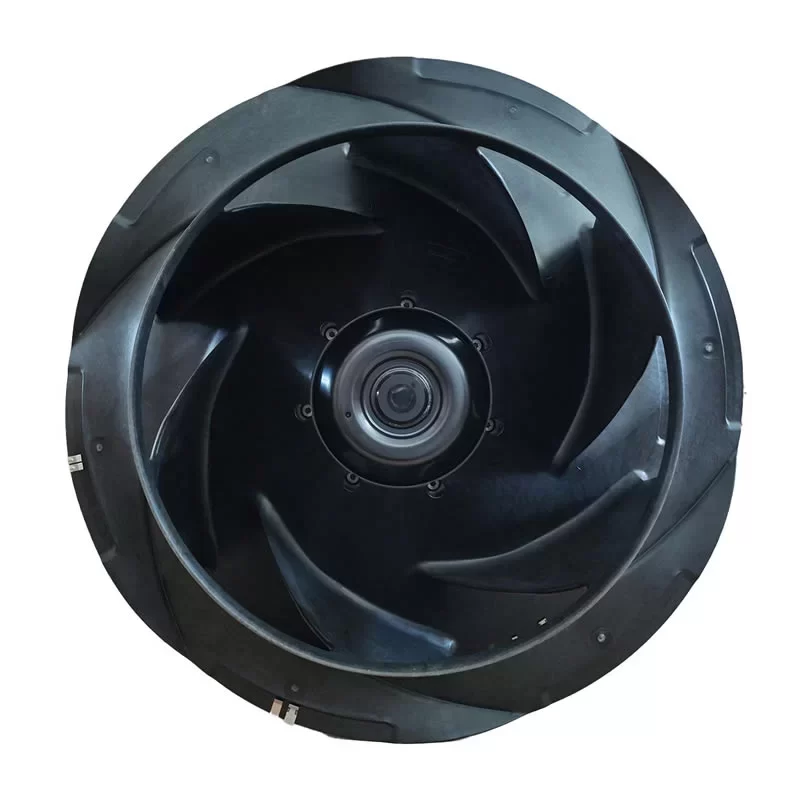

The ebmpapst R3G630-FB32-03 is a high-performance 400VAC EC Centrifugal Fan with dimensions of 660 x 660 x 405 mm, featuring a RadiPac backward-curved, single-intake impeller with a support bracket, specifically engineered for mission-critical cooling in Industrial Frequency Converters and large-scale air handling units. Driven by a 3-phase high-efficiency EC external rotor M3G150-IF motor with integrated electronics and maintenance-free ball bearings, this 28.6 kg unit operates on a 380 – 480 VAC supply delivering a Max. Power Consumption of 3700 W and a Max. Current Draw of 5.7 A at a rated speed of 1420 RPM. This High-performance unit achieves a Max. Air Flow of 7466.1 CFM (12685.0 m³/h / 211.42 m³/min) and a Max. Static Pressure of 72.50 mmH₂O (711.0 Pa / 2.85 inAq). Featuring intelligent speed regulation via 0-10V/PWM and RS-485 MODBUS-RTU (V6.3), integrated PI controller, and passive PFC, this 6-blade unit with PP plastic construction is optimized for industrial VFD systems requiring advanced motor protection and massive airflow in a black-painted rotor design at the end.
R3G630-FB32-03 Fan Parameters
Model Number: R3G630-FB32-03
Motor Model: M3G150-IF
Manufacturer: ebmpapst
Type: EC Centrifugal Fan (RadiPac, backward-curved, single-intake, with support bracket)
Impeller Size: 630 mm
Dimensions: 660 x 660 x 405 mm
Weight: 28.6 kg
Bearing Type: Ball bearing
Phase: 3~
Nominal Voltage: 400 VAC
Nominal Voltage Range: 380 – 480 VAC
Frequency: 50 / 60 Hz
Method of Obtaining Data: ml (Max. load)
Max. Current Draw: 5.7 A
Max. Power Consumption: 3700 W
Rated Speed: 1420 RPM
Max. Air Flow: 7466.1 CFM (12685.0 m³/h / 211.42 m³/min)
Max. Static Pressure: 72.50 mmH₂O (711.0 Pa / 2.85 inAq)
Working Air Flow: 12685.0 m³/h
Static Pressure Increase: 711.0 Pa
Efficiency Grade N: 76
Overall Efficiency ηes: 71.4%
Control Interface: Control interface with SELV; RS-485 MODBUS-RTU (V6.3)
Output Signal: Alarm relay; Status message via LED; Voltage output 3.3-24 VDC (Pmax=800mW)
Number of Blades: 6
Technical Features: Integrated PI controller; Passive PFC; MODBUS V6.3; Soft start; Power limiter; Motor current limitation; Line undervoltage / phase failure detection; Configurable inputs/outputs (I/O)
Motor Protection: Electronic motor protection; Thermal overload protection for electronics/motor
Touch Current (IEC 60990): <= 3.5 mA
Insulation Class: Class F
Degree of Protection: IP55
Protection Class: I (if protective earth is connected)
Humidity Class: H1 (Moist – occasional or constantly high level of humidity)
Impeller Material: PP plastic
Housing Material: Sheet steel, galvanized (Support plate); Steel, painted black (Support bracket)
Rotor Surface: Painted black
Direction of Rotation: Clockwise (viewed toward rotor)
Installation Position: Shaft horizontal or rotor on bottom; rotor on top on request
Condensation Drainage Holes: On rotor side
Mode: S1
Strength Class of Screws: 8.8
Ambient Temperature (Max.): 45 °C (Transport/Storage: +80 °C)
Min. Operating Temperature: -40 °C (Transport/Storage: -40 °C)
Standard Compliance: EN 61800-5-1; CE; UKCA
Approval: UL 1004-7 + 60730-1; EAC; CSA C22.2 No. 77 + CAN/CSA-E60730-1; CCC
Application
The ebmpapst R3G630-FB32-03 RadiPac module is the primary cooling component for ultra-large industrial frequency converters and high-efficiency ventilation systems requiring high-efficiency EC performance, PI control, and integrated MODBUS-RTU communication.
