Description

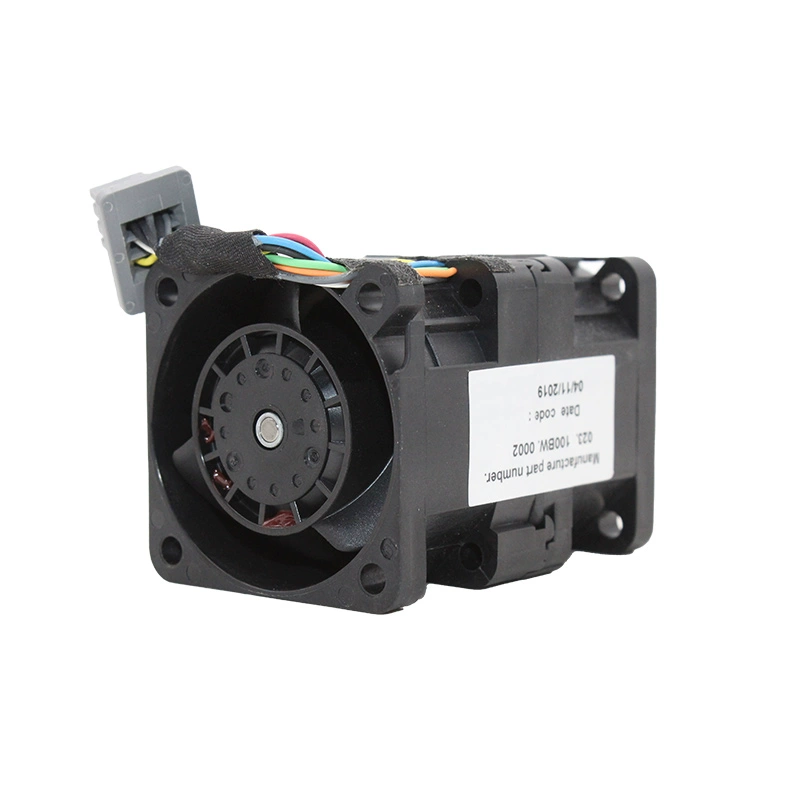

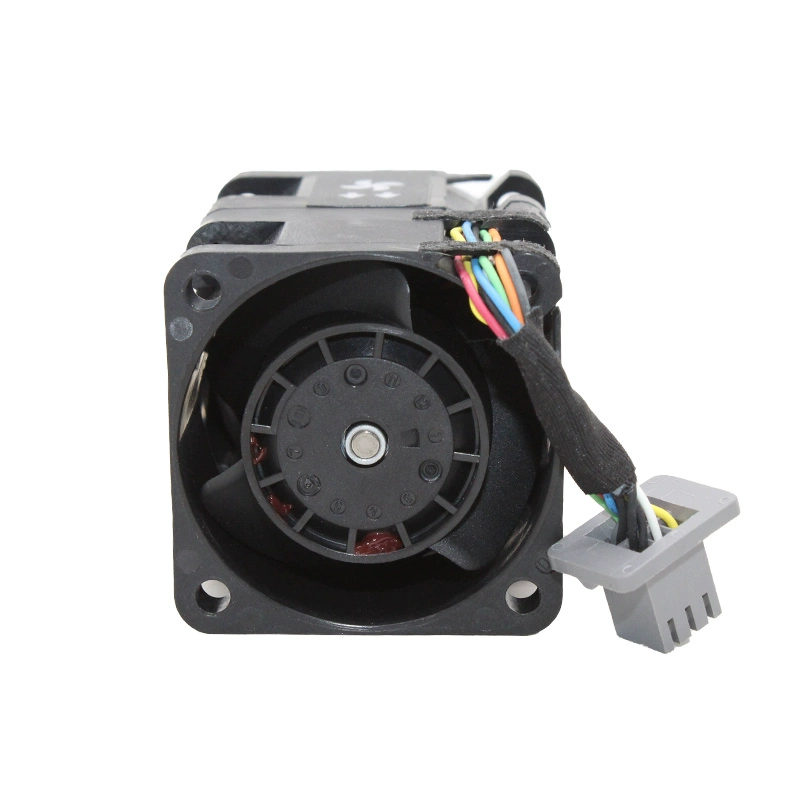

The Nidec R40W12BS3NC8-07T10 is an extremely powerful and compact DC Axial Cooling Fan from Nidec, engineered for high-density cooling requirements. Operating on 12V DC power, it draws a significant 1.91A of current, resulting in a robust 22.92W power consumption. This fan measures 40mm x 40mm x 56mm, a unique depth that allows it to achieve its high performance. It operates at an impressive 16,000 RPM, delivering substantial airflow and exceptional static pressure, making it ideal for pushing air through tightly packed components or heat sinks. Equipped with a 4-wire connector and built with dual ball bearings for extended durability, this fan is a staple in critical server and networking hardware where maximum cooling in a small footprint is essential, despite its relatively high noise output.
R40W12BS3NC8-07T10 Japan Nidec 4056 cooling fan 12V 1.91A dual motor fan
Manufacturer: Nidec
Model Number: R40W12BS3NC8-07T10
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Rated Current: 1.91A
Rated Power: 22.92W
Speed: 16,000 RPM
Airflow: 30-35 CFM
Static Pressure: 20-25 mmH2O
Noise Level: 60-65 dBA
Dimensions: 40mm x 40mm x 56mm
Connector: 4-Wire
Bearing Type: Dual Ball Bearing
