Description

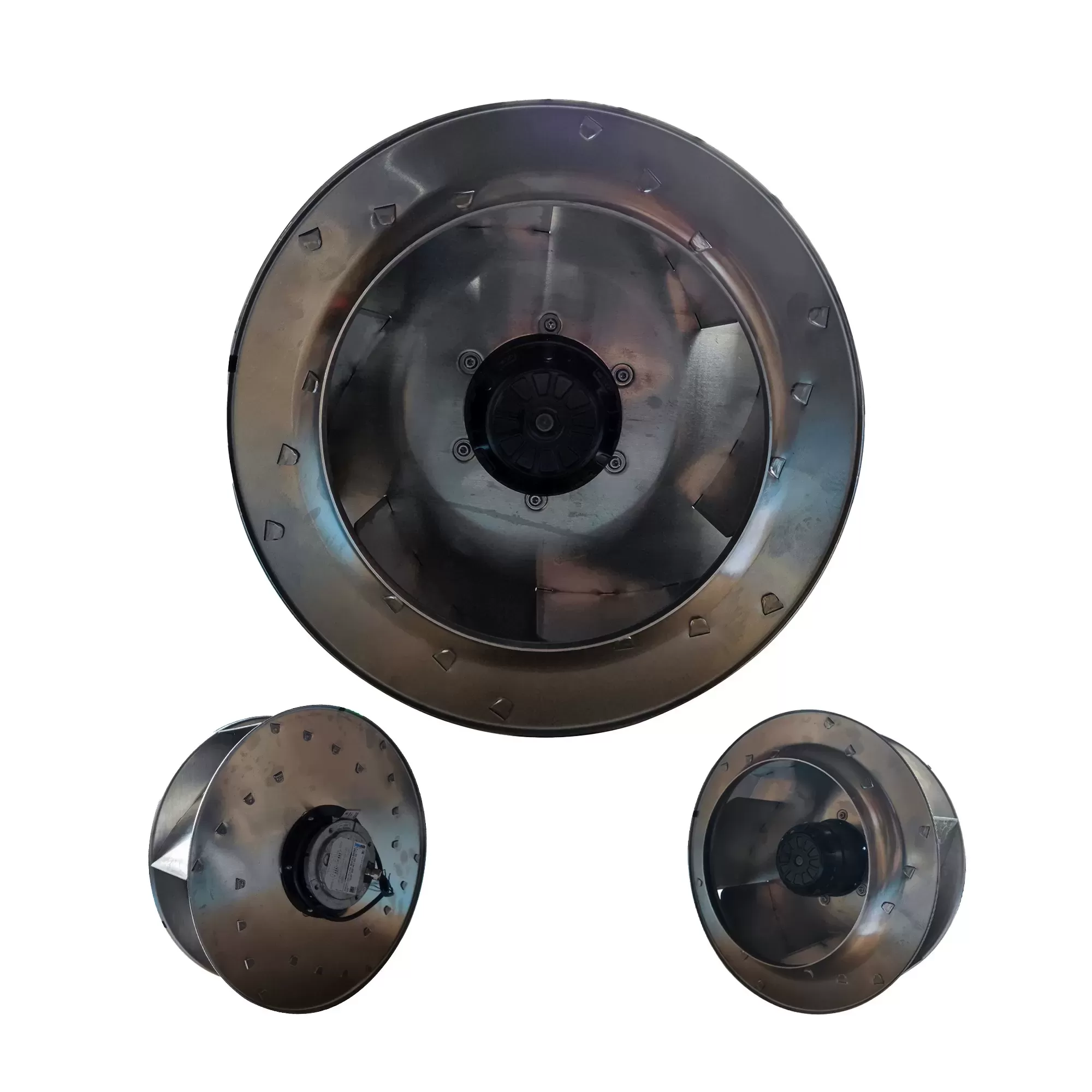

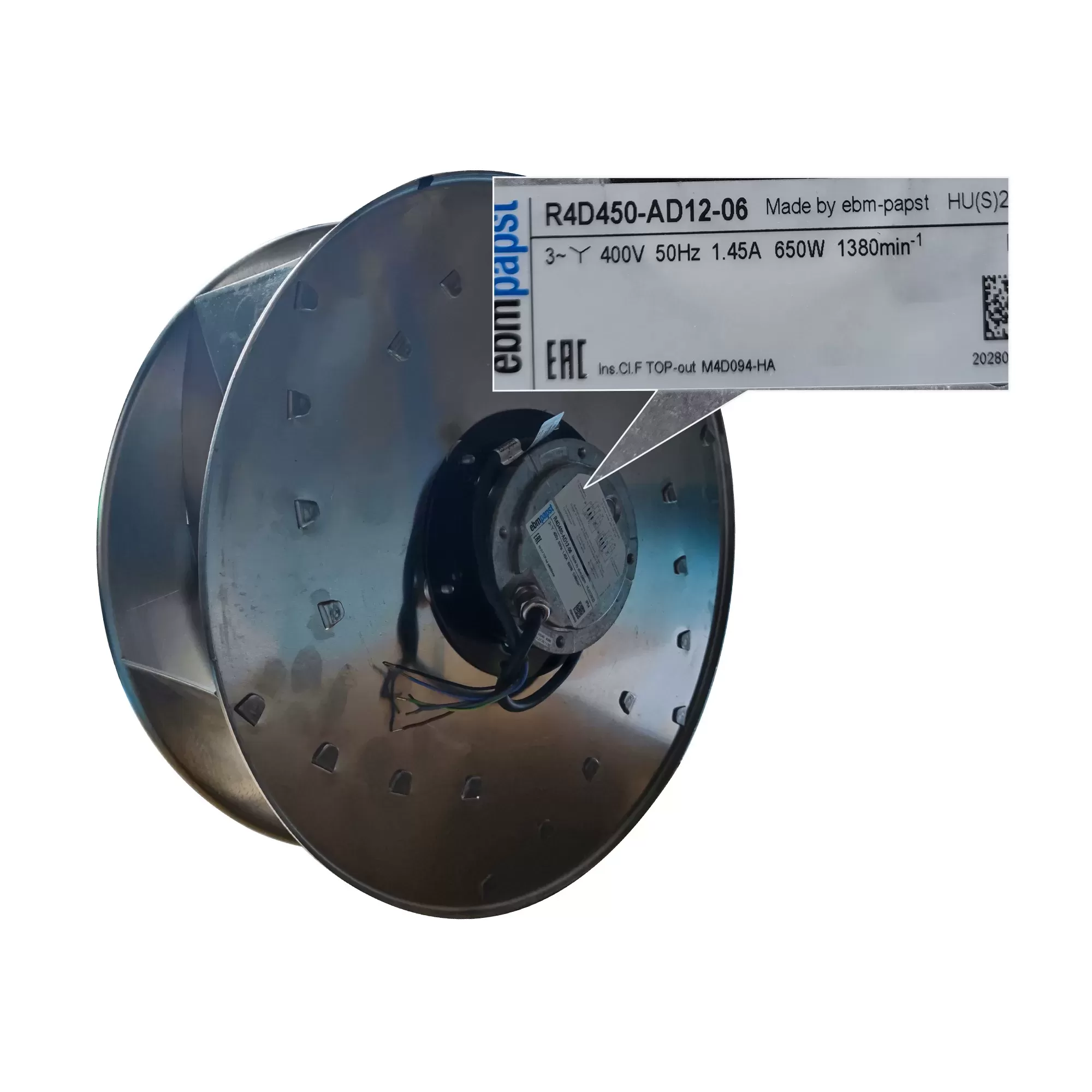

The ebmpapst R4D450-AD12-06 stands as a robust centrifugal fan, engineered for high-performance air handling in complex industrial and commercial ventilation systems. This impressive unit features a 450mm diameter impeller, providing substantial airflow while operating quietly for its capacity. It runs on a 400 VAC, 3-phase power supply, consuming 650W of power and drawing 1.45A of current. The fan achieves a consistent speed of 1380 RPM, ensuring effective air displacement. Built with durable ball bearings and possessing an IP54 protection class, it offers excellent reliability and a long operational lifespan, making it suitable for integration into sophisticated air conditioning units, rail transport systems, and other large-scale applications where precise air movement and durability are paramount.
R4D450-AD12-06 Fan Parameters
Model: R4D450-AD12-06
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-curved impeller)
Impeller Diameter: 450mm
Rated Voltage: 400 VAC
Phase: 3~ (Three-phase)
Frequency: 50 Hz
Rated Current: 1.45A
Power Consumption: 650 W
Speed: 1380 RPM
Operating Temperature: -40°C to +45°C
Protection Class: IP54
Bearing Type: Ball Bearing
Motor: M4D094-HA (External rotor motor)
Termination: Terminal box
Weight: 9.2 kg
Application: High-voltage inverter cooling, rail traffic systems, HVAC units, industrial ventilation.
