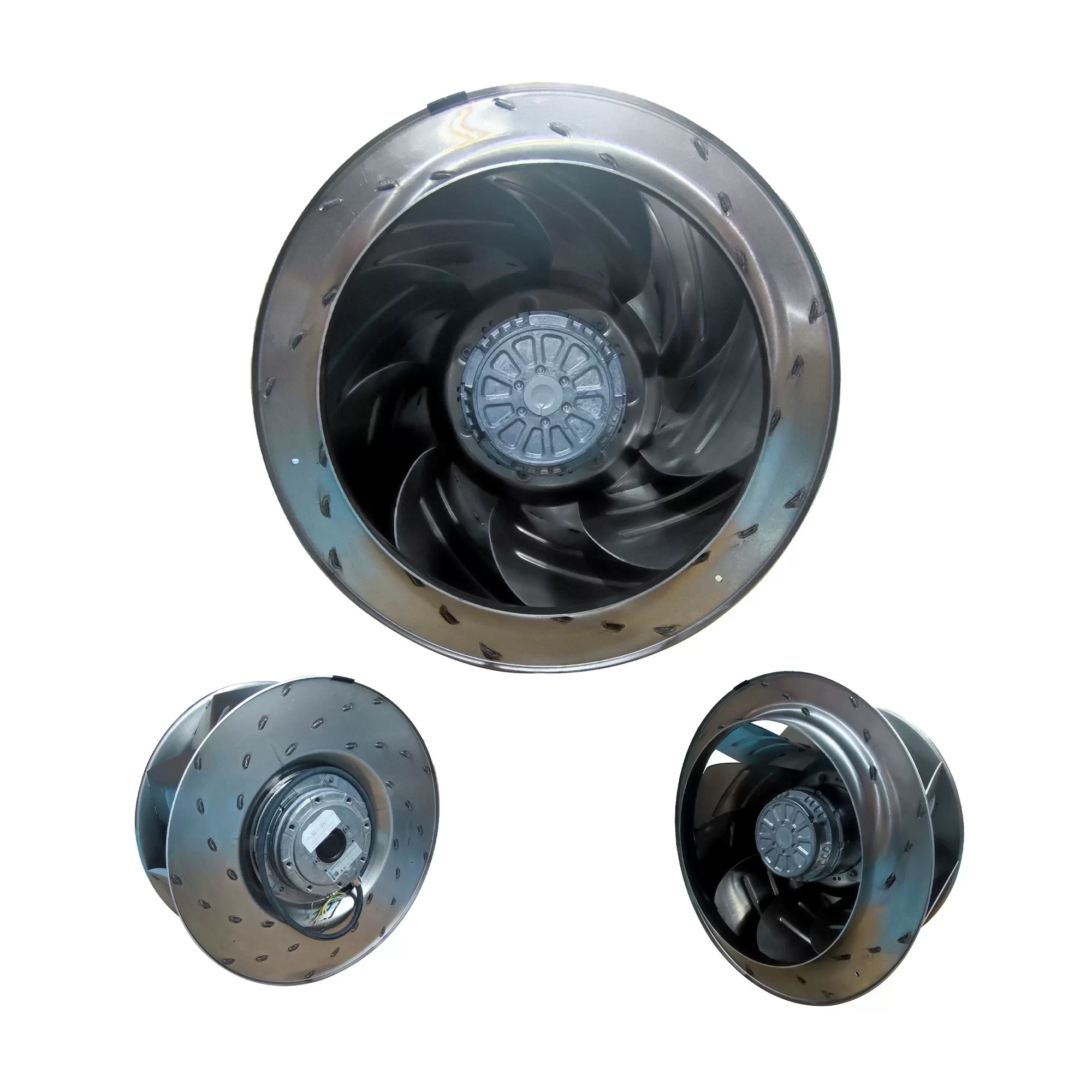

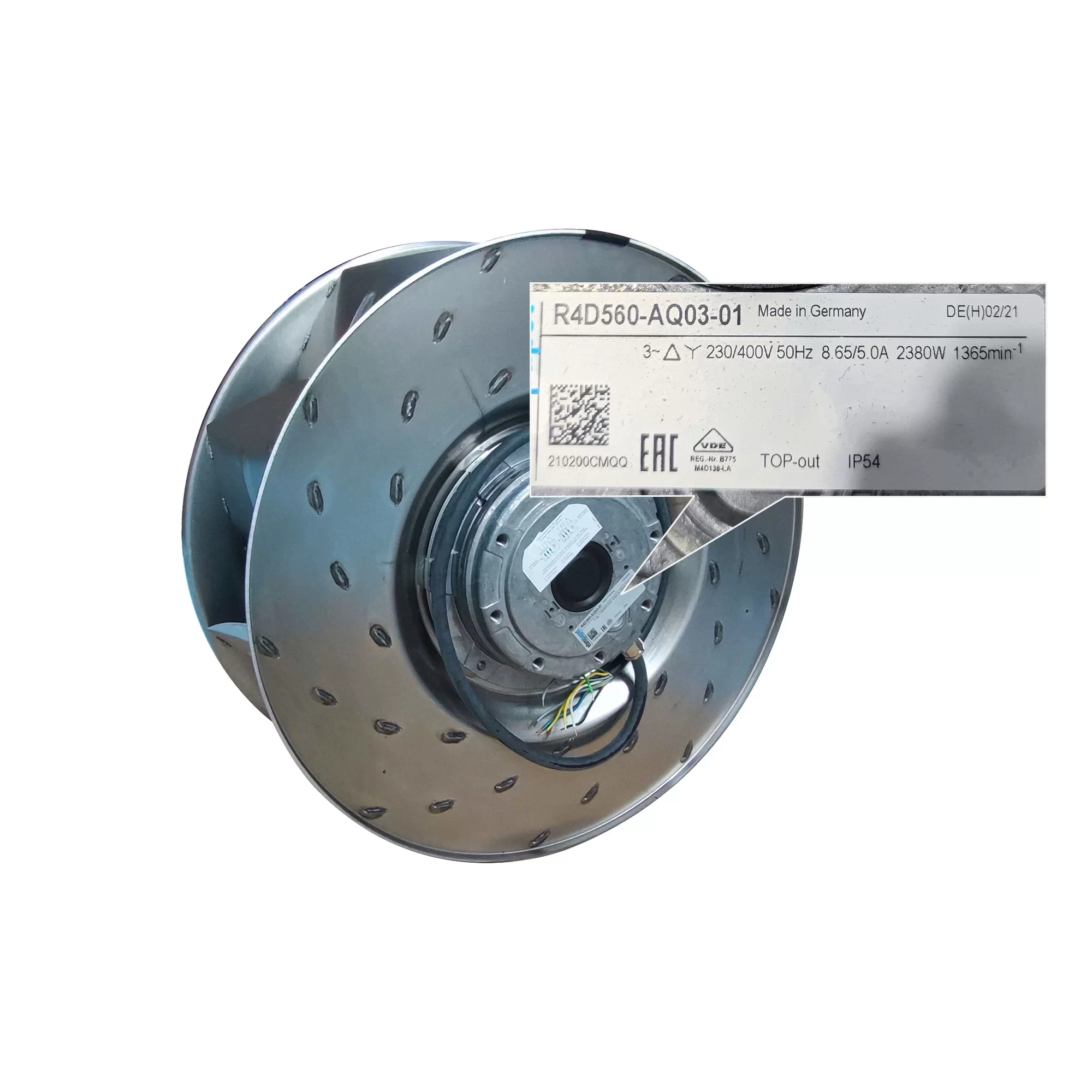

R4D560-AQ03-01 ebmpapst 230/400V AC Centrifugal Fan

Description

The ebmpapst R4D560-AQ03-01 is a high-performance 230/400V AC Centrifugal Fan with a diameter of 560 mm, specifically engineered for demanding industrial applications. This fan operates on 230V AC at a 50Hz frequency, with a rated current of 8.65A, consuming 2380W of power, and achieving a speed of 1365 RPM to deliver a powerful airflow of 10210 m³/h. At a 60Hz frequency, it operates on 400V AC with a rated current of 5.0A, maintaining a power consumption of 2380W. The R4D560-AQ03-01 features a robust design with an IP54 protection class, making it suitable for high-voltage cabinets, industrial refrigeration systems, and other large-scale equipment requiring efficient and reliable ventilation.

R4D560-AQ03-01 Fan Parameters
Model: R4D560-AQ03-01
Manufacturer: ebmpapst
Type: AC Centrifugal Fan
Dimensions: 560 mm
Nominal Voltage: 230/400 V AC
Frequency: 50/60 Hz
Rated Current (50/60 Hz): 8.65 A (230V) / 5.0 A (400V)
Power Consumption: 2380 W
Speed (50 Hz): 1365 RPM
Airflow (50 Hz): 10210 m³/h
Ambient Temperature: -40 to 60 °C
Protection Class: IP54
Application: High-voltage cabinets, industrial refrigeration systems, and large-scale ventilation equipment.
