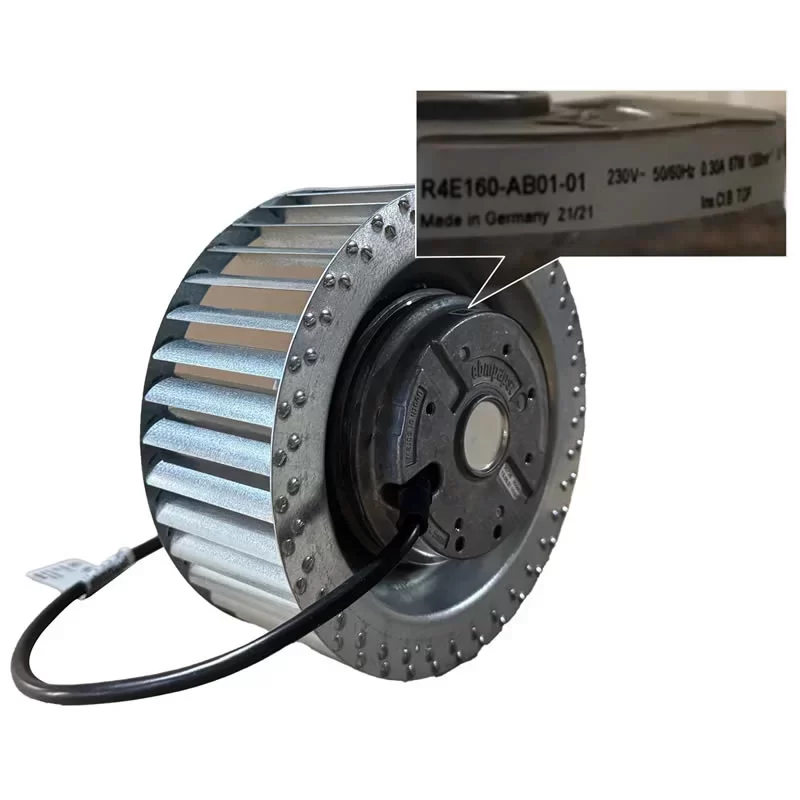

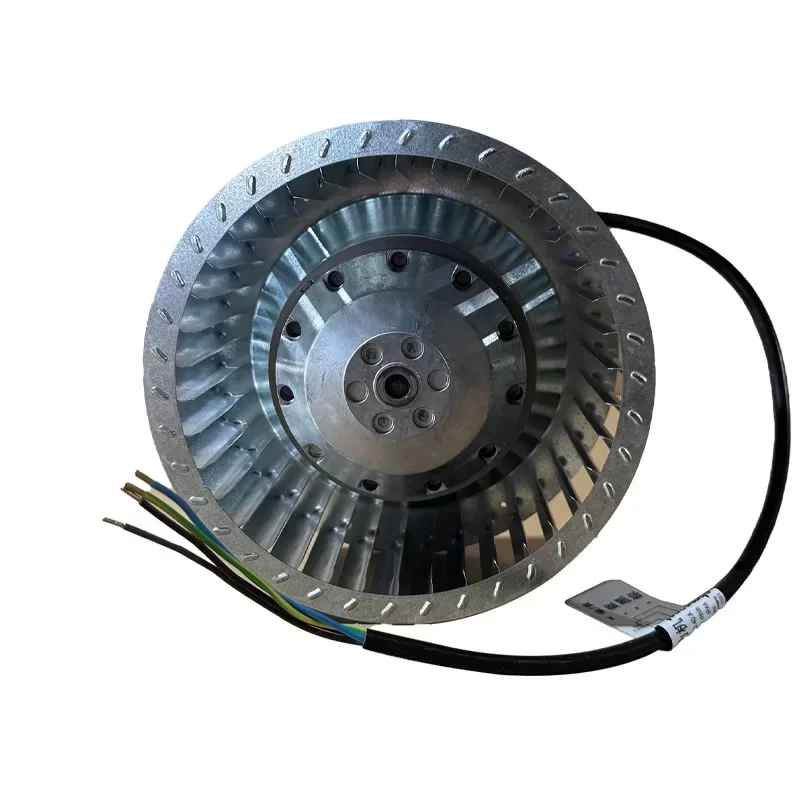

R4E160-AB01-01 ebmpapst 230V 160mm AC Centrifugal Fan

Description

The ebmpapst R4E160-AB01-01 is a robust 230 V single-phase AC centrifugal fan featuring a 160 mm backward-curved impeller constructed from galvanized sheet steel for enhanced durability. Powered by the M4E068-CF external rotor motor, this unit is engineered for reliable air displacement in high-pressure environments, delivering speeds up to 1400 RPM. Designed for versatile S1 continuous operation, it features a compact design with an internal thermal overload protector and maintenance-free ball bearings. This fan is an ideal thermal management solution for industrial ventilation and cooling applications, maintaining high performance across a wide ambient temperature range from -25 °C up to 65 °C.

R4E160-AB01-01 Fan Parameters
Model Number: R4E160-AB01-01
Manufacturer: ebmpapst
Motor Model: M4E068-CF
Series: AC Centrifugal Series
Type: AC Centrifugal Fan (Backward-Curved)
Impeller Size: 160 mm
Dimensions: 160 x 160 x 62 mm
Bearing Type: Ball Bearing
Nominal Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Frequency: 50 / 60 Hz
Weight: 1.7 kg
Input Power: 67 W (50 Hz) / 90 W (60 Hz)
Nominal Current: 0.3 A (50 Hz) / 0.4 A (60 Hz)
Starting Current: 0.46 A
Speed: 1300 RPM (50 Hz) / 1400 RPM (60 Hz)
Motor Capacitor: 2 µF / 450 VDB (P0 CE standard)
Motor Design: Single-phase External Rotor Motor (PSC)
Motor Protection: Thermal overload protector (TOP) wired internally
Insulation Class: Class B
Touch Current: < 0.75 mA Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min) Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inAq) Material of Impeller: Sheet steel, galvanised Direction of Rotation: Clockwise, seen on rotor Mounting Position: Any Condensate Discharge Holes: None Mode of Operation: S1 (Continuous operation) Humidity Class: F0 Degree of Protection: IP44 Operating Temperature: -25 - +65 °C Standard Compliance: EN 60335-1, CE Application The ebmpapst R4E160-AB01-01 centrifugal fan is primarily utilized in electronic cabinet cooling, small air handling units, laboratory equipment ventilation, cleanroom filter units, and compact HVAC systems.
