Description
The ebmpapst R4E310-AP11-09/F01 is a 310mm AC centrifugal fan specifically engineered for high-performance air purification and industrial ventilation systems, including FFU (Fan Filter Unit) applications. Operating on a single-phase 230V AC (50/60Hz) power supply, this fan draws 0.52A (50Hz) or 0.70A (60Hz) of current, consuming 115W (50Hz) or 160W (60Hz). It achieves rotational speeds of 1390 RPM (50Hz) or 1580 RPM (60Hz) and delivers an airflow of 1120 m³/h. Constructed with a durable sheet aluminum impeller and robust ball bearings, this model features an IP44 protection rating and includes an internal motor capacitor. Its reliable performance makes it ideal for cleanrooms, charging pile cooling, and general industrial air handling.
Model Number: R4E310-AP11-09/F01
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-Curved Motorized Impeller)
Impeller Diameter: 310mm
Rated Voltage: 230 VAC, 1-phase
Frequency: 50 Hz / 60 Hz
Rated Current: 0.52A (50Hz) / 0.70A (60Hz)
Rated Power: 115 W (50Hz) / 160 W (60Hz)
Speed: 1390 RPM (50Hz) / 1580 RPM (60Hz)
Airflow: 1120 m³/h
Static Pressure: 175 Pa (at 1325 RPM)
Noise Level: 69 dB(A)
Bearing Type: Ball Bearing
IP Rating: IP44
Impeller Material: Sheet aluminum
Motor Type: M4E074-DF
Weight: 3.8 kg
Operating Temperature: -25°C to +65°C
Electrical Connection: 6 wires

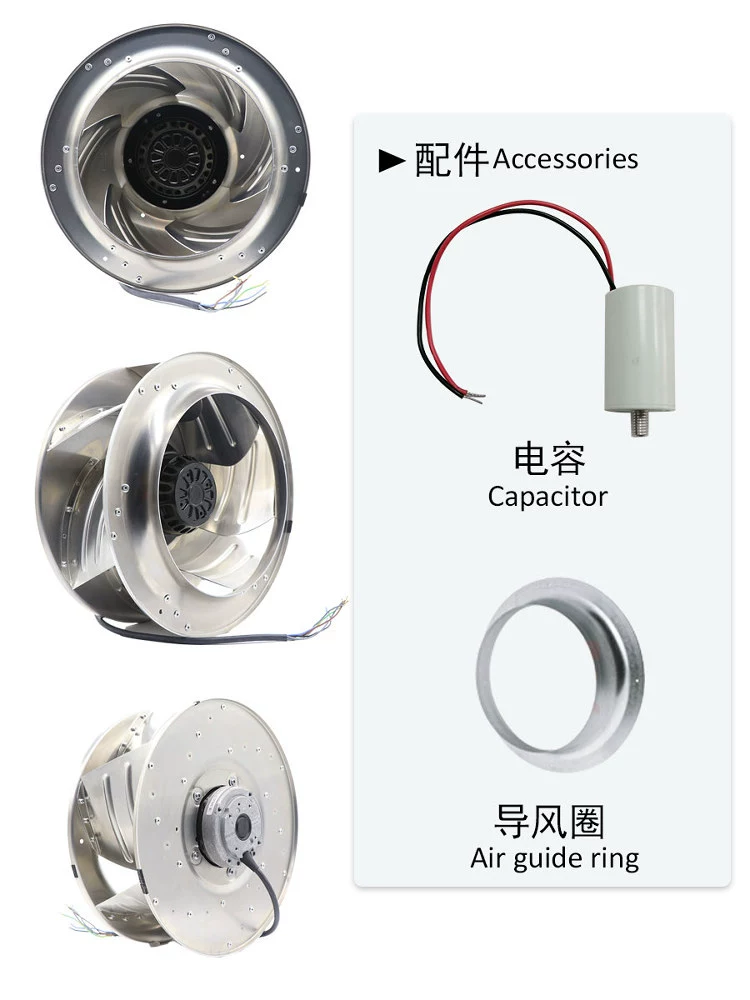

Features: Internal Motor Capacitor, Thermal Overload Protection
Application: FFU purification equipment, cleanrooms, air purification, industrial ventilation, charging pile cooling, general industry.
